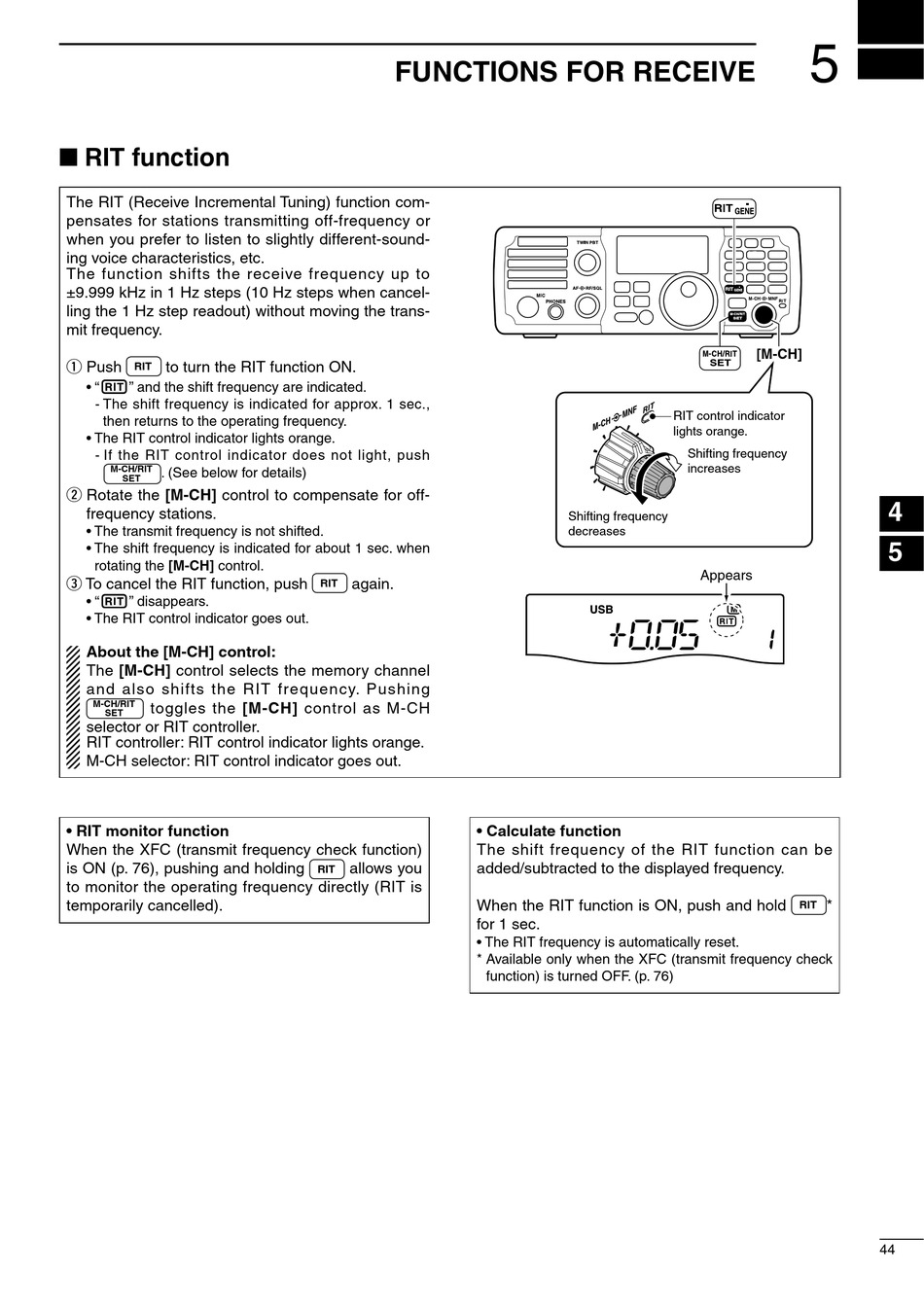

■ RIT function

The RIT (Receive Incremental Tuning) function com-
pensates for stations transmitting off-frequency or
when you prefer to listen to slightly different-sound-
ing voice characteristics, etc.
The function shifts the receive frequency up to
±9.999 kHz in 1 Hz steps (10 Hz steps when cancel-
ling the 1 Hz step readout) without moving the trans-
mit frequency.
q Push to turn the RIT function ON.
RIT
• " " and the shift frequency are indicated.
- The shift frequency is indicated for approx. 1 sec.,
then returns to the operating frequency.
• The RIT control indicator lights orange.
- If the RIT control indicator does not light, push
M-CH/RIT
. (See below for details)
SET
w Rotate the [M-CH] control to compensate for off-
frequency stations.
• The transmit frequency is not shifted.
• The shift frequency is indicated for about 1 sec. when
rotating the [M-CH] control.
e To cancel the RIT function, push
• " " disappears.
• The RIT control indicator goes out.
About the [M-CH] control:
The [M-CH] control selects the memory channel
and also shifts the RIT frequency. Pushing
M-CH/RIT toggles the [M-CH] control as M-CH
SET
selector or RIT controller.
RIT controller: RIT control indicator lights orange.
M-CH selector: RIT control indicator goes out.
• RIT monitor function
When the XFC (transmit frequency check function)
is ON (p. 76), pushing and holding
to monitor the operating frequency directly (RIT is
temporarily cancelled).

FUNCTIONS FOR RECEIVE

again.
RIT
• Calculate function
The shift frequency of the RIT function can be
allows you added/subtracted to the displayed frequency.
RIT
When the RIT function is ON, push and hold
for 1 sec.
• The RIT frequency is automatically reset.
* Available only when the XFC (transmit frequency check
function) is turned OFF. (p. 76)
NB
V/M 1
1.8
4
MW
10
7
COMP
21
.
MODE TS
RIT
GENE
TUNER FILTER
P.AMP
ATT
M-CH/RIT
SPCH
SET
RIT control indicator
lights orange.
Shifting frequency
increases
Shifting frequency
decreases
Appears
5
ANF
NR
METER
2
A/B 3
SPLIT
= 3.5 7
5 6
M-CL AGC
14 18
8 9
SCAN VOX
24 28
0 F-INP ENT
MNF
50
BAND
[M-CH]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
*
RIT
15
16
17
18
19
20
21
44
