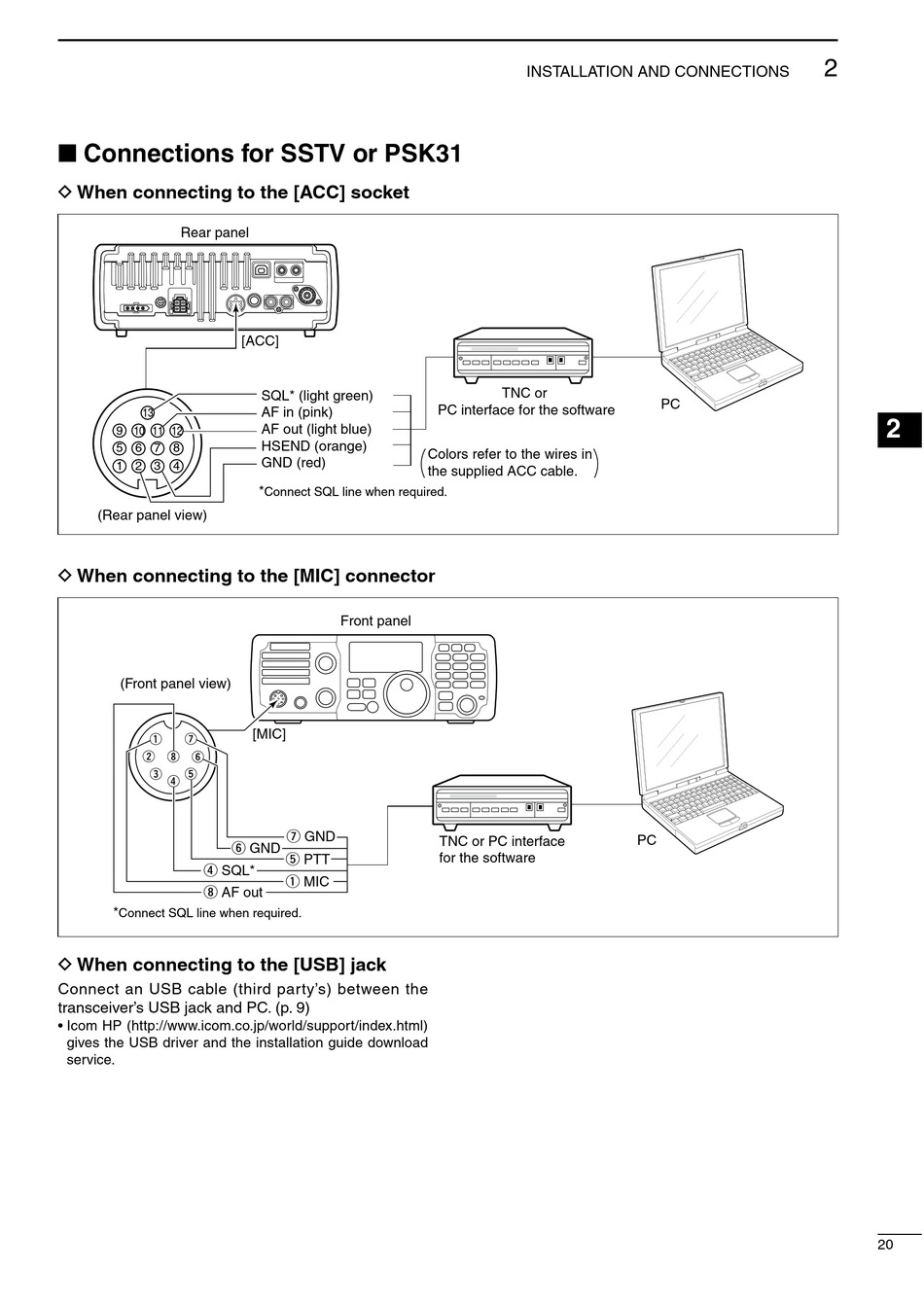

■ Connections for SSTV or PSK31

D When connecting to the [ACC] socket

Rear panel
13
9 10 11 12
5 6 7 8
1 2 3 4
(Rear panel view)

D When connecting to the [MIC] connector

(Front panel view)
y GND
r SQL*
i AF out
*
Connect SQL line when required.

D When connecting to the [USB] jack

Connect an USB cable (third party's) between the
transceiver's USB jack and PC. (p. 9)
• Icom HP (http://www.icom.co.jp/world/support/index.html)
gives the USB driver and the installation guide download
service.
[ACC]
SQL* (light green)
AF in (pink)
AF out (light blue)
HSEND (orange)
GND (red)
*
Connect SQL line when required.
Front panel
[MIC]
u GND
t PTT
q MIC

INSTALLATION AND CONNECTIONS

TNC or
PC interface for the software
Colors refer to the wires in
the supplied ACC cable.
TNC or PC interface
for the software
PC
PC
