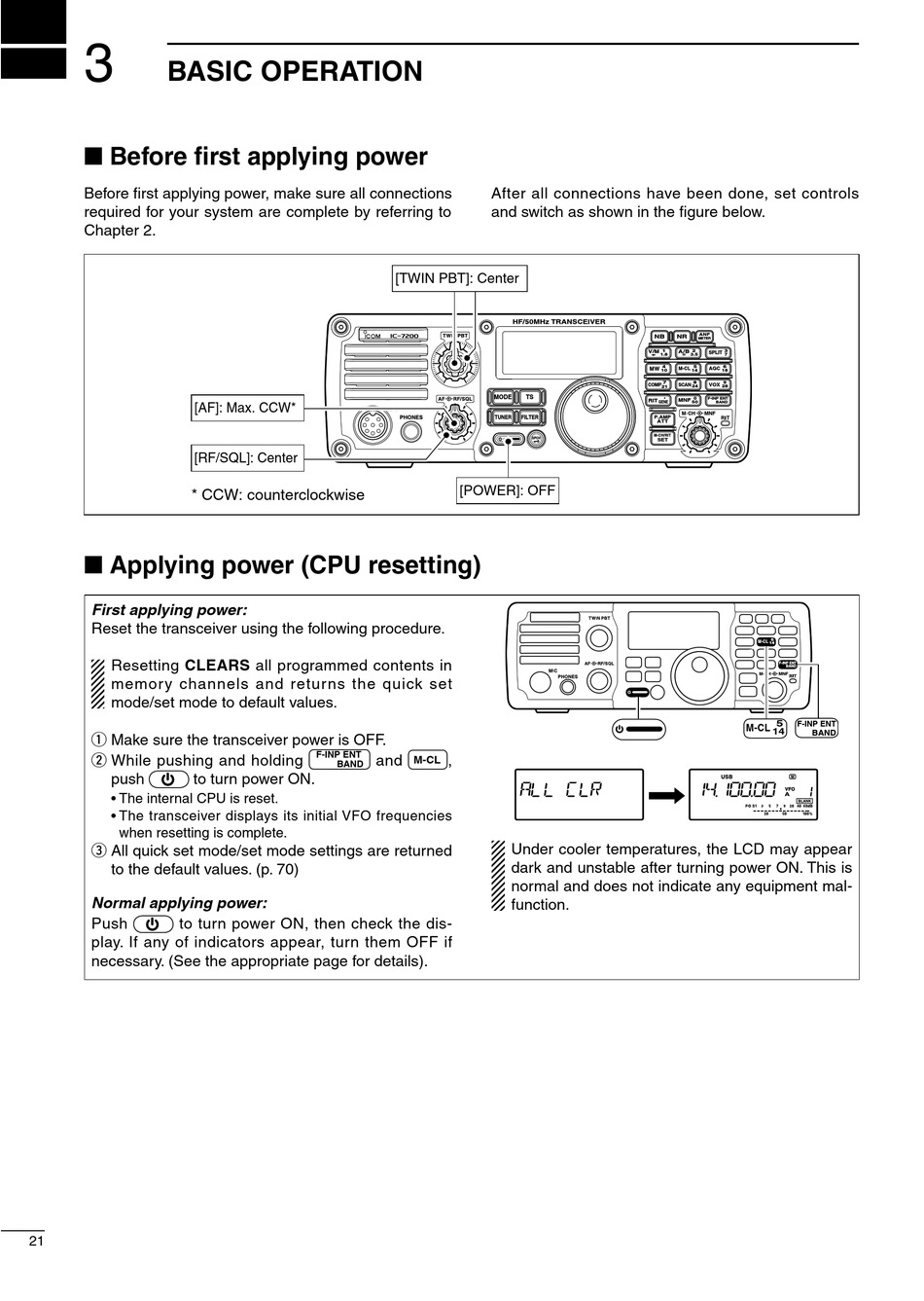

BASIC OPERATION

■ Before first applying power

Before first applying power, make sure all connections
required for your system are complete by referring to
Chapter 2.
[AF]: Max. CCW*
[RF/SQL]: Center
* CCW: counterclockwise

■ Applying power (CPU resetting)

First applying power:
Reset the transceiver using the following procedure.
Resetting CLEARS all programmed contents in
memory channels and returns the quick set
mode/set mode to default values.
q Make sure the transceiver power is OFF.
w While pushing and holding
push to turn power ON.
• The internal CPU is reset.
• The transceiver displays its initial VFO frequencies
when resetting is complete.
e All quick set mode/set mode settings are returned
to the default values. (p. 70)
Normal applying power:
Push to turn power ON, then check the dis-
play. If any of indicators appear, turn them OFF if
necessary. (See the appropriate page for details).
21
[TWIN PBT]: Center
i7200
[POWER]: OFF
F-INP ENT
and ,
M-CL
BAND
After all connections have been done, set controls
and switch as shown in the figure below.
NB
V/M 1
1.8
4
MW
10
7
COMP
21
.
MODE TS
RIT
GENE
TUNER FILTER P.AMP
ATT
M-CH/RIT
SPCH
SET
MODE TS
TUNER FILTER
SPCH
Under cooler temperatures, the LCD may appear
dark and unstable after turning power ON. This is
normal and does not indicate any equipment mal-
function.
