4
RECEIVE AND TRANSMIT

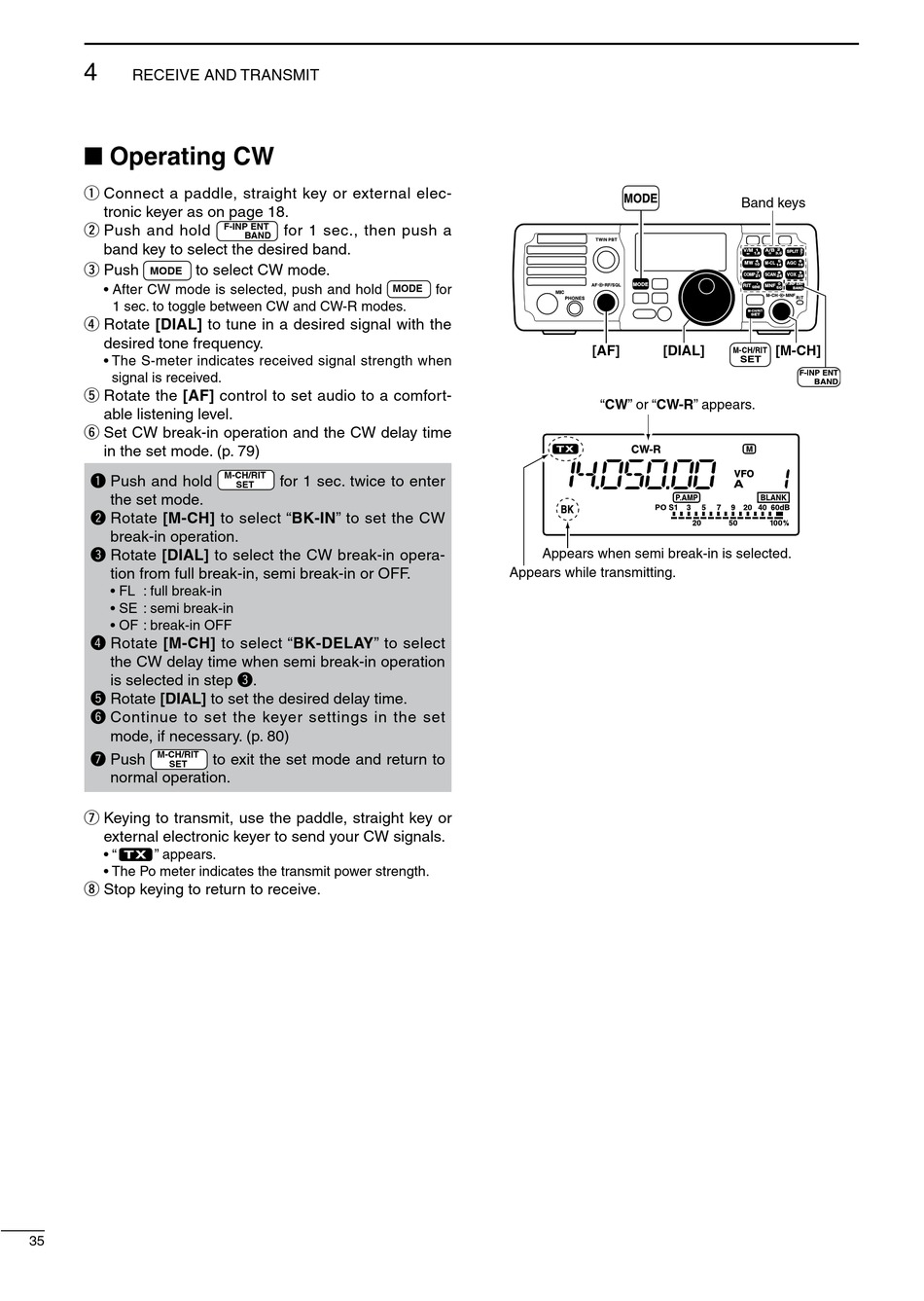

■ Operating CW

q Connect a paddle, straight key or external elec-
tronic keyer as on page 18.
w Push and hold
band key to select the desired band.
e Push to select CW mode.
MODE
• After CW mode is selected, push and hold
1 sec. to toggle between CW and CW-R modes.
r Rotate [DIAL] to tune in a desired signal with the
desired tone frequency.
• The S-meter indicates received signal strength when
signal is received.
t Rotate the [AF] control to set audio to a comfort-
able listening level.
y Set CW break-in operation and the CW delay time
in the set mode. (p. 79)
q Push and hold
the set mode.
w Rotate [M-CH] to select "BK-IN" to set the CW
break-in operation.
e Rotate [DIAL] to select the CW break-in opera-
tion from full break-in, semi break-in or OFF.
• FL : full break-in
• SE : semi break-in
• OF : break-in OFF
r Rotate [M-CH] to select "BK-DELAY" to select
the CW delay time when semi break-in operation
is selected in step e.
t Rotate [DIAL] to set the desired delay time.
y Continue to set the keyer settings in the set
mode, if necessary. (p. 80)
M-CH/RIT
u Push
SET
normal operation.
u Keying to transmit, use the paddle, straight key or
external electronic keyer to send your CW signals.
• " " appears.
• The Po meter indicates the transmit power strength.
i Stop keying to return to receive.
35
F-INP ENT for 1 sec., then push a
BAND
M-CH/RIT
for 1 sec. twice to enter
SET
to exit the set mode and return to
for
MODE
Appears when semi break-in is selected.
Appears while transmitting.
Band keys
NR
NB
1 A/B
V/M
1.8
4
MW M-CL
10
7
COMP SCAN
21
.
MODE TS
RIT MNF
GENE
TUNER FILTER
P.AMP
ATT
SPCH M-CH/RIT
SET
[AF] [DIAL]
"CW" or "CW-R" appears.
ANF
METER
2 3
SPLIT
=
3.5 7
5 6
AGC
14 18
8 9
VOX
24 28
0 F-INP ENT
50
BAND
[M-CH]
