6
FUNCTIONS FOR TRANSMIT

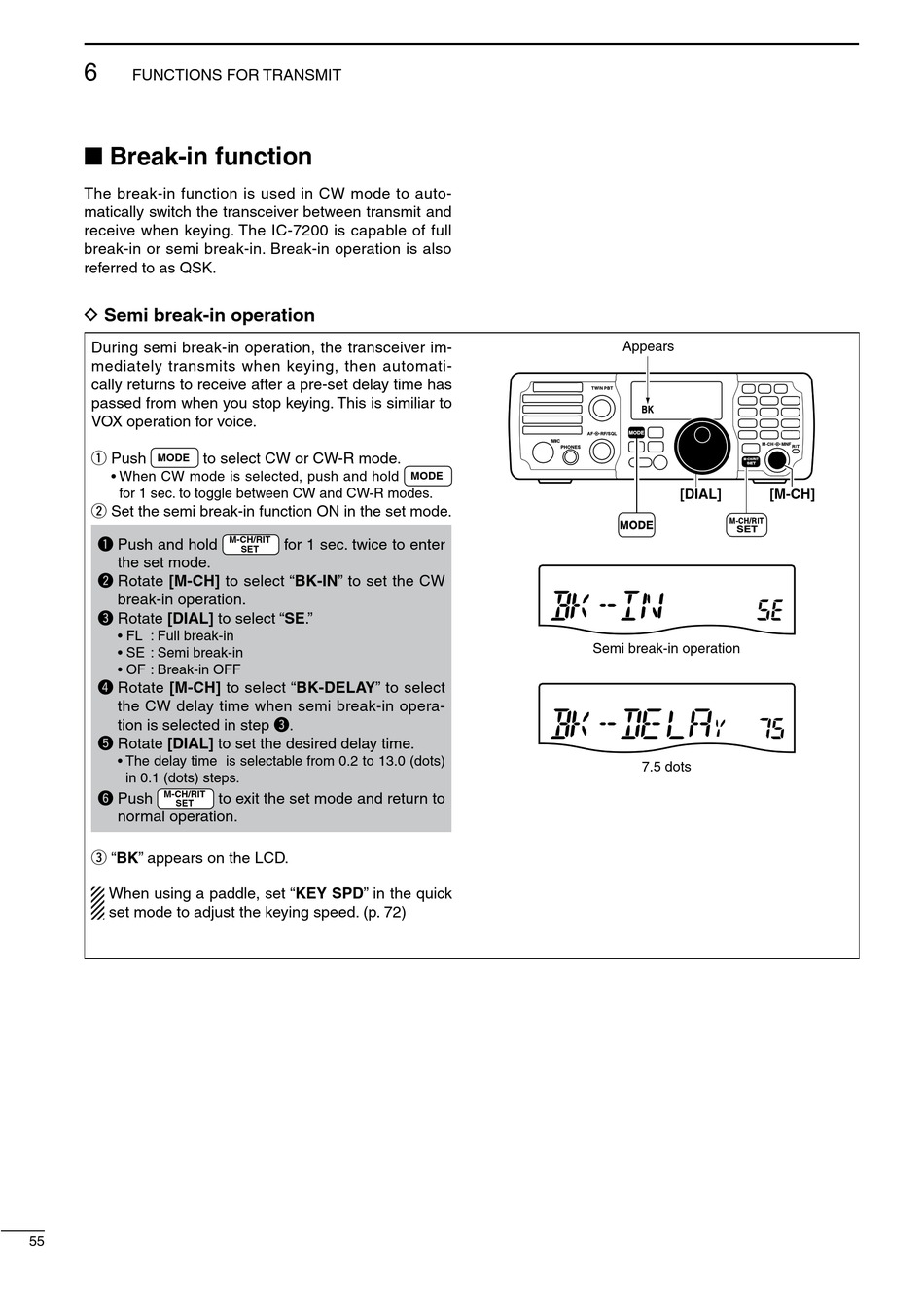

■ Break-in function

The break-in function is used in CW mode to auto-
matically switch the transceiver between transmit and
receive when keying. The IC-7200 is capable of full
break-in or semi break-in. Break-in operation is also
referred to as QSK.

D Semi break-in operation

During semi break-in operation, the transceiver im-
mediately transmits when keying, then automati-
cally returns to receive after a pre-set delay time has
passed from when you stop keying. This is similiar to
VOX operation for voice.
q Push to select CW or CW-R mode.
MODE
• When CW mode is selected, push and hold
for 1 sec. to toggle between CW and CW-R modes.
w Set the semi break-in function ON in the set mode.
q Push and hold
the set mode.
w Rotate [M-CH] to select "BK-IN" to set the CW
break-in operation.
e Rotate [DIAL] to select "SE."
• FL : Full break-in
• SE : Semi break-in
• OF : Break-in OFF
r Rotate [M-CH] to select "BK-DELAY" to select
the CW delay time when semi break-in opera-
tion is selected in step e.
t Rotate [DIAL] to set the desired delay time.
• The delay time is selectable from 0.2 to 13.0 (dots)
in 0.1 (dots) steps.
M-CH/RIT
y Push
SET
normal operation.
e "BK" appears on the LCD.
When using a paddle, set "KEY SPD" in the quick
set mode to adjust the keying speed. (p. 72)
55
M-CH/RIT
for 1 sec. twice to enter
SET
to exit the set mode and return to
MODE
Appears
NB NR
V/M 1 A/B
1.8 =
4
MW M-CL
10
7
COMP SCAN
21
.
MODE TS
MNF
RIT
GENE
TUNER FILTER
P.AMP
ATT
M-CH/RIT
SPCH
SET
[DIAL]
Semi break-in operation
7.5 dots
ANF
METER
2 3
SPLIT
3.5 7
5 6
AGC
14 18
8 9
VOX
24 28
0
F-INP ENT
50 BAND
[M-CH]
