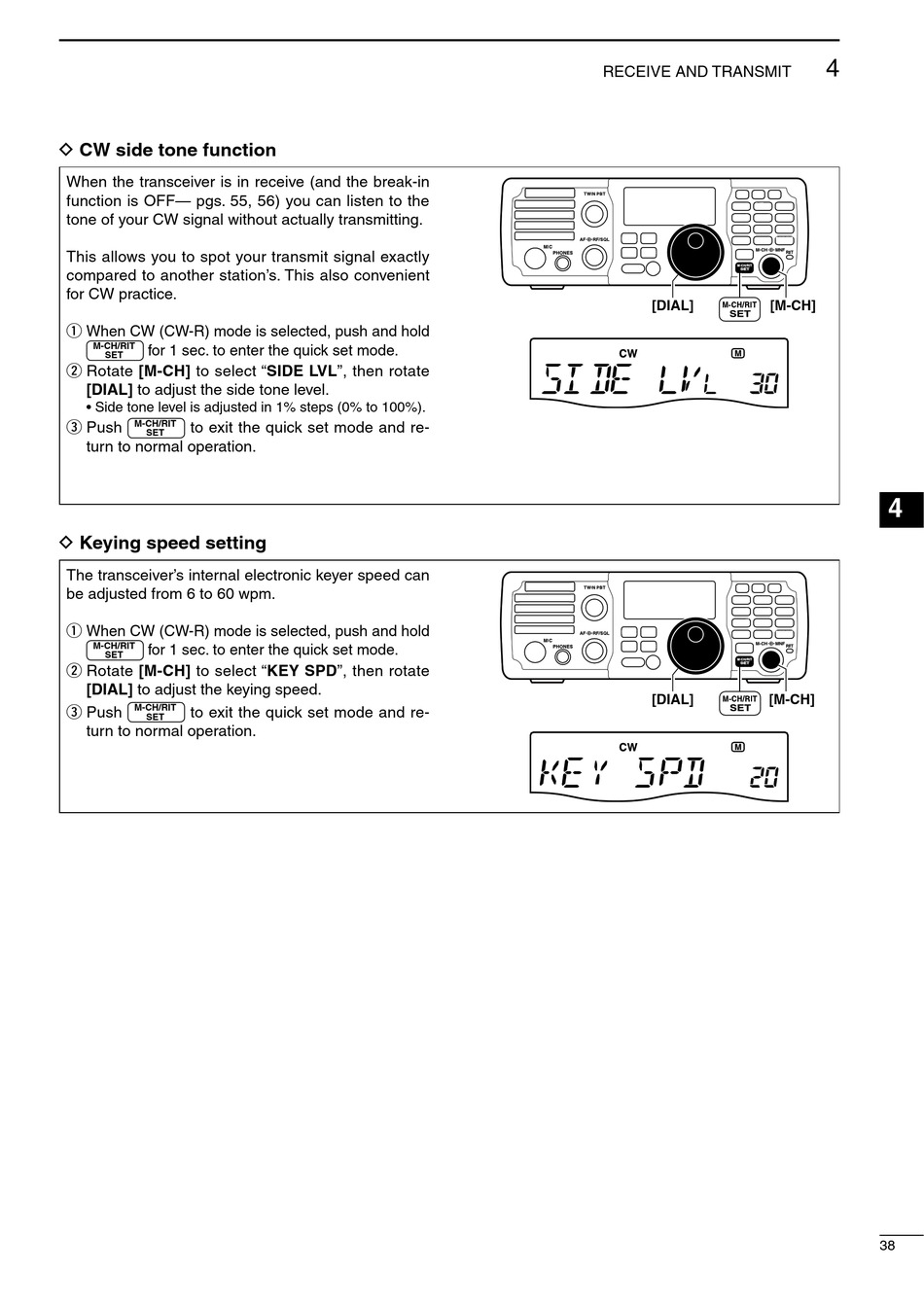

D CW side tone function

When the transceiver is in receive (and the break-in
function is OFF— pgs. 55, 56) you can listen to the
tone of your CW signal without actually transmitting.
This allows you to spot your transmit signal exactly
compared to another station's. This also convenient
for CW practice.
q When CW (CW-R) mode is selected, push and hold
M-CH/RIT for 1 sec. to enter the quick set mode.
SET
w Rotate [M-CH] to select "SIDE LVL", then rotate
[DIAL] to adjust the side tone level.
• Side tone level is adjusted in 1% steps (0% to 100%).
M-CH/RIT
e Push to exit the quick set mode and re-
SET
turn to normal operation.

D Keying speed setting

The transceiver's internal electronic keyer speed can
be adjusted from 6 to 60 wpm.
q When CW (CW-R) mode is selected, push and hold
M-CH/RIT
for 1 sec. to enter the quick set mode.
SET
w Rotate [M-CH] to select "KEY SPD", then rotate
[DIAL] to adjust the keying speed.
M-CH/RIT
e Push to exit the quick set mode and re-
SET
turn to normal operation.
