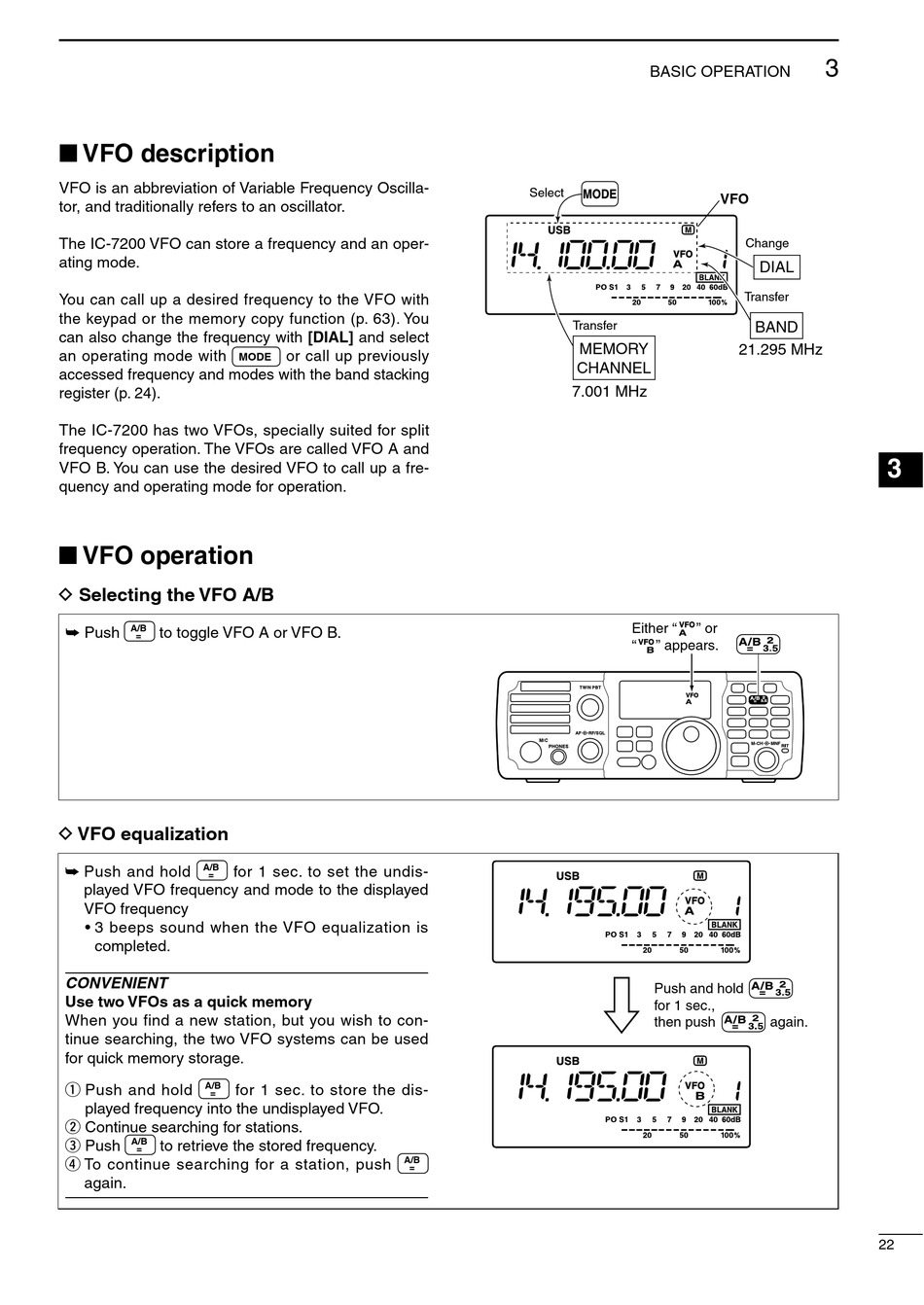

■ VFO description

VFO is an abbreviation of Variable Frequency Oscilla-
tor, and traditionally refers to an oscillator.
The IC-7200 VFO can store a frequency and an oper-
ating mode.
You can call up a desired frequency to the VFO with
the keypad or the memory copy function (p. 63). You
can also change the frequency with [DIAL] and select
an operating mode with
accessed frequency and modes with the band stacking
register (p. 24).
The IC-7200 has two VFOs, specially suited for split
frequency operation. The VFOs are called VFO A and
VFO B. You can use the desired VFO to call up a fre-
quency and operating mode for operation.

■ VFO operation

D Selecting the VFO A/B

A/B
➥ Push to toggle VFO A or VFO B.
=

D VFO equalization

A/B
➥ Push and hold
=
played VFO frequency and mode to the displayed
VFO frequency
• 3 beeps sound when the VFO equalization is
completed.
CONVENIENT
Use two VFOs as a quick memory
When you find a new station, but you wish to con-
tinue searching, the two VFO systems can be used
for quick memory storage.
A/B
q Push and hold
=
played frequency into the undisplayed VFO.
w Continue searching for stations.
e Push A/B to retrieve the stored frequency.
=
r To continue searching for a station, push
again.
or call up previously
MODE
for 1 sec. to set the undis-
for 1 sec. to store the dis-
A/B
Select
Transfer
MEMORY
CHANNEL
7.001 MHz
=
