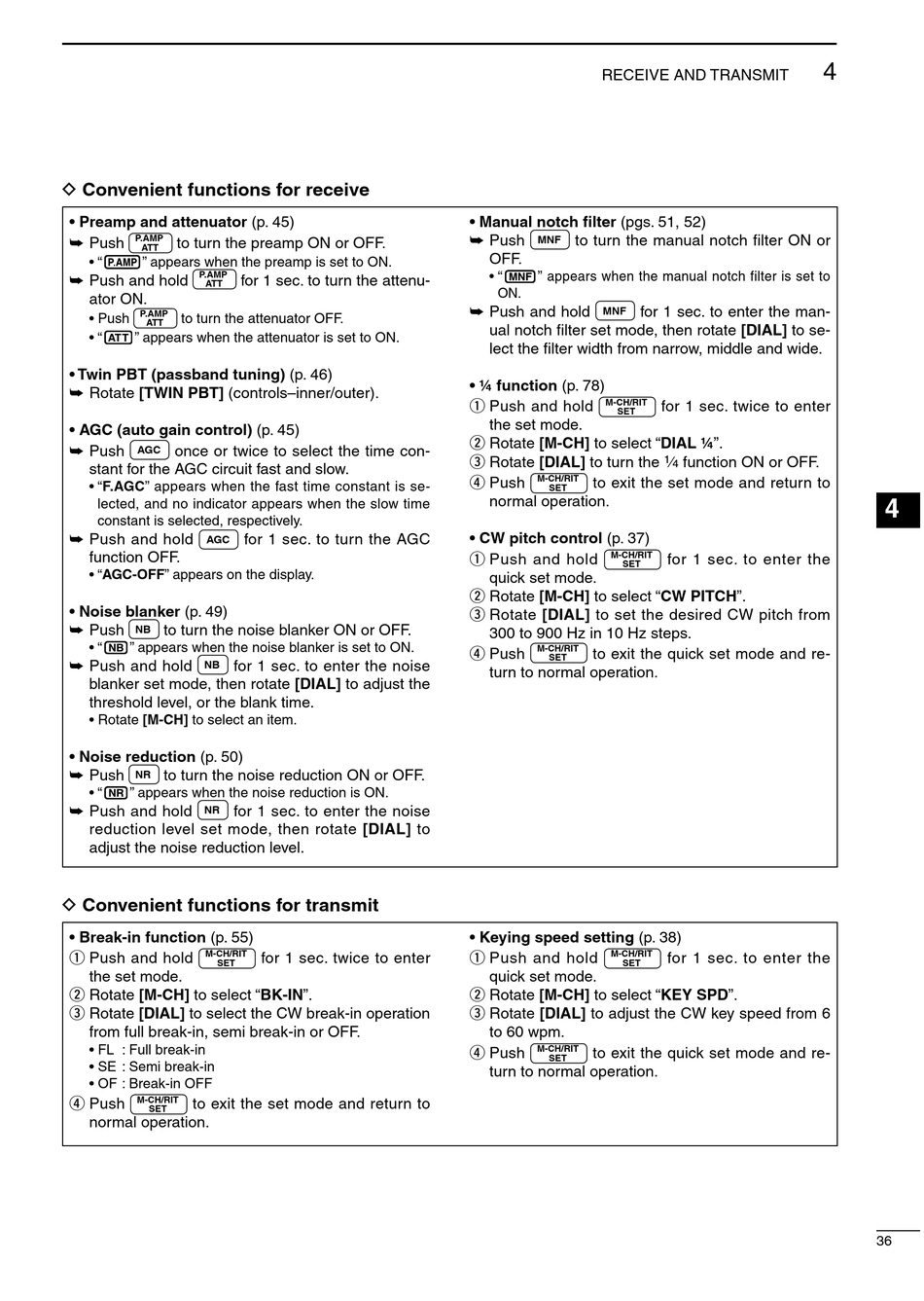

D Convenient functions for receive

• Preamp and attenuator (p. 45)
P.AMP
➥ Push to turn the preamp ON or OFF.
ATT
• " " appears when the preamp is set to ON.
P.AMP
➥ Push and hold
ATT
ator ON.
P.AMP
• Push to turn the attenuator OFF.
ATT
• " " appears when the attenuator is set to ON.
• Twin PBT (passband tuning) (p. 46)
➥ Rotate [TWIN PBT] (controls–inner/outer).
• AGC (auto gain control) (p. 45)
➥ Push once or twice to select the time con-
AGC
stant for the AGC circuit fast and slow.
• "F.AGC" appears when the fast time constant is se-
lected, and no indicator appears when the slow time
constant is selected, respectively.
➥ Push and hold
AGC
function OFF.
• "AGC-OFF" appears on the display.
• Noise blanker (p. 49)
➥ Push to turn the noise blanker ON or OFF.
NB
• " " appears when the noise blanker is set to ON.
➥ Push and hold for 1 sec. to enter the noise
NB
blanker set mode, then rotate [DIAL] to adjust the
threshold level, or the blank time.
• Rotate [M-CH] to select an item.
• Noise reduction (p. 50)
➥ Push to turn the noise reduction ON or OFF.
NR
• " " appears when the noise reduction is ON.
➥ Push and hold for 1 sec. to enter the noise
NR
reduction level set mode, then rotate [DIAL] to
adjust the noise reduction level.

D Convenient functions for transmit

• Break-in function (p. 55)
q Push and hold M-CH/RIT
SET
the set mode.
w Rotate [M-CH] to select "BK-IN".
e Rotate [DIAL] to select the CW break-in operation
from full break-in, semi break-in or OFF.
• FL : Full break-in
• SE : Semi break-in
• OF : Break-in OFF
M-CH/RIT
r Push to exit the set mode and return to
SET
normal operation.
for 1 sec. to turn the attenu-
for 1 sec. to turn the AGC
for 1 sec. twice to enter
RECEIVE AND TRANSMIT
• Manual notch filter (pgs. 51, 52)
➥ Push to turn the manual notch filter ON or
MNF
OFF.
• " " appears when the manual notch filter is set to
ON.
➥ Push and hold for 1 sec. to enter the man-
MNF
ual notch filter set mode, then rotate [DIAL] to se-
lect the filter width from narrow, middle and wide.
• ¼ function (p. 78)
M-CH/RIT
q Push and hold
SET
the set mode.
w Rotate [M-CH] to select "DIAL ¼".
e Rotate [DIAL] to turn the
M-CH/RIT
r Push to exit the set mode and return to
SET
normal operation.
• CW pitch control (p. 37)
M-CH/RIT
q Push and hold
SET
quick set mode.
w Rotate [M-CH] to select "CW PITCH".
e Rotate [DIAL] to set the desired CW pitch from
300 to 900 Hz in 10 Hz steps.
M-CH/RIT
r Push to exit the quick set mode and re-
SET
turn to normal operation.
• Keying speed setting (p. 38)
q Push and hold M-CH/RIT
SET
quick set mode.
w Rotate [M-CH] to select "KEY SPD".
e Rotate [DIAL] to adjust the CW key speed from 6
to 60 wpm.
r Push M-CH/RIT to exit the quick set mode and re-
SET
turn to normal operation.
