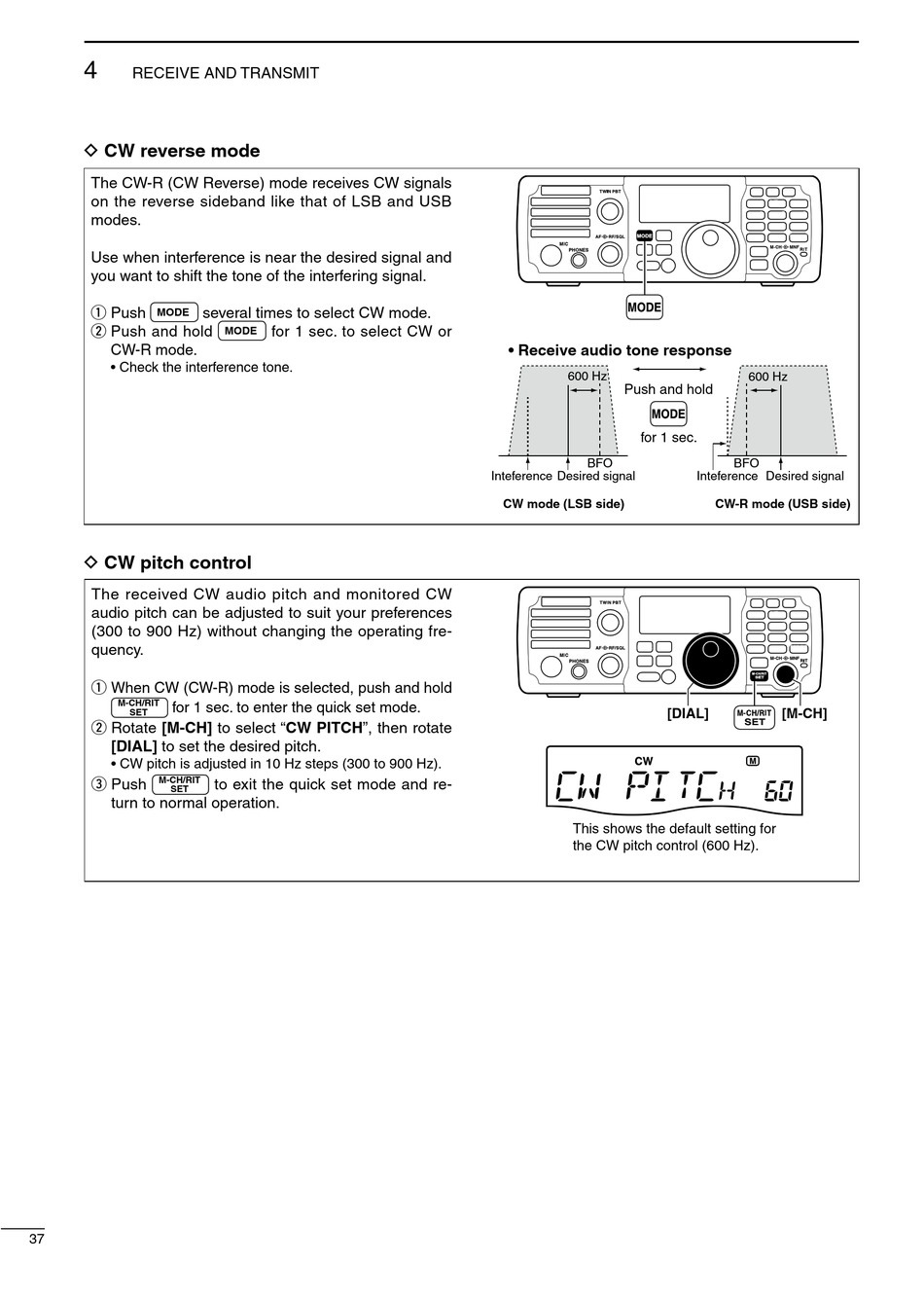

RECEIVE AND TRANSMIT

D CW reverse mode

The CW-R (CW Reverse) mode receives CW signals
on the reverse sideband like that of LSB and USB
modes.
Use when interference is near the desired signal and
you want to shift the tone of the interfering signal.
q Push several times to select CW mode.
MODE
w Push and hold
CW-R mode.
• Check the interference tone.

D CW pitch control

The received CW audio pitch and monitored CW
audio pitch can be adjusted to suit your preferences
(300 to 900 Hz) without changing the operating fre-
quency.
q When CW (CW-R) mode is selected, push and hold
M-CH/RIT for 1 sec. to enter the quick set mode.
SET
w Rotate [M-CH] to select "CW PITCH", then rotate
[DIAL] to set the desired pitch.
• CW pitch is adjusted in 10 Hz steps (300 to 900 Hz).
M-CH/RIT
e Push
SET
turn to normal operation.
