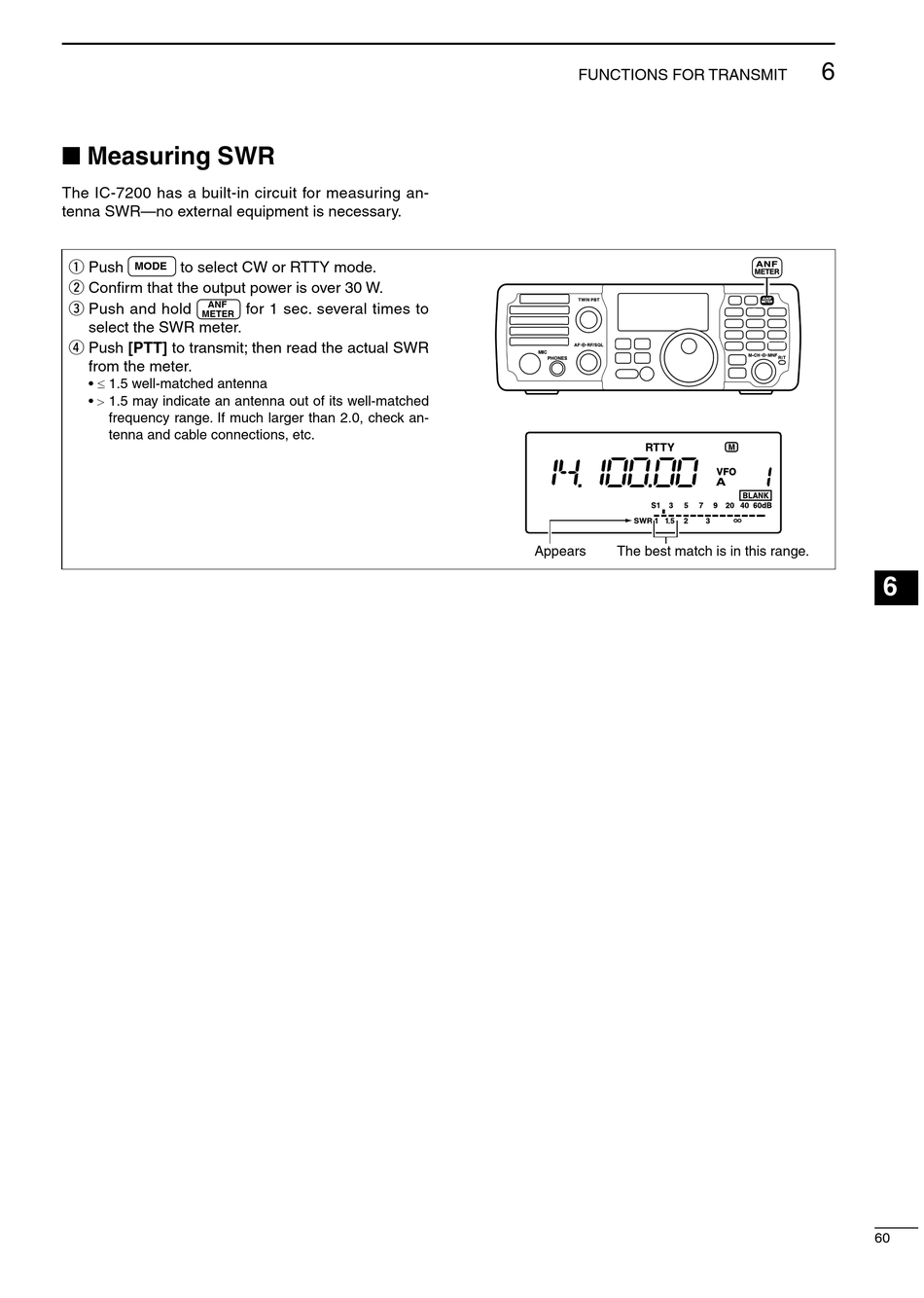

■ Measuring SWR

The IC-7200 has a built-in circuit for measuring an-
tenna SWR—no external equipment is necessary.
q Push to select CW or RTTY mode.
MODE
w Confirm that the output power is over 30 W.
ANF
e Push and hold
METER
select the SWR meter.
r Push [PTT] to transmit; then read the actual SWR
from the meter.
• ≤ 1.5 well-matched antenna
• > 1.5 may indicate an antenna out of its well-matched
frequency range. If much larger than 2.0, check an-
tenna and cable connections, etc.
for 1 sec. several times to

FUNCTIONS FOR TRANSMIT

MODE TS
TUNER FILTER
SPCH
Appears The best match is in this range.
