4 MergePoint Service Processor Manager SP53XX Installer/User Guide

MergePoint SP5324/SP5340 Appliance Configuration

MergePoint SP53XX Appliance (SP5340 Shown)
6

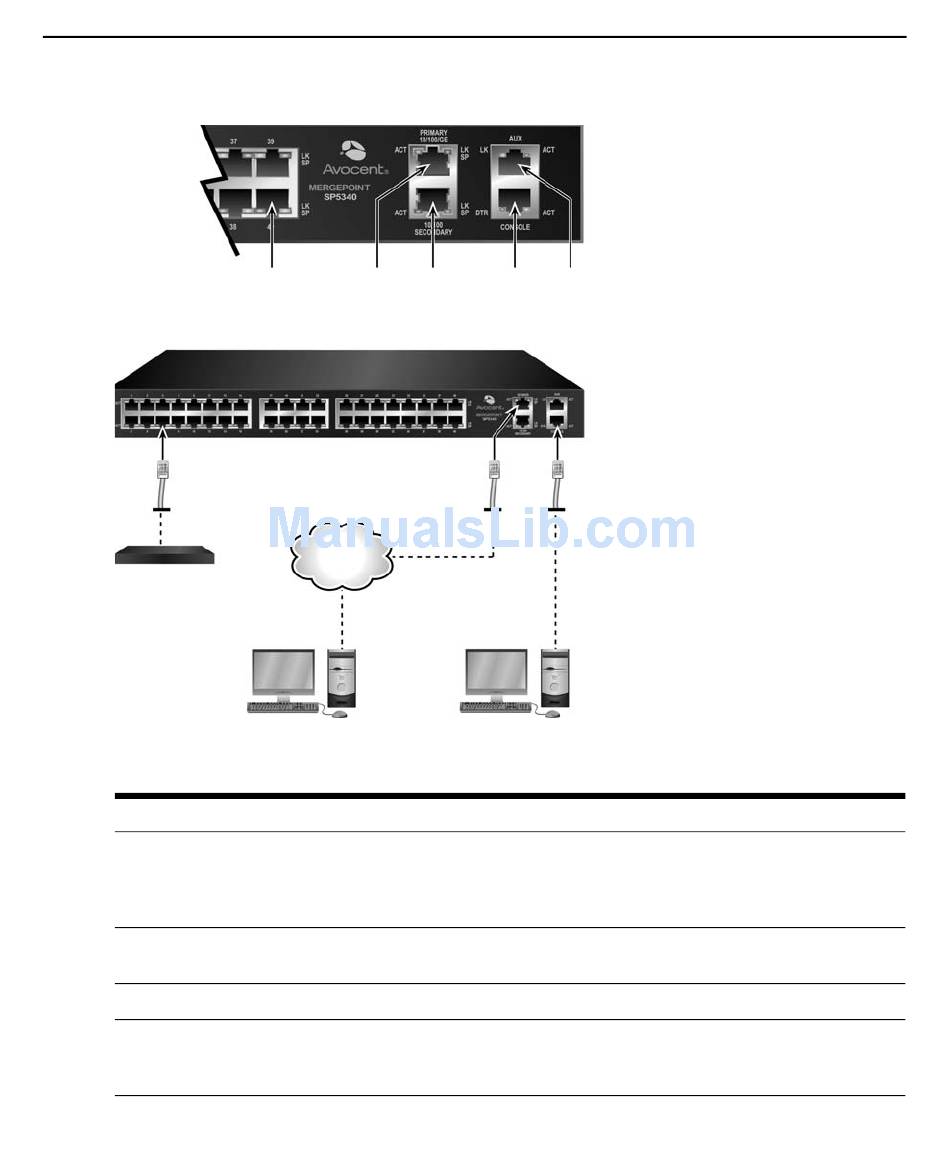

Figure 1.2: MergePoint SP5324/SP5340 Appliance Configuration

Table 1.2: Descriptions for MergePoint SP5324/SP5340 Appliance Configuration

Number Description
1 Private ethernet ports (24 or 40)
2 10/100/GE (Gigabit Ethernet) primary
public Ethernet port
3 Auxiliary (AUX) port (disabled)
4 Console port - For connecting either a
terminal or a computer running a terminal
emulation program
1 3
2
LAN
7
5
4
8
Number Description
5 10/100 secondary public Ethernet port -
(Optional) For connection to a second
network connection or for failover
connection to the primary network
6 Blade or service processor
7 Remote user web interface
8 Console user
