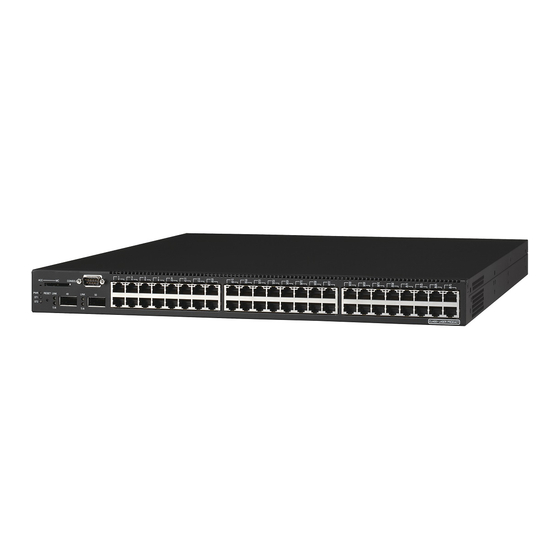

Page 1 MERGEPOINT XX SP MANAGER ® Installer/User Guide...
Page 2 USA Notification Warning: Changes or modifications to this unit not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 3 Processor Manager SP5300/SP5324/SP5340 Installer/User Guide Avocent, the Avocent logo, The Power of Being There, MergePoint and DSView are registered trademarks of Avocent Corporation or its affiliates in the U.S. and other countries. All other marks are the property of their respective owners.
Page 4 Instructions This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Dangerous Voltage This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Page 5: Table Of Contents
TABL E OF CONTEN TS Table of Contents List of Figures ......................... ix List of Tables ........................xi Chapter 1: Product Overview..................1 Features and Benefits ........................1 Supported Target Devices........................2 MergePoint SP5300 Appliance Configuration .................. 3 LEDs on the MergePoint SP5300 appliance ................3 MergePoint SP5324/SP5340 Appliance Configuration ..............
Page 6 MergePoint Service Processor Manager SP53XX Installer/User Guide Users ..............................21 Managing MergePoint SP manager user accounts ..............21 DHCP on the MergePoint SP Manager ..................24 Discovering and Adding Target Devices (Admin users only)............25 Discovering target devices ....................... 25 Manually Adding a Single Target Device..................
Page 7 Table of Contents Synchronizing blades for a blade chassis................. 51 Changing the SoL port number ....................52 Changing the access account of a target device............... 52 Changing target device parameters..................52 Accessing system information....................53 Recovering provisioning......................54 Changing LAN parameters ....................... 54 SNMP............................
Page 8 MergePoint Service Processor Manager SP53XX Installer/User Guide Chapter 6: Administration Tasks Not Performed in the Web Interface..... 83 Using MindTerm to Create an SSH Tunnel ..................83 Using SSH with the MergePoint SP Manager ................. 84 The SSH command line format ....................84 User shell ..........................
Page 9 Table of Contents add ............................106 cd............................. 110 commit ............................ 111 delete............................111 get | show ..........................112 list ............................113 quit | exit ..........................113 quit! ............................114 rename ........................... 114 revert............................114 set............................115 shell ............................115 version............................. 116 Summary of How to Configure the Top Level Parameters ............
Page 10 viii MergePoint Service Processor Manager SP53XX Installer/User Guide Power management service association command ..............152 SSH service and Telnet service commands................152 Examples ............................155 Viewing the instances of the class AvctMP_DiscoverySAP ........... 155 Appendices........................163 Appendix A: Troubleshooting ......................163 Service processor troubleshooting....................
Page 11: List Of Figures
L IS T O F F IG URE S List of Figures Figure 1.1: MergePoint SP5300 Appliance Configuration............... 3 Figure 1.2: MergePoint SP5324/SP5340 Appliance Configuration ..........4 Figure 2.1: DC Power Connection Terminal Block ................ 10 Figure 3.1: MergePoint SP Manager Web Interface ..............40 Figure 5.1: MergePoint SP5324/SP5340 SP Manager Native IP Configuration ......
Page 12 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 13: List Of Tables
LIS T OF T A BL ES List of Tables Table 1.1: Descriptions for MergePoint SP5300 Appliance Configuration ........3 Table 1.2: Descriptions for MergePoint SP5324/SP5340 Appliance Configuration ......4 Table 2.1: DC Power Connection Details ..................10 Table 2.2: Reserved Words ......................22 Table 2.3: Target Device Types Displayed in the Managed/Unmanaged Targets Lists ....
Page 14 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 15: Chapter 1: Product Overview
CHA PTER Product Overview The MergePoint service processor (SP) manager is a secure, centralized enterprise management solution for target devices equipped with IPMI, HP , Dell , IBM , Sun and Fujitsu-Siemens ® ® ® ® service processors. You can remotely perform server management tasks, including power control and console access, on managed target devices.
Page 16: Supported Target Devices
MergePoint Service Processor Manager SP53XX Installer/User Guide events for sensors and shared access to management ports. Also, simultaneous power control of multiple servers boosts the already existing power management capabilities of service processors, including graceful shutdown support for IPMI. With multiple Ethernet ports, the MergePoint SP5324/SP5340 appliances connect point-to-point with Ethernet-based service processors.
Page 17: Mergepoint Sp5300 Appliance Configuration
Chapter 1: Product Overview MergePoint SP5300 Appliance Configuration Figure 1.1: MergePoint SP5300 Appliance Configuration Table 1.1: Descriptions for MergePoint SP5300 Appliance Configuration Number Description Number Remote User Web Interface RJ-45 Ethernet Ports Power Target Device Connection to the Serial Port CAT 5 Cables Terminal or Workstation (for Configuration) MergePoint SP5300 Appliance...
Page 18: Mergepoint Sp5324/Sp5340 Appliance Configuration
MergePoint Service Processor Manager SP53XX Installer/User Guide MergePoint SP5324/SP5340 Appliance Configuration MergePoint SP53XX Appliance (SP5340 Shown) Figure 1.2: MergePoint SP5324/SP5340 Appliance Configuration Table 1.2: Descriptions for MergePoint SP5324/SP5340 Appliance Configuration Number Description Number Description Private ethernet ports (24 or 40) 10/100 secondary public Ethernet port - (Optional) For connection to a second network connection or for failover...
Page 19: Safety Precautions
Choose a location that avoids excessive heat, direct sunlight, dust or chemical exposure, all of which can cause the product to fail. For example, do not place an Avocent product near a radiator or heat register, which can cause overheating.
Page 20: Rack Mount Safety Considerations
Stay within specified cable length limitations. • Leave enough space in front and back of the equipment to allow access for servicing. When installing Avocent equipment in a rack or cabinet, observe the following precautions: • Ensure that the floor’s surface is level.
Page 21 CAUTION: This MergePoint SP manager contains an internal battery that is used for the real time clock. This battery is not a field replaceable item, and replacement should not be attempted by a user. If real time clock errors occur and the battery is suspected, visit http://www.avocent.com/support or contact the Avocent Technical Support location nearest you.
Page 22 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 23: Chapter 2: Installation And Setup
CHA PTER Installation and Setup Configuring Power for the MergePoint SP manager The MergePoint SP manager is supplied with single or dual AC or DC power supplies. To configure AC power: Make sure that the power switch on the MergePoint SP manager is turned off. Plug the power cable into the MergePoint SP manager and into a power source.
Page 24: Connecting To The Network
MergePoint Service Processor Manager SP53XX Installer/User Guide Figure 2.1: DC Power Connection Terminal Block Table 2.1: DC Power Connection Details Number Description Power switch RTN (Return) GND (Ground) -48VDC Make sure that the power switch on the console server is turned off. Make sure that DC power cables are not connected to a power source.
Page 25: Configuring The Mergepoint Sp Manager Basic Settings
(Setup eth) to configure any of the listed network settings specific to your network. -or- For a MergePoint SP5324/SP5340 appliance: Log into the console port as root with the default password avocent Enter the passwd command, and enter and confirm a new password for the root user. Type to load the CLI utility.
Page 26: Activating The Mergepoint Sp5300 Appliance License Keys
Parameters on page 116. Activating the MergePoint SP5300 Appliance License Keys You must register your MergePoint SP5300 appliance online at www.avocent.com to obtain a master license key. The master key must be configured before you can discover and manage any target devices.
Page 27: Adding The Mergepoint Sp Manager To A Dsview 3 Software Installation
Chapter 2: Installation and Setup configure the MergePoint SP5300 appliance with the master key and slave key(s) for the new license key(s). To activate the MergePoint SP5300 appliance license: Follow the instructions on the registration card included with the MergePoint SP5300 appliance to activate the appliance serial number.
Page 28: Ethernet Ports On The Mergepoint Sp5324/Sp5340 Appliance
MergePoint Service Processor Manager SP53XX Installer/User Guide Ethernet ports on the MergePoint SP5324/SP5340 appliance The MergePoint SP5324/SP5340 appliance has two public Ethernet ports (eth0 and eth1) and 24 or 40 Ethernet private ports. The public ports are used for connecting to the public (or management) network and the private ports are used for connecting to service processors on the private network.
Page 29: Configuring Mergepoint Sp5300 Appliance Network Settings
Chapter 2: Installation and Setup After Bridge mode is enabled, the bridged Ethernet interfaces are referred to as br0; the eth0, eth1 and priv0 are not accessible at the same time. NOTE: If Bridge mode is enabled, security settings are no longer managed by the MergePoint SP manager. Instead, the user must configure any required security settings from the service processor attached to the MergePoint SP manager.
Page 30: Configuring Mergepoint Sp5324/Sp5340 Appliance Network Settings
MergePoint Service Processor Manager SP53XX Installer/User Guide In the Status drop-down menu, select Yes to enable VLAN. Click Apply. Configuring MergePoint SP5324/SP5340 appliance network settings When configuring Ethernet ports, be aware of the following conditions: • In Normal mode, when each Ethernet port is active and assigned a different IP address, both ports are reachable through either IP address even if the cable is disconnected from one of the interfaces.
Page 31: Private Subnets On The Mergepoint Sp5324/Sp5340 Appliance
Chapter 2: Installation and Setup NOTE: Network settings may also be changed using the CLI utility. See related CLI commands on page 118. Private Subnets on the MergePoint SP5324/SP5340 Appliance Target devices connecting to the private subnets on a MergePoint SP5324/SP5340 appliance can be isolated on a management network that is separate from the production and public networks.
Page 32: Firewall/Packet Filtering
MergePoint Service Processor Manager SP53XX Installer/User Guide Firewall/Packet Filtering Packet filtering on the MergePoint SP manager is controlled by chains and rules that are configured in iptables. By default, the MergePoint SP manager does not forward any traffic between private and public networks.
Page 33: Bmc Provisioning (Ipmi Targets Only)
Chapter 2: Installation and Setup In the Source IP/mask field, type a source IP and subnet mask in the form: hostIPaddress or networkIPaddress/NN. In the Destination IP/mask field, type a destination IP and subnet mask in the form: hostIPaddress or networkIPaddress/NN. In the Input interface or Output interface drop-down menu, select an input or output interface depending on which chain you select.
Page 34: Starting Or Stopping The Bmc Provisioning Service (Admin Users Only)
MergePoint Service Processor Manager SP53XX Installer/User Guide NOTE: Automatic provisioning is an optional feature that is only available for target devices that have IPMI BMCs. Starting or stopping the BMC provisioning service (Admin users only) You may start or stop the BMC provisioning service through the Provisioning window. If the Stop button is clicked, the BMC provisioning service stops and the MergePoint SP manager will no longer accept PXE boot requests from target devices on the LAN.
Page 35: Bmc Log
Chapter 2: Installation and Setup Click Apply. To set dynamic provisioning parameters: Click Targets - Provisioning. In the Dynamic Provisioning area, enter the Start and End IP addresses of a range of optional BMC IP addresses. Click Apply. To set static provisioning parameters: Click Targets - Provisioning.
Page 36: Table 2.2: Reserved Words
MergePoint Service Processor Manager SP53XX Installer/User Guide privilege is defined by users when they are created and provide the ability to access selected target devices and perform designated operations on those devices. User accounts can also be managed in groups. After a user is added to a group, that user can manage all target devices assigned to it individually, as well as all the target devices assigned to any groups to which the user belongs.
Page 37 Chapter 2: Installation and Setup To change the privileges assigned to the user, select the desired privilege from the Privilege drop-down menu: Admin, Operator, User or customized roles. For Operator, User or customized role privilege users, select the target devices which can be managed by the user.
Page 38: Dhcp On The Mergepoint Sp Manager
MergePoint Service Processor Manager SP53XX Installer/User Guide DHCP on the MergePoint SP Manager The MergePoint SP manager has a Dynamic Host Configuration Protocol (DHCP) server to quickly and efficiently configure new devices on the Ethernet. It supports Dynamic and Static DHCP;...
Page 39: Discovering And Adding Target Devices (Admin Users Only)
Chapter 2: Installation and Setup To configure the DHCP relay server: Click Targets - DHCP. In the Status area, select Enable to activate DHCP relay. In the Sever field, enter the IP address or the name of the DHCP relay server. Click Apply.
Page 40: Manually Adding A Single Target Device
MergePoint Service Processor Manager SP53XX Installer/User Guide If you want the MergePoint SP manager to search for target devices in the specified IP address range one time, select Manual. Click Apply. NOTE: Discovery results from either start mode will be displayed in the Unmanaged Targets list in the Targets window.
Page 41 Chapter 2: Installation and Setup -or- If you do not want to require a username and password when connecting to the target device, select Don’t verify username and password. You may specify the username and password in the corresponding fields for accessing other functions. NOTE: If Verify username and password is selected, the username and password are checked when adding a target device and the Serial over LAN (SoL) session starts automatically.
Page 42: Managing Target Device Lists (Admin Users Only)
MergePoint Service Processor Manager SP53XX Installer/User Guide Managing Target Device Lists (Admin users only) Discovered target devices are displayed in the Unmanaged Targets list, while manually added target devices are displayed in the Managed Targets list. You may add a target device to the Managed Targets list at any time.
Page 43 Chapter 2: Installation and Setup To use a new username and password, select Do not use default username and password and enter the username and password in the corresponding fields. Select or deselect Data Buffering as desired. (To set SoL data buffering size, see To set the session time interval and SoL history size: on page 35).
Page 44: Managing Target Device Groups (Admin Users Only)
MergePoint Service Processor Manager SP53XX Installer/User Guide Click the Properties tab. In the top navigation bar, click Target. A window displaying target device information appears. To add the target device to a group, click Copy To. From the Group drop-down menu, select a group.
Page 45: Managing Sp Profiles (Admin Users Only)
Chapter 2: Installation and Setup - or - Click a group name from the explorer tree in the side navigation bar, click Configuration in the top navigation bar, then click Delete. To add a managed target device to a device group: Click the Targets tab, then click Targets in the top navigation bar.
Page 46 MergePoint Service Processor Manager SP53XX Installer/User Guide • Target devices being configured only for Native IP access. • Target devices being configured only for DirectCommand access. • DirectCommand Options: contains values to be used when DirectCommand is launched. The DirectCommand feature allows transparent access to native TCP services on a target device, such as a Virtual Media interface or a native KVM implementation.
Page 47: Managing Default Users (Admin Users Only)
Chapter 2: Installation and Setup To modify a user SP profile: Click Targets - SP Profiles. In the User SP Profiles list, click the name link for the SP profile you wish to modify and enter the new information. Click Apply. Managing Default Users (Admin users only) To perform management operations through a MergePoint SP manager, a username and password are required to access the target device.
Page 48: Managing User Accounts On Target Devices
MergePoint Service Processor Manager SP53XX Installer/User Guide NOTE: This feature is not supported on target devices equipped with iLO. NOTE: The maximum number of default target users is five. NOTE: Do not use reserved words for usernames. Reserved words that have special meaning for the MergePoint SP manager are listed in Reserved words (do not use as usernames) on page 22.
Page 49: Configuring The Mergepoint Sp Manager System
Chapter 2: Installation and Setup In the top navigation bar, click Users. Click Add or click Edit next to a user without a username. Enter the desired changes, then click Apply. To remove a user account: In the side navigation bar, click a target device name. Click the Configuration tab.
Page 50 MergePoint Service Processor Manager SP53XX Installer/User Guide Select Synchronize with Client PC to synchronize the MergePoint appliance time with the client PC. - or - Select Other and specify the MergePoint appliance time from the pop-up calendar. Click Apply. To set the Internet time server: Click System - Advanced Setting.
Page 51: Pcmcia For The Mergepoint Sp5324/Sp5340 Appliance
Chapter 2: Installation and Setup In the DST start fields, select the start dates of daylight saving time from the pop-up calendar. In the DST end fields, select the end dates of daylight saving time from the pop-up calendar. Click Apply. To enable or disable the Telnet or SSH protocol: Click System - Setting.
Page 52 MergePoint Service Processor Manager SP53XX Installer/User Guide • After an IP address is available for the MergePoint SP manager, the remote root user can use SSH to connect to the console and log in from a remote location and change the password.
Page 53: Chapter 3: Operations
CHA PTER Operations The operations in this chapter are performed using the MergePoint SP manager web interface. For instructions on using the MergePoint SP manager with DSView 3 software, please see the DSView 3 Software Installer/User Guide. When the MergePoint SP manager is selected in the side navigation bar, a line of tabs and sub-tabs appears in the tab bar.
Page 54: Figure 3.1: Mergepoint Sp Manager Web Interface
MergePoint Service Processor Manager SP53XX Installer/User Guide NOTE: When following any of the MergePoint SP manager configuration procedures in this document, start by clicking the name of the MergePoint SP manager in the side navigation bar. Click Apply to save changes. To cancel changes, click Back to return to the previous screen or click another navigation element, such as the name of a tab, window or target.
Page 55: Power Management
Chapter 3: Operations Table 3.1: MergePoint SP Manager Web Interface Descriptions (Continued) Number Window Area Description Content Area The content area displays information relative to your selections and allows you to make changes to the MergePoint SP manager, managed groups or target devices. Power Management Remote power and chassis management Using the MergePoint SP manager, you may view the power status and the status of the chassis...
Page 56: Performing Target Device Group Operations
MergePoint Service Processor Manager SP53XX Installer/User Guide To turn on, turn off or reset all selected target devices: Click the Targets tab, then click Targets in the top navigation bar. The Targets window appears. In the Managed Targets list, select the target device(s) you wish to manage and click the desired power operation.
Page 57 Chapter 3: Operations You can also move or copy target devices from one group to another, and remove target devices from a group. NOTE: A group must contain at least one target device before you can perform a group operation. To turn on, turn off or reset all target devices in a group: Click Targets - Group.
Page 58: Monitoring And Management
MergePoint Service Processor Manager SP53XX Installer/User Guide In the Group list, select the group(s) you wish to modify and click PET Setting. - or - Click a group name from the explorer tree in the side navigation bar, click Action in the top navigation bar, then click PET Setting.
Page 59: Viewing Sel Events
Chapter 3: Operations To view sensor status: In the side navigation bar, click a target device name. Click the Sensor tab. In the top navigation bar, click Sensor. The Sensor window and a detailed list of sensors and corresponding information appears. Viewing SEL events You may use the MergePoint SP manager to view the SEL (System Event Log) on a managed target device.
Page 60: Accessing Fru Information
MergePoint Service Processor Manager SP53XX Installer/User Guide NOTE: See the MergePoint SP manager release notes for more information about restoring data in MergePoint SP manager. To export data from the MergePoint SP manager (Admin users only): Click the System - Import/Export. Click Export.
Page 61 Chapter 3: Operations Before creating an alert action, configure the action settings to allow for alert notifications. To configure action settings (Admin users only): Click the Alerts tab. In the top navigation bar, click Action. Click Action Setting. Specify the following parameters: In the SMTP Server field, type the Simple Mail Transfer Protocol (SMTP) server address for sending email.
Page 62: Syslog
MergePoint Service Processor Manager SP53XX Installer/User Guide From the list, select the action(s) you wish to delete and click Delete. To query an alert (for all users): Click the Alerts tab. In the Alert Viewer area, select Show Alert Query. In the Alert Query area, specify any or all of the following parameters for the query: Select Period From to enable date range fields.
Page 63: Configuring Pet Alerts
Chapter 3: Operations Message filtering levels Messages can be filtered according to their severity, based on any or all of the levels from the following list. • 0 - Emergency • 1 - Alert • 2 - Critical • 3 - Error •...
Page 64: Schedules
MergePoint Service Processor Manager SP53XX Installer/User Guide Click the Configuration tab. In the top navigation bar, click Event Destination. The PET Setting window appears. Select Enable or Disable for sending or not sending alerts when specific events occur. In the Community String field, enter the value to be displayed in the community string field of the PET trap.
Page 65: Target Operations
Chapter 3: Operations Target Operations NOTE: As noted throughout this section, the available features vary according to the types of service processors. For example, accessing system information is only available for IPMI, ILOM, HP IPMI, FSC iRMC and Dell DRAC 5 devices; for other target devices, this feature cannot be viewed or accessed. To perform any of these operations, access the MergePoint SP manager web interface.
Page 66: Changing The Sol Port Number
MergePoint Service Processor Manager SP53XX Installer/User Guide In the top navigation bar, click Target. Click Synchronize BladeCenter. The blades on the side navigation bar are synchronized with the selected target device. Changing the SoL port number To change the SoL port number: In the side navigation bar, click a target device name.
Page 67: Accessing System Information
Chapter 3: Operations To use a new username and password, select Change username and password and enter the username and password in the corresponding fields. Select or deselect Data Buffering as desired. (To set SoL data buffering size, see To set the session time interval and SoL history size: on page 35).
Page 68: Recovering Provisioning
MergePoint Service Processor Manager SP53XX Installer/User Guide Recovering provisioning You can recover the original provisioning based on the configuration already in place at the target device. To recover provisioning for a device: In the side navigation bar, click a target device name. Click the Configuration tab.
Page 69 Chapter 3: Operations authentication and encryption lacking in those protocol versions. The SNMP management application can then be used to for SNMP management of the target device. NOTE: Running the SNMP daemon (snmpd) on the MergePoint SP manager allows you to access the proxy data using the v1 and 2c protocols without going through a VPN tunnel.
Page 70 MergePoint Service Processor Manager SP53XX Installer/User Guide If you selected either v1 or v2c, type a community name in the Community field. -or- If you selected v3, enter the username required for authentication, the authentication method, the authentication password, the encryption method and, optionally, the encryption password in the fields provided.
Page 71: Host Table
Chapter 3: Operations Click Network - SNMP. In the Users area, click Add, then type a username. Select an authentication method from the Auth method drop-down menu, then enter an optional authentication password. Select an encryption method from the Encryption drop-down menu, then enter an optional encryption password.
Page 72: Static Routes
MergePoint Service Processor Manager SP53XX Installer/User Guide To change the host name of the MergePoint appliance: Select Network - Host Table. Enter a host name for the MergePoint appliance in the Name field. Click Apply. To add an entry: Select Network - Host Table, then click Add. Enter the required information in the fields provided, then click Apply.
Page 73: Using Serial Over Lan (Sol)
Chapter 3: Operations To delete a static route: Click Network - Static Routes. Click the network address link of the static route you want to delete and click Delete. Using Serial over Lan (SOL) Device console and service processor console You may access four types of consoles on a target device: the device console, the service processor console, the Telnet console and the SSH console.
Page 74 MergePoint Service Processor Manager SP53XX Installer/User Guide Enter for the MindTerm menu. From the menu, you can configure <Ctrl> + <[mouse right-click]> terminal settings, define tunnels and modify other settings. For example, to change the terminal emulation program, select Settings - Terminal - Terminal Type. To view SoL history: In the side navigation bar, click a target device name.
Page 75: Configuring Sol Parameters
Chapter 3: Operations Click Connect. SSH console You can also access the SSH console of the selected target device. After accessing the SSH console, you can launch the management application from the service processor’s command line. To access the SSH console: In the side navigation bar, click a target device name.
Page 76: Remote Control
Traced information is saved to a trace file that can be downloaded. If needed, the downloaded trace file can be sent to Avocent technical support for troubleshooting assistance. This trace and debug tool is implemented by tcpdump (see http://www.tcpdump.org/ for more information).
Page 77: Appliance Operations
Click System - Session. The current user session will be listed in green text. To delete a session: Click System – Session. Select the session you wish to delete and click Delete. Upgrade Visit to download and save the latest MergePoint SP manager upgrade www.avocent.com firmware files onto your workstation.
Page 78: Boot Configuration For The Mergepoint Sp5324/Sp5340 Appliance
MergePoint Service Processor Manager SP53XX Installer/User Guide To upgrade firmware on the MergePoint SP manager (Admin users only): Click System - Upgrade. In the Filename field, type the path to the firmware file or click Browse to locate the file. Click Upgrade.
Page 79: Unbinding The Mergepoint Sp Manager From The Dsview 3 Server
Chapter 3: Operations Configuring boot characteristics The boot configuration feature allows the Admin user to configure the MergePoint SP5324/SP5340 appliance boot characteristics, including the location of the MergePoint SP manager boot file, the watchdog timer state, the console speed and the speed of the Ethernet interfaces. To configure boot options (Admin users only): Click System - Boot configuration.
Page 80 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 81: Chapter 4: Configuring External Authentication Services
CHA PTER Configuring External Authentication Services By selecting the Users – Authentication Services menu option, the administrative user can configure authentication services. These authentication methods use both local authentication and authentication servers in the order shown: Local/AuthType, AuthType/Local and then AuthType Down/Local.
Page 82: Configuring A Kerberos Authentication Server
MergePoint Service Processor Manager SP53XX Installer/User Guide Table 4.1: Supported Authentication Methods (Continued) Method Definition Local/AuthType Use the AuthType authentication if local authentication fails. NOTE: The AuthType is Kerberos, LDAP, NIS, RADIUS, SMB, TACACS+ or DSView. For the DSView authentication method, the MergePoint appliance must be managed by the DSView 3 management software; otherwise, the DSView authentication will fail.
Page 83: Chapter 4: Configuring External Authentication Services
Chapter 4: Configuring External Authentication Services Work with the authentication server’s administrator to synchronize the time and date between the MergePoint SP manager and the server. Click the Users tab. In the top navigation bar, click Authentication Services. The Authentication Service Configuration window appears.
Page 84: Configuring An Nis Authentication Server
MergePoint Service Processor Manager SP53XX Installer/User Guide Configuring an NIS authentication server You need to configure an NIS authentication server when the MergePoint SP manager is configured to use the NIS authentication method or any of its variations (NIS/DownLocal, Local/ NIS or NIS/Local).
Page 85: Configuring An Smb Authentication Server
Chapter 4: Configuring External Authentication Services Configuring an SMB authentication server You need to configure an SMB authentication server when the MergePoint SP manager is to use the SMB authentication method or any of its variations (Local/SMB, SMB/Local or SMB Down/ Local).
Page 86: Configuring An Authentication Method For The Mergepoint Sp Manager
MergePoint Service Processor Manager SP53XX Installer/User Guide Configuring an authentication method for the MergePoint SP manager By selecting the Users-Authentication menu option, the administrative user can configure the authentication method that applies when anyone attempts to log into the MergePoint SP manager. By default, Local authentication is in effect and no configuration is required.
Page 87: Chapter 5: Accessing Target Devices Using Directcommand Or Native Ip
CHA PTER Accessing Target Devices Using DirectCommand or Native IP You can connect directly to native applications on the target device through either the DirectCommand or the Native IP features. These applications are proprietary interfaces or command lines provided by the service processor vendor; examples include HP InSight, IBM ®...
Page 88: Figure 5.1: Mergepoint Sp5324/Sp5340 Sp Manager Native Ip Configuration
MergePoint Service Processor Manager SP53XX Installer/User Guide Figure 5.1 illustrates a DirectCommand or Native IP connection to a target device. Figure 5.1: MergePoint SP5324/SP5340 SP Manager Native IP Configuration Table 5.1: Descriptions for MergePoint SP5324/SP5340 SP Manager Native IP Configuration Number Description Number Description Remote user...
Page 89: Directcommand
Chapter 5: Accessing Target Devices Using DirectCommand or Native IP DirectCommand DirectCommand allows transparent access to a service processor through the MergePoint SP manager’s web interface. The DirectCommand Auto Login feature provides a configurable option to log in automatically to the remote SP management web interface without needing to enter a username or password.
Page 90 MergePoint Service Processor Manager SP53XX Installer/User Guide To open the DirectCommand connection list window: In the side navigation bar, click a target device name. Click the DirectCommand tab. Click Connect. From the Top Option bar, click Connected. The DirectCommand connection list window appears.
Page 91: Native Ip
Chapter 5: Accessing Target Devices Using DirectCommand or Native IP NOTE: Close any other open network applications, such as VNC, to avoid a port number conflict. To enter the vMedia Session interface: In the side navigation bar, click a target device name. Click the DirectCommand tab.
Page 92: Native Ip Operations Using The Web Interface
MergePoint Service Processor Manager SP53XX Installer/User Guide To limit which IP address can create Native IP connections, administrators can specify IP addresses in a Native IP trust. The IP addresses within the trusts are permitted to create Native IP connections to some or all service processors. •...
Page 93 Chapter 5: Accessing Target Devices Using DirectCommand or Native IP In the Client IP field, type a host IP address. In the Targets drop-down menu, select a service processor IP address. Click Apply. NOTE: The client IP address must be within a range of the Native IP trust. You must enable the Native IP connection in the service processor or create a permanent Native IP connection in the Native IP Connection tab.
Page 94: Native Ip Operations Using Ssh Commands
MergePoint Service Processor Manager SP53XX Installer/User Guide Click the Configuration tab. In the top navigation bar, click Native IP, then click Go to native IP interface. NOTE: The Go to native IP interface option is not visible if Native IP is not enabled. Native IP operations using SSH Commands Admin users can create Native IP trusts and open Native IP connections with SSH commands.
Page 95 Chapter 5: Accessing Target Devices Using DirectCommand or Native IP To enable Native IP connections (temporarily): Run the command by entering the following: admin@MergePoint:~$ nativeipctl on client <host ip address> <device IP address> For example, to enable temporarily direct access from 172.26.27.15 to 172.26.25.160: admin@MergePoint:~$ nativeipctl on client 172.26.27.15 172.26.25.160 To disable Native IP connections (temporarily): Run the command by entering the following:...
Page 96 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 97: Chapter 6: Administration Tasks Not Performed In The Web Interface
CHA PTER Administration Tasks Not Performed in the Web Interface This section lists the configuration and maintenance tasks that are performed by an administrator (the root user, the admin user or a member of the admin group) either on the Linux command line, using the CLI utility or in the UBoot monitor mode.
Page 98: Using Ssh With The Mergepoint Sp Manager
MergePoint Service Processor Manager SP53XX Installer/User Guide Figure 6.1: MindTerm Basic Tunnels Setup Dialog Box Using SSH with the MergePoint SP Manager Both SSH v1 and SSH v2 services are supported on the MergePoint SP manager. The administrator may disable either version; if only one version of SSH is enabled, authorized users can use only a client running the same version.
Page 99: User Shell
Chapter 6: Administration Tasks Not Performed in the Web Interface In this example, the -t option is required to launch an interactive session. The username is the account name of the authorized user. The device name is the name/alias that was assigned to the device by the MergePoint SP manager administrator (used only when accessing a device).
Page 100: Mgpshell
MergePoint Service Processor Manager SP53XX Installer/User Guide Exit Back NOTE: If you select Start Telnet session or Start SSH session, you are prompted for the corresponding port, and then required to enter the username and password. NOTE: The Enable native IP and Disable native IP commands are only supported on the MergePoint SP5324/ SP5340 appliance.
Page 101: Table 6.1: Supported Service Processor Commands
Chapter 6: Administration Tasks Not Performed in the Web Interface This command allows the user to get access to serverB's service processor. A menu appears after successfully logging in. The user can manage serverB by choosing a menu item. To access a target device through SSH Passthrough with service processor command: Run the command by entering the following: ssh –t userA:serverB@applianceC...
Page 102: Telnet
MergePoint Service Processor Manager SP53XX Installer/User Guide Table 6.1: Supported Service Processor Commands (Continued) Command Name Description solreplay Replays the history of the console on the managed server. spconsole Accesses the command line on the service processor. spconsole <action> Executes the specified action on the service processor, then exits. Starts an SSH session on the server.
Page 103 Chapter 6: Administration Tasks Not Performed in the Web Interface • Any error messages generated by the called program are left on the screen for the user to read. Examples showing how the administrator can force this behavior on for successful programs and off for unsuccessful ones are provided in the configuration file.
Page 104: Configuring Routes With Cli
MergePoint Service Processor Manager SP53XX Installer/User Guide Configuring Routes With CLI The following procedures give examples for using the CLI utility for configuring default, host and network routes and assigning them to interfaces or to gateways. NOTE: Setting a gateway IP address automatically creates a default route to the gateway’s IP address. To configure routes with CLI: Log into the console as root...
Page 105: Backing Up Configuration Files
Chapter 6: Administration Tasks Not Performed in the Web Interface cli> set network st_routes <IPaddress|networkIPaddress/NN> gateway 192.168.2.0 Backing Up Configuration Files MergePoint SP manager administrators can create a compressed backup of all configuration files and store the backup in a specific file. Any compressed configuration file that already resides in the directory is overwritten.
Page 106: Configuring Group Authorization For Ldap Authentication
MergePoint Service Processor Manager SP53XX Installer/User Guide configures users as members of groups as described in this section, the users do not need to have accounts configured on the MergePoint SP manager. For example, user johnb is defined as a member of the admin group on a TACACS+ server, but does not have a user account on the MergePoint SP manager.
Page 107: Defining Groups On An Ldap Server Running Openldap
Chapter 6: Administration Tasks Not Performed in the Web Interface Double-click Attributes and confirm that the info attribute is present. Double-click Classes, locate the class Users and right-click to select Properties. Select the Attributes tab and click Add. Locate info in the attributes list. Click Apply, then click OK To configure a group in ADSI Edit: In the server’s console window, double-click ADSI Edit.
Page 108 MergePoint Service Processor Manager SP53XX Installer/User Guide attributetype (0.9.2342.19200300.100.1.4 NAME 'info' DESC 'RFC1274: general information’ EQUALITY caseIgnoreMatch SUBSTR caseIgnoreSubstringsMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15{2048} ) Make sure both schema files are listed in slapd.conf: NOTE: The slapd.conf file is normally located in: [Redhat] /etc/openldap or [bsd] /usr/local/etc/openldap. include /etc/openldap/schema/nis.schema include /etc/openldap/schema/cosine.schema Restart the LDAP service to activate changes.
Page 109: Configuring Group Authorization For Radius Authentication
Chapter 6: Administration Tasks Not Performed in the Web Interface On the server, configure the group(s) assigned to each user with one entry for each group, either in a user definition file in the /etc/openldap directory, as shown in the following example, or on the command line.
Page 110 MergePoint Service Processor Manager SP53XX Installer/User Guide To configure groups on a RADIUS authentication server: On the server, open the /etc/raddb/users file for editing. Assign groups to a user in the FramedFilterId attribute. Use the format FramedFilterId=:group_name=<Group1>[,<Group2>,..., <GroupN>];, as shown in the following example: groupuser1 AuthType= Local, Password =”xxxx”...
Page 111: Configuring Group Authorization For Tacacs+ Authentication
(Optional) Enter a value to redefine the number of retries. The following screen example shows entries that define the RADIUS authentication server and the accounting server to be the same server with the same IP address, sets the secret to avocent, the time-out to 5 seconds and the number of retries to 5.
Page 112 MergePoint Service Processor Manager SP53XX Installer/User Guide • The TACACS+ server’s administrator must define the desired groups and assign users to the groups. • The MergePoint SP manager administrator must configure the TACACS+ server on the MergePoint SP manager and set up the TACACS+ server for raw access. For more information see Configuring a TACACS+ authentication server on the MergePoint SP manager on page 98.
Page 113: Switching The Port Speed In The Mergepoint Sp5324/Sp5340 Appliance
Chapter 6: Administration Tasks Not Performed in the Web Interface • authhost1: IP address of the TACACS+ authentication server. A second TACACS+ authentication server can be configured with the parameter authhost2. • accthost1: IP address of a TACACS+ accounting server, which can be used to track how long users are connected after being authorized by the authentication server.
Page 114 MergePoint Service Processor Manager SP53XX Installer/User Guide NOTE: The definitions for the values are: - auto: Auto mode. The system selects an appropriate speed for the switch port. - 10f / 10h / 100f / 100h: Mandatory mode. The system cannot change the value. This setting may cause operations to fail if the value is not appropriate for the switch port.
Page 115: Chapter 7: Using The Cli Utility
CHA PTER Using the CLI Utility CLI Utility Overview An administrator can configure the MergePoint SP manager using the CLI utility. While in the CLI utility, an administrator can escape to the shell and when finished can return to the CLI utility. Administrators often prefer using the CLI utility over the web interface because they can run frequently performed CLI configuration commands from shell scripts or from text files that can be executed in batch mode.
Page 116: Interactive Mode
MergePoint Service Processor Manager SP53XX Installer/User Guide When invoked without commands, CLI enters interactive mode; see Interactive mode on page 102. When the CLI utility is invoked with the option or is invoked from a script, the commands -f <file> are executed in batch mode from the specified file or script.
Page 117: Cli Parameters And Arguments
Chapter 7: Using the CLI Utility Table 7.1: CLI Utility Options (Continued) Option Description Help. Shows a brief summary of command line options. Quiet mode; don’t show the startup greeting. Show CLI version. CLI Parameters and Arguments The CLI configuration options are organized in a hierarchy called a parameter tree. You can use the show list commands to show parameters.
Page 118: Entering A Command In Command Code
MergePoint Service Processor Manager SP53XX Installer/User Guide cli> set network interface mode failover cli> Entering a command in command code Based on the branch mentioned at the beginning of this section, you could enter the command to turn on Ethernet failover with the parameters shown in the following screen example in command mode.
Page 119: Autocompletion
Chapter 7: Using the CLI Utility /usr/bin/cli <<EOF set network interface mode failover set network hostname frutabaga commit You could then make the script executable and execute it on the command line, as shown in the following example: root@MergePoint:~$ chmod 777 scriptname2 root@MergePoint:~$ ./scriptname2 Example plain text file You can put one or more commands in a plain text file without invoking any shell as shown in the...
Page 120: Cli Commands
MergePoint Service Processor Manager SP53XX Installer/User Guide Pressing once after partially typing a parameter name automatically completes the parameter name, unless there is more than one parameter name beginning with the typed characters. If more than one parameter name begins with the typed characters, then displays them all.
Page 121 Chapter 7: Using the CLI Utility In contrast, the command (as in: set network interface eth0 address <IPaddress>) is used to specify the IP address for the eth0 Ethernet interface. In that case, the command is used because each interface has only one IP address. Adding certain parameters causes one or more related parameters to be added to the subtree.
Page 122: Table 7.2: Parameters That Work With The Cli Add Command
MergePoint Service Processor Manager SP53XX Installer/User Guide example, to add a service processor user, you must enter ; the add spmanager user <username> user must then be configured after adding, using the command. Table 7.2: Parameters that Work with the CLI add Command Parameter Level 1 Parameter Level 2 What It Configures (Syntax) dhcpd...
Page 123 Chapter 7: Using the CLI Utility Table 7.2: Parameters that Work with the CLI add Command (Continued) Parameter Level 1 Parameter Level 2 What It Configures (Syntax) group Add a group. Synopsis: add snmpd group <group_name> Example: add snmpd group g1 view Add a view.
Page 124 MergePoint Service Processor Manager SP53XX Installer/User Guide Table 7.2: Parameters that Work with the CLI add Command (Continued) Parameter Level 1 Parameter Level 2 What It Configures (Syntax) user Add the name of a user authorized to access the appliance. Synopsis: add spmanager user <username>...
Page 125: Commit
Chapter 7: Using the CLI Utility network> set hostname kookaburra network> cd interface eth0 network interface eth0> set <tab><tab> address alias broadcast gateway method netmask network interface eth0> set address 192.168.160.10 netmask 255.255.255.0 network interface eth0> cd .. network interface> cd eth1 network interface eth1>...
Page 126: Get | Show
When get is entered with a partial parameter, all the subtrees display. In the output, if a value is assigned, the parameter preceding the value ends with a semicolon.
Page 127: List
Chapter 7: Using the CLI Utility network interface eth0 gateway: none network interface eth0 mtu: 1500 network interface eth0 alias cli> NOTE: If you make a change but do not commit it (see commit on page 111), the configuration files are not updated.
Page 128: Quit
MergePoint Service Processor Manager SP53XX Installer/User Guide cli> commit cli> quit quit! command closes the CLI utility and discards any uncommitted changes. quit rename command renames parameter. Depending on the parameter, this may result in a whole rename subtree of parameters being moved. For instance, if an IP address in the host list is changed, all parameters associated with that host (name, alias) are moved under the new name.
Page 129: Set
Chapter 7: Using the CLI Utility kookaburra cli> revert cli> get network hostname dingo command sets the value(s) of the last parameter. When multiple parameters are specified in one command, either all are set successfully or none of the values are changed. command is used to set an existing value, in contrast to add command which is used to add something to the parameter tree.
Page 130: Version
Table 7.3: Setting Top Level CLI Parameters Parameter Command adsap2 Avocent DS Authentication Protocol configuration. Synopsis: set adsap2 state <secure | trust-all> authserver <ip-address> Example: set adsap2 state trust-all authserver 2.2.2.2 NOTE: The state of “secure” means the server is being managed by the DSView 3 software, while the state of “trust-all”...
Page 131 Chapter 7: Using the CLI Utility Table 7.3: Setting Top Level CLI Parameters (Continued) Parameter Command auth Use the set command with the type parameters to set an authentication type for logins to the MergePoint SP manager, either krb5, ldap, nis, radius, smb, or tacplus. Use the set command with the auth type ppp parameters to set an authentication type for logins through the auxport modem and pcmcia/cardbus modems.
Page 132 MergePoint Service Processor Manager SP53XX Installer/User Guide Table 7.3: Setting Top Level CLI Parameters (Continued) Parameter Command iptables [filter | By default, a set of chains is defined with hidden rules. For NAT, the predefined chains nat] are: PREROUTING, POSTROUTING, OUTPUT. For filter, the predefined chains are: INPUT, OUTPUT, FORWARD.
Page 133 Chapter 7: Using the CLI Utility Table 7.3: Setting Top Level CLI Parameters (Continued) Parameter Command network interface Use the set command to configure one of the network interfaces with IPv6 for the eth0|eth1 for IPv6 MergePoint SP5300 appliance. Synopsis: set network interface eth0|eth1 method6 <dhcpv6|static> address6 <ip> netmask6 <netmask>...
Page 134 MergePoint Service Processor Manager SP53XX Installer/User Guide Table 7.3: Setting Top Level CLI Parameters (Continued) Parameter Command network st_routes After using the add command to add a static route to the routing table, use the set command to configure the static route. Synopsis: set network st_routes <ip>...
Page 135 Chapter 7: Using the CLI Utility Table 7.3: Setting Top Level CLI Parameters (Continued) Parameter Command snmpd group After using the add snmpd command to add group, use the set snmpd command to configure the parameters. Synopsis: set snmpd group <grp> sec_model <v1|v2c|usm> sec_name <name> Example: set snmpd group g1 sec_model v1 sec_name serc1 NOTE: See the add command for the following second level snmpd parameter: group on page 109.
Page 136 MergePoint Service Processor Manager SP53XX Installer/User Guide Table 7.3: Setting Top Level CLI Parameters (Continued) Parameter Command spmanager server After using the add command to configure a device, use the set command to configure the parameters such as account_verify, type, ip, group, alias, user, password or sol port. The account_verify “yes”...
Page 137 Chapter 7: Using the CLI Utility Table 7.3: Setting Top Level CLI Parameters (Continued) Parameter Command syslog destination Use the set syslog destination command parameters to configure a syslog destination (either the MergePoint SP manager console or rootuser or a syslog server name that has been added using the add syslog destination <syslog_server_name>...
Page 138 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 139: Chapter 8: Using Smash Command Line Management
CHA PTER Using SMASH Command Line Management The command line management option described in this chapter is based on the System Management Architecture for Server Hardware (SMASH) Command Line Protocol (CLP) specification developed by the Distributed Management Task Force (DMTF). SMASH CLP is an alternative to the web interface or CLI.
Page 140: Smash Clp Overview
MergePoint Service Processor Manager SP53XX Installer/User Guide SMASH CLP Overview The SMASH CLP is an open standard defining a lightweight protocol for using the command line to perform out of band management of heterogeneous servers. The CLP is intended for accessing services provided by service processors for power management, monitoring of sensors and of system event logs (SEL) and controlling managed servers’...
Page 141: Supported Profiles
Chapter 8: Using SMASH Command Line Management Table 8.1: Actions Supported for Each Server Type (Continued) Action Where Documented Check sensors Checking sensors on managed servers on page 141 Check fans Checking fans on managed servers on page 141 For more information, see Managing servers on page 139. In addition, commands can be used to manage certain parameters of the MergePoint SP manager itself, see Managing MergePoint SP manager on page 132 for more details.
Page 142: Terms
MergePoint Service Processor Manager SP53XX Installer/User Guide • Indications Profile • Host LAN Network Port Profile • CPU Profile • System Memory Profile For a complete list of supported service processors, see the MergePoint SP manager release notes. Terms This section defines CLP-specific terms used in this guide. The CLP specifies the syntax and semantics used to manipulate managed elements (MEs), which are specified as Targets in CLP commands.
Page 143: General Command Syntax
Chapter 8: Using SMASH Command Line Management General command syntax The general syntax for commands is shown in the following line: verb [options] [target] [properties] The following line is an example of a verb followed by a target (/admin1/system1/textredirectsap1) and a property followed by a value (name). ->...
Page 144: Targets
MergePoint Service Processor Manager SP53XX Installer/User Guide Targets The following table shows the target map for the MergePoint SP manager. To find detailed information about individual targets, see Viewing targets, properties and commands for a target on page 131. Table 8.3: Map of Targets and Descriptions Targets Description /admin1...
Page 145: Using Commands
Chapter 8: Using SMASH Command Line Management Table 8.3: Map of Targets and Descriptions (Continued) Targets Description /admin1/map1/telnetsvc1 The Telnet service on the appliance. For an example procedure using this target, see To show Telnet and SSH configuration: on page 133. /admin1/system[n] The managed servers.
Page 146: Associations
MergePoint Service Processor Manager SP53XX Installer/User Guide To set a property of a target: Enter the set command, followed by the target name, followed by the name of the property and the desired value, in the form: property=value. The following command line sets the output format of a CLP session to text on the MergePoint SP manager.
Page 147 Chapter 8: Using SMASH Command Line Management /admin1-> show /map1/ipendpt1 IPv4Address /map1/ipendpt1 properties IPv4Address = 172.26.25.164 /admin1-> show /map1/ipendpt1 IPv6Address /map1/ipendpt1 properties IPv6Address = 2001:ac1a:11:3:230:48ff:fe85:edd4/64 Showing Ethernet port of MergePoint SP manager You can show ethernet port of MergePoint SP manager. Use the following properties with the show command on the /admin/map1/enetport1 target: To show ethernet port of MergePoint SP manager: Show ethernet port of MergePoint SP manager by entering the show command, followed by the...
Page 148 MergePoint Service Processor Manager SP53XX Installer/User Guide Show the port number by entering the show command, followed by the target, followed by portnumber. The following example shows the port number for the Telnet service. /admin1-> show /map1/tcpendpt2 portnumber /admin1/map1/tcpendpt2 properties PortNumber = 23 Configuring automatic discovery of supported server types The admin1/map1/oemavocent_discoverysap1 target is for the automatic discovery service, which...
Page 149 Chapter 8: Using SMASH Command Line Management Managing power on the MergePoint SP manager To manage power on the MergePoint SP manager, enter the stop or reset command with the MergePoint SP manager target: /admin1/map1. To power off MergePoint SP manager: Power off MergePoint SP manager by entering the stop command, followed by the target: /admin1->...
Page 150 MergePoint Service Processor Manager SP53XX Installer/User Guide /admin1-> set system43 OtherIdentifyingInfo=”USERID,PASSW0RD, ,test,,0,7” To delete a server from the side navigation bar: Delete a managed server by entering delete followed by the /admin1/system[n] target. /admin1-> delete system1 /admin1/system1 deleted Managing group servers The admin1/map1/hostgroup1 target is for grouping servers.
Page 151 Chapter 8: Using SMASH Command Line Management ElementName = local:group.user_gp1 verbs delete show subtargets Delete an exising user group /admin1/map1/group2-> delete /admin1/map1/group2 deleted Managing CLP Sessions The /admin1/map1/clpsvc1/clpendpt[n] target is for managing sessions. You can set properties like output format. Supported commands are set and show. To change a session’s output format: Enter the set command followed by target and outputformat: /admin1->...
Page 152 MergePoint Service Processor Manager SP53XX Installer/User Guide InstanceID = Avct_MergePoint:swid1 isinstalled = true IsEntity = true iscurrent = true isnext = true verbs load show subtargets NOTE: For swid1, iscurrent=true and isnext=true. /admin1/map1/swid2-> set isnext=true isnext=true /admin1/map1/swid2-> show /admin1/map1/swid2 properties InstanceID = Avct_MergePoint:swid2 isnext = true isinstalled = true...
Page 153: Managing Servers
Chapter 8: Using SMASH Command Line Management properties InstanceID = Avct_MergePoint:swid2 isnext = true isinstalled = true IsEntity = true iscurrent = true verbs load show subtargets NOTE: After rolling back with swid2, iscurrent and isnext are true. Managing servers Managed servers are managed with the /admin1/system[n] target.
Page 154 MergePoint Service Processor Manager SP53XX Installer/User Guide OtherIdentifyingInfo[4] = 3 subtargets textredirectsap1 textredirectsap2 textredirectsap3 textredirectsap4 To view one of the supported properties for the IP end point, enter the show command followed by the /admin/system[n] target followed by property. /admin1-> show /system3 name /system3 properties Name = 172.26.25.122...
Page 155 Chapter 8: Using SMASH Command Line Management Checking sensors on managed servers You can check sensor data on managed servers using the show command with the /admin1/ system[n]/sensor[n] target. To check sensor data on an managed server: Enter the show command followed by the /admin1/system[n]/sensor[n] target. /admin1->...
Page 156 MergePoint Service Processor Manager SP53XX Installer/User Guide properties CreationClassName = AVCT_Fan SystemName = 172.26.25.122 SystemCreationClassName = 172.26.25.122:AVCT_Fan DeviceID = 32:0:48 RequestedState = 5 (No Change) ActiveCooling = true EnabledState = 5 (Not Applicable) HealthState = 0 (Unknown) OperationalStatus = VariableSpeed = false ElementName = FAN 1A RPM DesiredSpeed = 0 verbs...
Page 157 Chapter 8: Using SMASH Command Line Management ATI9 Red Hat Enterprise Linux ES release 4 (Nahant) Kernel 2.6.9-5.ELsmp on an i686 localhost.localdomain login: stop Password: Login timed out after 60 seconds Red Hat Enterprise Linux ES release 4 (Nahant) Kernel 2.6.9-5.ELsmp on an i686 localhost.localdomain login: The server is not powered on.
Page 158 MergePoint Service Processor Manager SP53XX Installer/User Guide /admin1/system3/log1 properties MaxNumberOfRecords = 512 ElementName = IPMI SEL OperationalStatus = HealthState = 0 (Unknown) EnabledState = 2 (Enabled) RequestedState = 5 (No Change) InstanceID = 172.26.25.122 verbs show subtargets record1 record2 record3 record4 record5 Enter the show command followed by the /admin1/system[n]/log1/record[n] target to show the...
Page 159 Chapter 8: Using SMASH Command Line Management verbs show delete subtargets Delete all records by entering the delete command followed by the /admin1/system3/log1/ record* target name. NOTE: Deletion of individual records is not supported. The following delete command deletes all records under log1 /admin1->...
Page 160 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 161: Chapter 9: Using Ws-Management
CHA PTER Using WS-Management As an alternative to the web interface, CLI or CLP, the Web Service for Management (WS-MAN) service can be used to remotely access and control services processors connected to the MergePoint SP manager. WS-MAN commands for the MergePoint SP manager can be entered using the Openwsman CLI, which is launched from a remote computer to the MergePoint SP manager.
Page 162 MergePoint Service Processor Manager SP53XX Installer/User Guide To modify the caption: Enter the following the command: wsman put http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoveryService?SystemCreationClassName="AvctMP_ComputerSystem",S ystemName="MergePoint",CreationClassName="AvctMP_DiscoveryService",Name=" oemavocent_discoverysrv" -h <appliance_IPaddress> -u wsman -p secret -y basic -k Caption="Avct" To modify the discovery interval: Enter the following command: wsman put http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoveryService?SystemCreationClassName="AvctMP_ComputerSystem",S ystemName="MergePoint",CreationClassName="AvctMP_DiscoveryService",Name="...
Page 163: Automatic Discovery Command
To modify a caption: Enter the following command: wsman put http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoverySAP?SystemCreationClassName="AvctMP_ComputerSystem",Syste mName="MergePoint",CreationClassName="AvctMP_DiscoverySAP",Name="oemavoce nt_discoverysap1" -h <appliance_IPaddress> -u wsman -p secret -y basic -k Caption="Avocent" To modify the start IP address of automatic discovery: Enter the following command: wsman put http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoverySAP?SystemCreationClassName="AvctMP_ComputerSystem",Syste mName="MergePoint",CreationClassName="AvctMP_DiscoverySAP",Name="oemavoce nt_discoverysap1"...
Page 164: Avctmp_Discoveryserviceaccessbysap Associations Commands
MergePoint Service Processor Manager SP53XX Installer/User Guide mName="MergePoint",CreationClassName="AvctMP_DiscoverySAP",Name="oemavoce nt_discoverysap1" -h <appliance_IPaddress> -u wsman -p secret -y basic -k oemavocent_startmode="manual" NOTE: The start mode value should be either “manual” or “automatic”. NOTE: Trying to modify properties other than the above four can result in an error message. To start the automatic discovery: Enter the following command: wsman inovke http://sblim.sf.net/wbem/wscim/1/cim-schema/2/...
Page 165: Power Management Command
To enumerate AvctRT_PowerManagementCapabilities instances: Enter the following command: wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctRT_PowerManagementCapabilities -h <appliance_IPaddress> -u wsman -p secret -y basic To get AvctRT_PowerManagementCapabilities instance: Enter the following command: wsman get http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctRT_PowerManagementCapabilities?InstanceID="Avocent: IPMI_PowerManagementServiceCapabilities" -h <appliance_IPaddress> -u wsman -p secret -y basic...
Page 166: Power Management Service Association Command
MergePoint Service Processor Manager SP53XX Installer/User Guide Power management service association command To enumerate AvctRT_AssociatedPowerManagementService associations: Enter the following command: wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctRT_AssociatedPowerManagementService -h <appliance_IPaddress> -u wsman -p secret -y basic SSH service and Telnet service commands To enumerate AvctMP_TelnetProtocolService instances: Enter the following command: wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_TelnetProtocolService -h <appliance_IPaddress>...
Page 167 Chapter 9: Using WS-Management wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_TelnetProtocolEndpoint -h <appliance_IPaddress> -u wsman -p secret -y basic To get AvctMP_TelnetProtocolEndpoint instances: Enter the following command: wsman get http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_TelnetProtocolEndpoint?SystemCreationClassName="AvctMP_ComputerSys tem",SystemName="MergePoint",CreationClassName="AvctMP_TelnetProtocolEndp oint",Name="8107" -h <appliance_IPaddress> -u wsman -p secret -y basic NOTE: Failed Get action may be because the designated session doesn't exist. To disconnect Telnet protocol: Enter the following command: wsman delete http://sblim.sf.net/wbem/wscim/1/cim-schema/2/...
Page 168 MergePoint Service Processor Manager SP53XX Installer/User Guide To enumerate AvctMP_SSHProvidesEndpoint associations: Enter the following command: wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_SSHProvidesEndpoint -h <appliance_IPaddress> -u wsman -p secret -y basic To enumerate AvctMP_TelnetProvidesEndpoint associations: Enter the following command: wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_TelnetProvidesEndpoint -h <appliance_IPaddress> -u wsman -p secret -y basic To enumerate AvctMP_TCPProtocolEndpoint associations: Enter the following command:...
Page 169: Examples
Chapter 9: Using WS-Management To enumerate AvctMP_ServiceAccessBySAP associations: Enter the following command: wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_ServiceAccessBySAP -h <appliance_IPaddress> -u wsman -p secret -y basic To enumerate AvctMP_SSHEndpointElementSettingData: Enter the following command: wsman enumerate http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_SSHEndpointElementSettingData -h <appliance_IPaddress> -u wsman -p secret -y basic To enumerate AvctMP_TelnetEndpointElementSettingData: Enter the following command:...
Page 170 MergePoint Service Processor Manager SP53XX Installer/User Guide <wsa:To>http://schemas.xmlsoap.org/ws/2004/08/addressing/role/ anonymous</wsa:To> <wsa:Action>http://schemas.xmlsoap.org/ws/2004/09/enumeration/ EnumerateResponse</wsa:Action> <wsa:RelatesTo>uuid:555e8a8f-467c-167c-8002-6319cb111100</ wsa:RelatesTo> <wsa:MessageID>uuid:64b51a14-467c-167c-800a-a2c882483000</ wsa:MessageID> </s:Header> <s:Body> <wsen:EnumerateResponse> <wsen:EnumerationContext>64b4dbd6-467c-167c-8009-a2c882483000</ wsen:EnumerationContext> </wsen:EnumerateResponse> </s:Body> </s:Envelope> The following respond XML file for enumerating AvctMP_DiscoveryService instances is returned: <?xml version="1.0" encoding="UTF-8"?> <s:Envelope xmlns:s="http://www.w3.org/2003/05/soap-envelope" xmlns:wsa="http://schemas.xmlsoap.org/ws/2004/08/addressing" xmlns:wsen="http://schemas.xmlsoap.org/ws/2004/09/enumeration">...
Page 171 Chapter 9: Using WS-Management <p:AvctMP_DiscoveryService xmlns:p="http://sblim.sf.net/wbem/ wscim/1/cim-schema/2/AvctMP_DiscoveryService" xmlns:xsi="http:// www.w3.org/2001/XMLSchema-instance"> <p:SystemCreationClassName>AvctMP_ComputerSystem</ p:SystemCreationClassName> <p:SystemName>MergePoint</p:SystemName> <p:CreationClassName>AvctMP_DiscoveryService</ p:CreationClassName> <p:Name>oemavocent_discoverysrv</p:Name> <p:oemavocent_discoveryinterval>30</ p:oemavocent_discoveryinterval> <p:TimeOfLastStateChange xsi:nil="true"/> <p:EnabledDefault>2</p:EnabledDefault> <p:RequestedState>5</p:RequestedState> <p:OtherEnabledState xsi:nil="true"/> <p:EnabledState>5</p:EnabledState> <p:HealthState xsi:nil="true"/> <p:Status xsi:nil="true"/> <p:InstallDate xsi:nil="true"/> <p:Caption>Avct</p:Caption> <p:Description xsi:nil="true"/> <p:ElementName xsi:nil="true"/> <p:PrimaryOwnerName xsi:nil="true"/> <p:PrimaryOwnerContact xsi:nil="true"/> <p:StartMode xsi:nil="true"/> <p:Started>true</p:Started>...
Page 172 MergePoint Service Processor Manager SP53XX Installer/User Guide wsman get http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoveryService?SystemCreationClassName=AvctMP_ComputerSystem,Sys temName=MergePoint,CreationClassName=AvctMP_DiscoveryService,Name=oemavoc ent_discoverysrv -h 172.26.25.209 -u wsman -p secret -y basic "" The following respond XML file for getting AvctMP_DiscoveryService instances is returned: <?xml version="1.0" encoding="UTF-8"?> <s:Envelope xmlns:s="http://www.w3.org/2003/05/soap-envelope" xmlns:wsa="http://schemas.xmlsoap.org/ws/2004/08/addressing"> <s:Header> <wsa:To>http://schemas.xmlsoap.org/ws/2004/08/addressing/role/ anonymous</wsa:To>...
Page 173 Chapter 9: Using WS-Management <p:SystemName>MergePoint</p:SystemName> <p:CreationClassName>AvctMP_DiscoveryService</p:CreationClassName> <p:Name>oemavocent_discoverysrv</p:Name> <p:PrimaryOwnerName xsi:nil="true"/> <p:PrimaryOwnerContact xsi:nil="true"/> <p:StartMode xsi:nil="true"/> <p:Started>true</p:Started> </p:AvctMP_DiscoveryService> </s:Body> </s:Envelope> To modify the caption: Enter the following command: wsman put http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoveryService?SystemCreationClassName=AvctMP_ComputerSystem,Sys temName=MergePoint,CreationClassName=AvctMP_DiscoveryService,Name=oemavoc ent_discoverysrv -h 172.26.25.209 -u wsman -p secret -y basic "-k Caption=Avct"...
Page 174 MergePoint Service Processor Manager SP53XX Installer/User Guide <p:SystemCreationClassName>AvctMP_ComputerSystem</ p:SystemCreationClassName> <p:SystemName>MergePoint</p:SystemName> <p:Name>oemavocent_discoverysrv</p:Name> <p:Started>true</p:Started> <p:Caption>Avct</p:Caption> <p:EnabledState>5</p:EnabledState> <p:RequestedState>5</p:RequestedState> <p:EnabledDefault>2</p:EnabledDefault> <p:oemavocent_discoveryinterval>30</p:oemavocent_discoveryinterval> </p:AvctMP_DiscoveryService> </s:Body> </s:Envelope> To modify the discovery interval: Enter the following command: wsman put http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoveryService?SystemCreationClassName=AvctMP_ComputerSystem,Sys temName=MergePoint,CreationClassName=AvctMP_DiscoveryService,Name=oemavoc ent_discoverysrv -h 172.26.25.209 -u wsman -p secret -y basic "-k oemavocent_discoveryinterval=30"...
Page 175 Chapter 9: Using WS-Management <p:AvctMP_DiscoveryService xmlns:p="http://sblim.sf.net/wbem/wscim/1/ cim-schema/2/AvctMP_DiscoveryService" xmlns:xsi="http://www.w3.org/2001/ XMLSchema-instance"> <p:CreationClassName>AvctMP_DiscoveryService</p:CreationClassName> <p:SystemCreationClassName>AvctMP_ComputerSystem</ p:SystemCreationClassName> <p:SystemName>MergePoint</p:SystemName> <p:Name>oemavocent_discoverysrv</p:Name> <p:Started>true</p:Started> <p:Caption>Avct</p:Caption> <p:EnabledState>5</p:EnabledState> <p:RequestedState>5</p:RequestedState> <p:EnabledDefault>2</p:EnabledDefault> <p:oemavocent_discoveryinterval>30</p:oemavocent_discoveryinterval> </p:AvctMP_DiscoveryService> </s:Body> </s:Envelope> To start the automatic discovery service: Enter the following command: wsman invoke http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoveryService?SystemCreationClassName=AvctMP_ComputerSystem,Sys temName=MergePoint,CreationClassName=AvctMP_DiscoveryService,Name=oemavoc ent_discoverysrv -h 172.26.25.209 -u wsman -p secret -y basic "-a start" The following respond XML file for starting the automatic discovery service is returned: <?xml version="1.0"...
Page 176 MergePoint Service Processor Manager SP53XX Installer/User Guide <wsa:MessageID>uuid:6572102a-467c-167c-8011-a2c882483000</ wsa:MessageID> </s:Header> <s:Body> <n1:start_OUTPUT> <n1:ReturnValue>2</n1:ReturnValue> </n1:start_OUTPUT> </s:Body> </s:Envelope> To stop the automatic discovery service: Enter the following command: wsman invoke http://sblim.sf.net/wbem/wscim/1/cim-schema/2/ AvctMP_DiscoveryService?SystemCreationClassName=AvctMP_ComputerSystem,Sys temName=MergePoint,CreationClassName=AvctMP_DiscoveryService,Name=oemavoc ent_discoverysrv -h 172.26.25.209 -u wsman -p secret -y basic "-a stop" The following respond XML file for stopping the automatic discovery service is returned: <?xml version="1.0"...
Page 177: Appendices
A P P EN D IC ES Appendices Appendix A: Troubleshooting Port mapping fails when using DirectCommand This section describes some considerations that may apply if port mapping fails when a user attempts DirectCommand access to a target device. If DirectCommand is invoked by an unprivileged user (such as a regular user on a UNIX-based system), DirectCommand may not be able to open privileged TCP ports (numbered below 1024).
Page 178: Service Processor Troubleshooting
MergePoint Service Processor Manager SP53XX Installer/User Guide Service processor troubleshooting If a service processor cannot be added, perform the following to confirm that it is supported by the MergePoint SP manager model and firmware version that you are using. • Check that the service processor card is setup correctly.
Page 179: Appendix B: Technical Specifications
Appendices Appendix B: Technical Specifications Table B.1: MergePoint SP5300 Appliance Technical Specifications Network Connection Number Type Ethernet, 10BaseT, 100BaseT, GigE Connector RJ-45 Serial Port Number Type RS-232 serial Connector DB9 male Mechanical H x W x D 4.3 x 42.7 x 35.6 cm (1.7 x 16.8 x 14 in), 1 U form factor Weight 5.9 kg (13 lb) Power...
Page 180: Table B.2: Mergepoint Sp5324/Sp5340 Appliance Specifications
1 RS232 DTE on RJ45 for power manager or external modem 1 10/100/10000 BT Ethernet on RJ45 (primary) 1 10/100 BT Ethernet on RJ45 (optional secondary or failover) Dual 32/16 bit PCMCIA Slots: Supported PC card types listed at www.avocent.com Enclosure 1U Steel Dimensions (WxDxH) 43.18 x 80 x 4.45 cm (17 x 12 x 1.75 in)
Page 181: Appendix C: Access Privileges
Appendices Appendix C: Access Privileges This appendix shows the access privileges that are required when the listed actions are performed either by appliance users or target device users. To set privileges for a MergePoint SP manager user, see Managing MergePoint SP manager user accounts on page 21. To set privileges for a target device user, see Managing user accounts on target devices on page 34.
Page 182 MergePoint Service Processor Manager SP53XX Installer/User Guide • To view target device user information (except password) • To view the event alert destination (PET) setting • To view the SoL configuration • To view the current target device time • To view SEL records •...
Page 183 Appendices • To view chassis status • To set LED indicator on/off for a target device • To set target device cold reset • To execute a self test • To power a device group up/down • To view the SoL configuration •...
Page 184: Appendix D: Configuring The Bios Settings For Sol
MergePoint Service Processor Manager SP53XX Installer/User Guide Appendix D: Configuring the BIOS Settings for SoL SoL enables the console output of a managed system to be redirected over an IPMI session over IP. This allows remote users to have text-based access to the BIOS, utilities, operating systems such as Command Line interfaces and Linux console and management services such as Microsoft's serial- based EMS.
Page 185: Appendix E: Configuring A Virtual Serial Port
Appendices Appendix E: Configuring a Virtual Serial Port The MergePoint SP manager has the ability to access target devices with iLO through the Virtual Serial port. To use this feature, you must enable the Virtual Serial port on both the BIOS Serial Console and EMS Console.
Page 186: Appendix F: Profile Configuration
MergePoint Service Processor Manager SP53XX Installer/User Guide Appendix F: Profile Configuration The MergePoint SP manager uses profiles for handling communications with target devices. Profiles are introduced in Managing SP Profiles (Admin users only) on page 31. Administrator- modifiable parameters that are defined for each profile are Family and Command Template, either or both of which can be modified to enable communications with target devices that do not work out of the box.
Page 187: Table F.1: Default Family Names And Corresponding Expect Script Names
Save and quit the file. Make sure the permissions are still 755. NOTE: Contact your Avocent representative if you need additional support for creating a custom Expect script. Default family names and corresponding Expect script names Table F.1: Default Family Names and Corresponding Expect Script Names...
Page 188: Table F.2: Expect Script Exit Codes
MergePoint Service Processor Manager SP53XX Installer/User Guide The exception to the format above occurs when the action is spconsole. When the fifth argument is spconsole, any other number of arguments may follow; all arguments entered after the spconsole actions are collected into a single command to be executed in the target device’s native command interface.
Page 189: Creating A Profile
Appendices Table F.2: Expect Script Exit Codes (Continued) Exit Code Definition Unexpected output from service processor/device, or another error in an protocol (such as time-out) Failed to connect with service processor Host identification failed (only for connection through SSH) User verification failed Command template not found Some necessary information not found in command template Invalid argument...
Page 190 MergePoint Service Processor Manager SP53XX Installer/User Guide If you cannot run one or more of the supported commands on the target device, attempt to connect to the console. NOTE: Even if the power management commands do not work on a new target device, you can usually establish a connection to the service processor’s console.
Page 191: Table F.3: Default Command Templates
Appendices 10. In the Command Template drop-down menu, the new template is automatically added and is included in the list of command templates that you can assign to a profile. 11. Assign the new template to the profile. NOTE: The new template is automatically added to the Command Template drop-down menu the next time an administrative user logs into the web interface.
Page 192 MergePoint Service Processor Manager SP53XX Installer/User Guide Table F.3: Default Command Templates (Continued) Template Type of Target Device hp_ipmi.default HP IPMI target devices. ilo.default iLO type target devices. ilom.default ILOM type target devices. • IPMI 1.5 type target devices. None •...
Page 193 Appendices Selecting New from the Action menu brings up an editor with a template file open for you to configure. Selecting View, Edit, Copy, Test or Rename from the Action menu brings up a menu of templates like the one shown in the following example: Please select template to view: -blade_center.default drac_mc.default...
Page 194 MergePoint Service Processor Manager SP53XX Installer/User Guide Start Telnet session Start SSH session Exit Back Not all listed commands are supported on every type of target device. If you select an unsupported command, an error message displays that lists the supported commands. The first time you select any action to test, you are prompted to enter a username and password.
Page 195 Appendices version_cmd = vpd ismp poweron_cmd = power on poweroff_cmd = power off powercycle_cmd = power cycle powerstatus_cmd = power state reset_cmd = reset sensors_cmd = { command = fans command = temps command = volts sel_cmd = { command = readlog -f repeat = readlog until = [\n\r]*(There are no more entries in the event log.)
Page 196: Appendix G: Glossary And Acronyms
MergePoint Service Processor Manager SP53XX Installer/User Guide Appendix G: Glossary and Acronyms The Baseboard Management Controller (BMC) is a specialized micro-controller on an IPMI target device that monitors and logs environmental conditions, such as temperature, voltage and power supply. Common Information Model (CIM), developed by DMTF, is a common data model of a schema used to describe overall management information in a network or enterprise environment.
Page 197: Target Device
Appendices SMASH CLP Systems Management Architecture for Server Hardware (SMASH) Command Line Protocol (CLP) has been used to create commands that can be used to configure the MergePoint SP manager and configure and access target device groups through Telnet or SSHv2 sessions. Secure Shell (SSH) is a UNIX-based command interface and protocol that allows administrators to securely access a remote target device.
Page 198: Appendix H: Technical Support
Appendix H: Technical Support Our Technical Support staff is ready to assist you with any installation or operating issues you encounter with your Avocent product. If an issue should develop, follow the steps below for the fastest possible service. To resolve an issue: Check the pertinent section of this manual to see if the issue can be resolved by following the procedures outlined.
Page 199: License Information
(such licenses referred to as Public Licenses), in particular the software program “mtd”. A machine-readable copy of the source code protected by these Public Licenses is available from Avocent on a medium customarily used for software interchange for a period of three years from date of purchase of this product by contacting Avocent Corporation at www.Avocent.com/support.
Page 200 MergePoint Service Processor Manager SP53XX Installer/User Guide You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty;...
Page 201 License Information redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
Page 202 MergePoint Service Processor Manager SP53XX Installer/User Guide...
Page 204 For Technical Support: www.avocent.com/support 590-839-501D...
