Figure 5.1: Mergepoint Sp5324/Sp5340 Sp Manager Native Ip Configuration; Table 5.1: Descriptions For Mergepoint Sp5324/Sp5340 Sp Manager Native Ip Configuration - Avocent MERGEPOINT 53XX SP MANAGER Installer/User Manual

74 MergePoint Service Processor Manager SP53XX Installer/User Guide
Figure 5.1 illustrates a DirectCommand or Native IP connection to a target device.
1
7

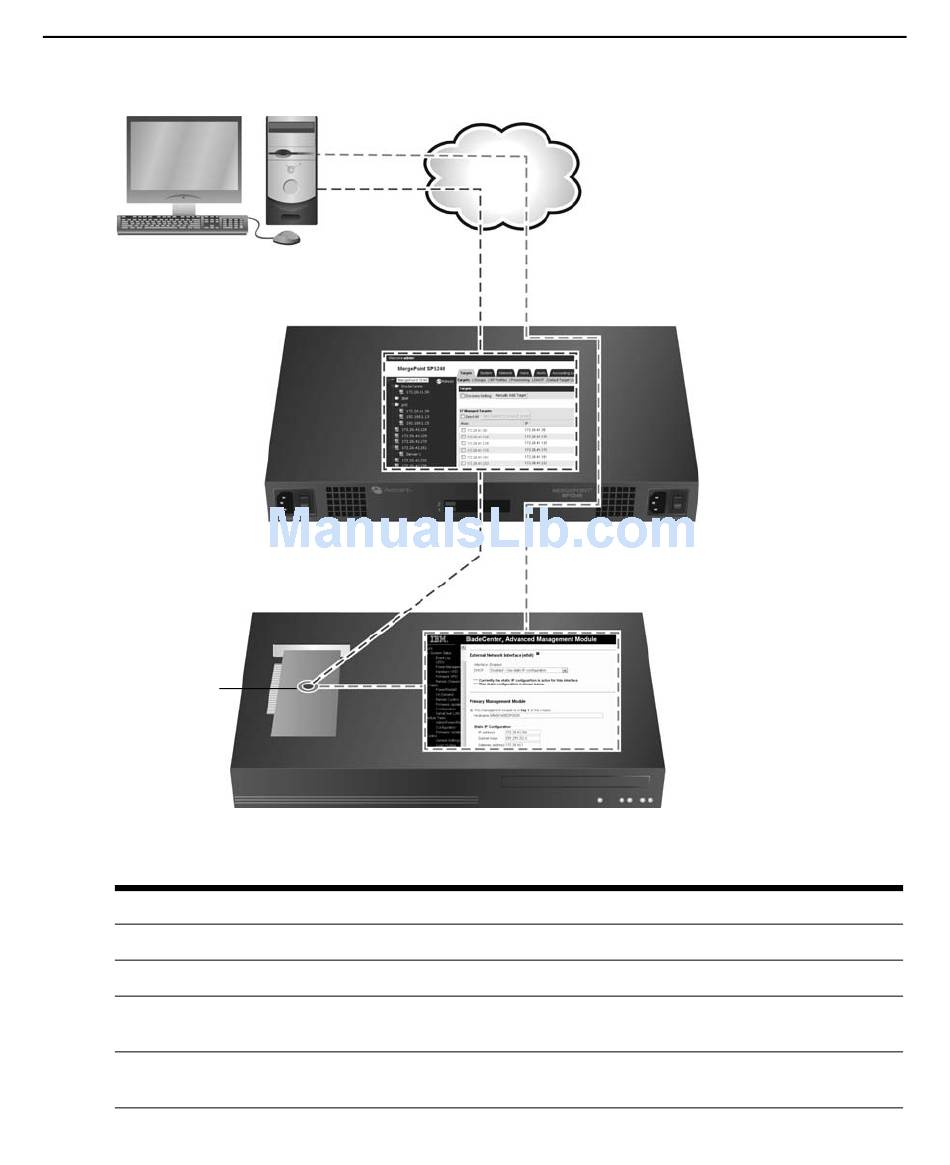

Figure 5.1: MergePoint SP5324/SP5340 SP Manager Native IP Configuration

Table 5.1: Descriptions for MergePoint SP5324/SP5340 SP Manager Native IP Configuration

Number Description
1 Remote user
2 LAN
3 DirectCommand or Native IP connection to
the service processor
4 Connection to the MergePoint SP manager
web interface
3
2
4
6
Number Description
5
6
7
8
5
8
MergePoint SP5324/SP5340 appliance
MergePoint SP manager web interface
Target device (service processor)
Native interface, application or command
line on the target device
