IGMP Snooping Group

IGMP Snooping allows the Switch to read the Multicast Group IP address and the corresponding MAC address from IGMP
packets that pass through the Switch. The number of IGMP reports that were snooped is displayed in the Reports field.
To view the IGMP Snooping Table, click Monitoring > IGMP Snooping Group.
The user may search the IGMP Snooping Table by VLAN ID (VID) by entering the VID in the top left hand corner and clicking
Search.
The following field can be viewed:
Parameter
VLAN ID
Multicast Group
MAC Address
Queries
Reports
Port Map
NOTE: To configure IGMP snooping for the DES-3500 Series switches, go to the Configuration
folder and select IGMP. Configuration and other information concerning IGMP snooping may be found
in Section 6 of this manual under IGMP.
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

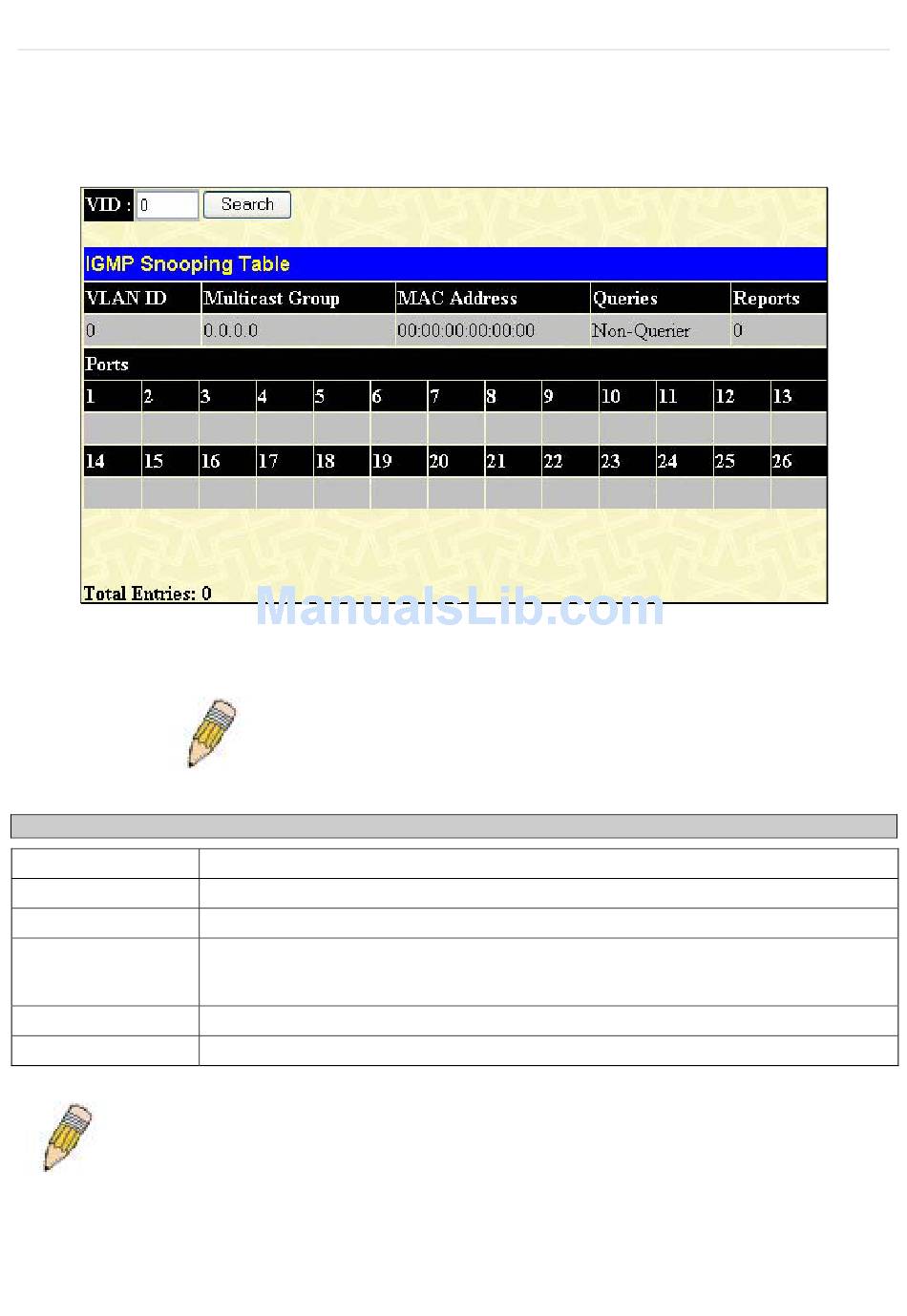

Figure 8- 18. IGMP Snooping Table window
NOTE: The Switch supports up to 128 IGMP Snooping groups.
Description
The VLAN ID (VID) of the multicast group.
The IP address of the multicast group.
The MAC address of the multicast group.
A read-only field showing the status of the Querier State. Disabled implies that the Switch is
not transmitting IGMP Snooping Query packets, while Enabled means those packets are
being transmitted.
The total number of reports received for this group.
These are the ports where the IGMP packets were snooped are displayed.
