xStack
All free ACL rules will be listed in the Free ACL Rules Table as above. To add an entry to the Access Profile Table, click the
Add button. This will open the Access Profile Configuration window, as shown below. There are three Access Profile
Configuration windows; one for Ethernet (or MAC address-based) profile configuration, one for IP address-based profile con-
figuration and one for the Packet Content Mask. You can switch between the three Access Profile Configuration windows by
using the Type drop-down menu. To clear all access profiles, click Clear All button on the above window.
The window shown below is the Access Profile Configuration window for Ethernet.
Note: Up to nine Access Profiles of the possible 255 profile IDs available may be created for the
Switch. The Profile ID is used for relative priority for an Access Profile should a conflict arise between
a rule created in one profile and a rule created in a different profile. Please read the CLI Reference
Manual chapter discussing Access Control List (ACL) Commands.
The following parameters can be set, for the Ethernet type:
Parameter
Profile ID (1-255)
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

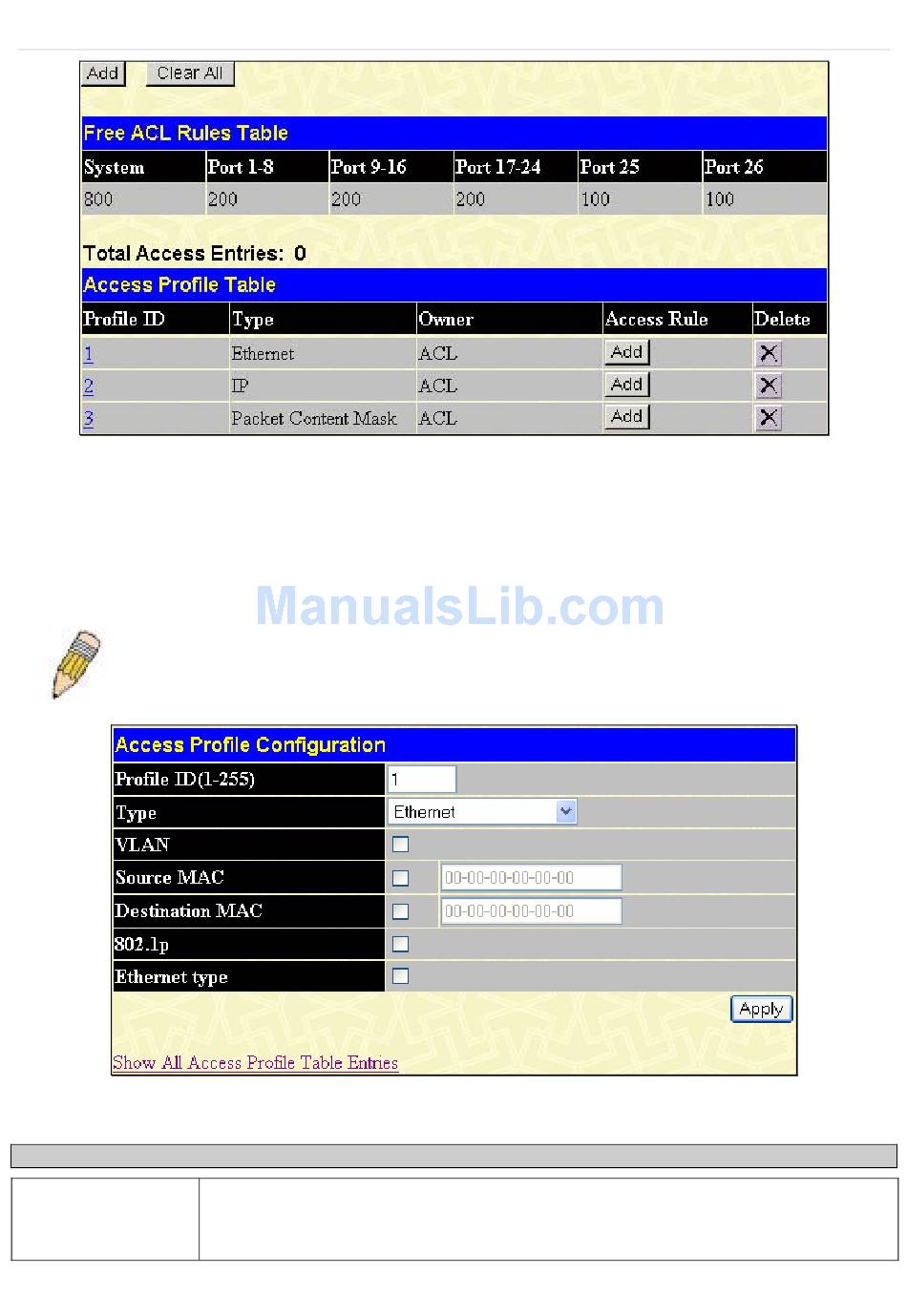

Figure 6- 62. Access Profile Table window
Figure 6- 63. Access Profile Configuration window (Ethernet)
Description
Type in a unique identifier number for this profile set. The number is used to set the relative
priority for the profile. Priority is set relative to other profiles where the lowest profile ID has
the highest priority. If a conflict occurs among configured access rules, the profile ID
establishes relative priority of the rules. The value can be set from 1 to 255 however there is
94
