xStack

VLAN and Trunk Groups

The members of a trunk group have the same VLAN setting. Any VLAN setting on the members of a trunk group will apply to
the other member ports.
NOTE: In order to use VLAN segmentation in conjunction with port trunk groups, you can first set
the port trunk group(s), and then you may configure VLAN settings. If you wish to change the port
trunk grouping with VLANs already in place, you will not need to reconfigure the VLAN settings after
changing the port trunk group settings. VLAN settings will automatically change in conjunction with
the change of the port trunk group settings.

Static VLAN Entry

To view the Static VLAN Entries on the Switch click, Configuration > VLAN > Static VLAN Entry which will open the
following window:
The 802.1Q Static VLANs window lists all previously configured VLANs by VLAN ID and VLAN Name. To delete an existing
802.1Q VLAN, click the corresponding X button under the Delete heading.
To create a new 802.1Q VLAN, click the Add button in the 802.1Q Static VLANs Entries window. A new window will appear,
as shown below, to configure the port settings and to assign a unique name and number to the new VLAN. See the table below for
a description of the parameters in the new window.
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

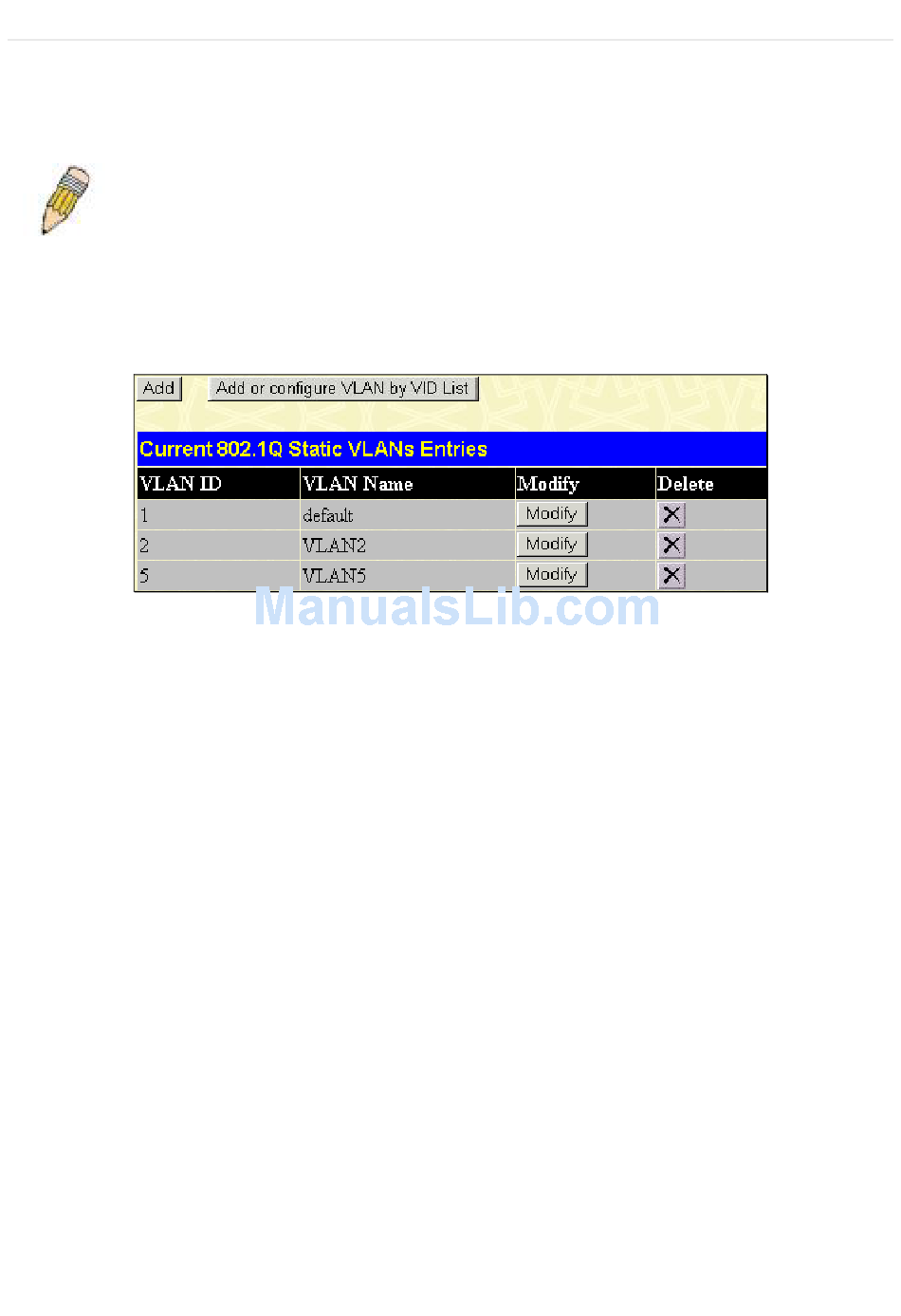

Figure 6- 44. Current 802.1Q Static VLANs Entries window
73
