VID List (1-4094) This field is used to specify the VID range from configured VLANs set on the Switch. Supported
VIDs on the Switch range from ID number 1 to 4094.
Priority (0-61440) Select a value between 0 and 61440 to specify the priority for a specified MSTI for forwarding
packets. The lower the value, the higher the priority. This entry must be divisible by 4094.
Click Apply to implement changes made.
To configure the settings for the CIST, click on its hyperlinked name in the Current MST Configuration Identification window,
which will reveal the following window to configure:
The user may configure the following parameters to configure the CIST on the Switch.
Parameter
MSTI ID
Type
VID List (1-4094)
Priority (0-61440)
Click Apply to implement changes made.
To configure the parameters for a previously set MSTI, click on its hyperlinked MSTI ID number, which will reveal the following
window for configuration.
The user may configure the following parameters for a MSTI on the Switch.
Parameter Description
MSTI ID Displays the MSTI ID previously set by the user.
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

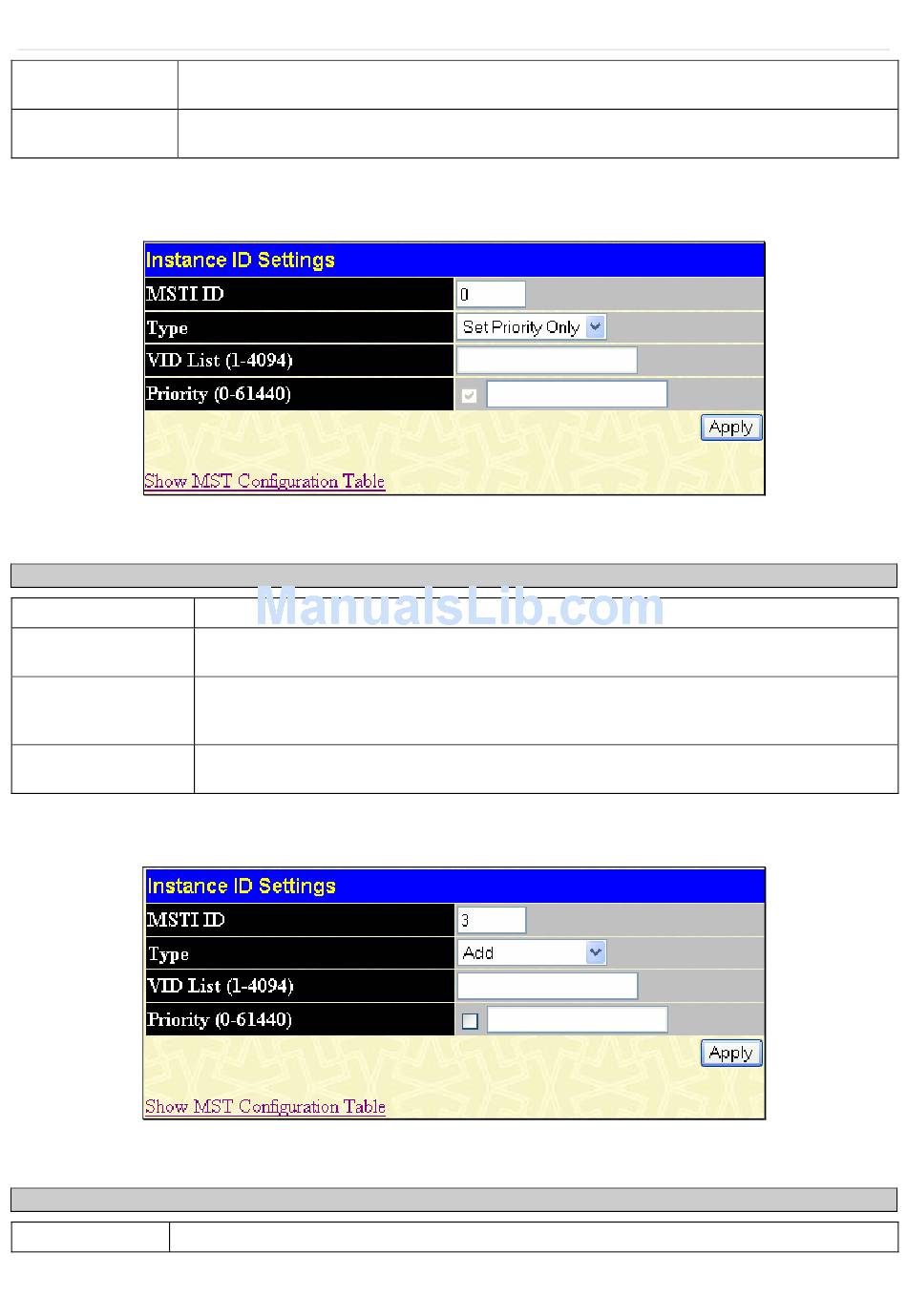

Figure 6- 28. Instance ID Settings window - CIST modify
Description
The MSTI ID of the CIST is 0 and cannot be altered.
The type of configuration about to be processed. This window is used to set the priority for
the CIST only. All other parameters are permanently set and therefore unchangeable.
This field is used to specify the VID range from configured VLANs set on the Switch.
Supported VIDs on the Switch range from ID number 1 to 4094. This field is inoperable when
configuring the CIST.
Select a value between 0 and 61440 to specify the priority for a specified MSTI for forwarding
packets. The lower the value, the higher the priority. This entry must be divisible by 4094.
Figure 6- 29. Instance ID Settings window – modify
