Cables and Connectors

When connecting the Switch to another switch, a bridge or hub, a normal cable is necessary. Please review these products for
matching cable pin assignment.
The following diagrams and tables show the standard RJ-45 receptacle/connector and their pin assignments.
Contact MDI-X Port
1 RD+ (receive)
2 RD- (receive)
3 TD+ (transmit)
4 Not used
5 Not used
6 TD- (transmit)
7 Not used
8 Not used
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

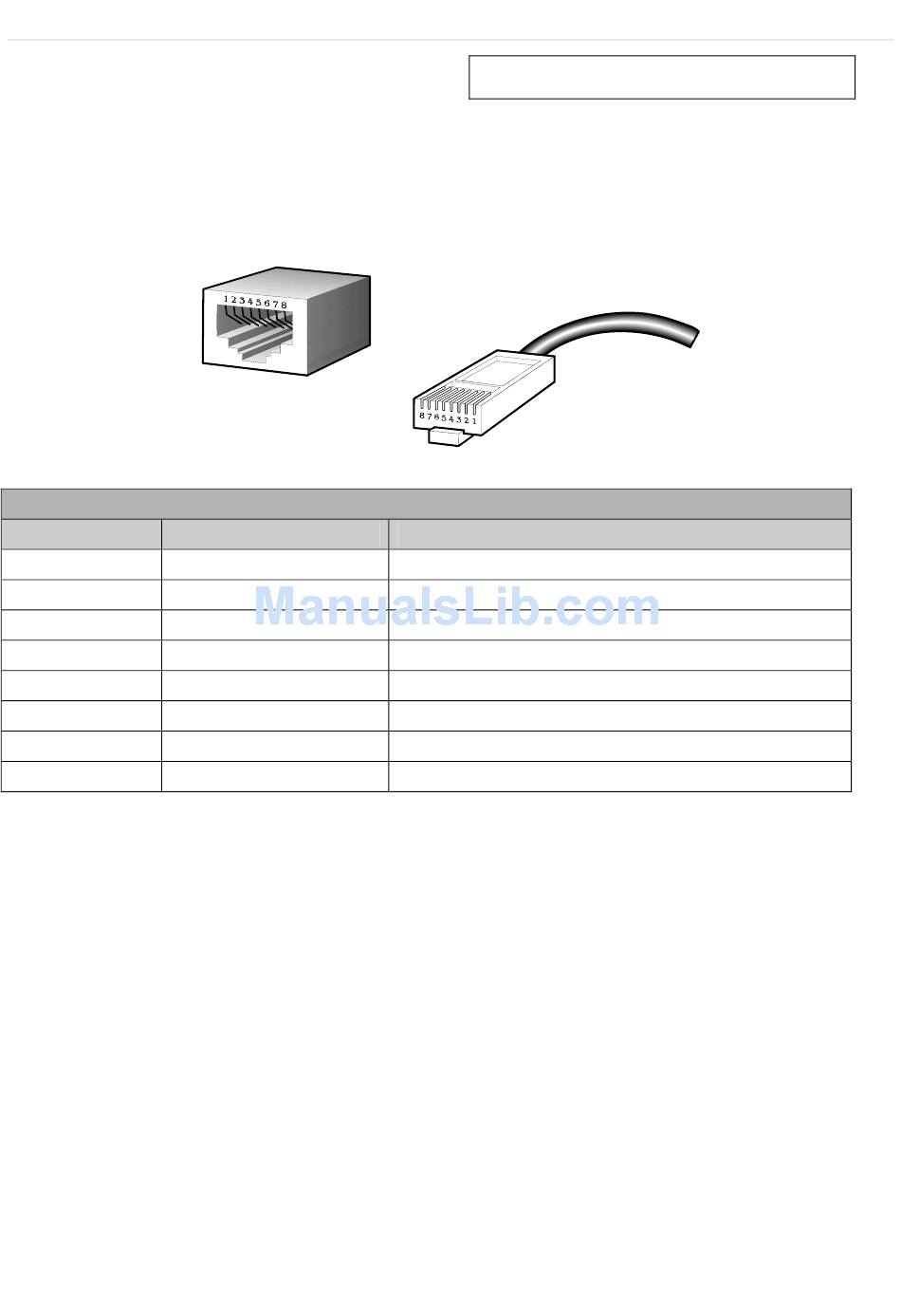

Figure B- 1. The standard RJ-45 port and connector
RJ-45 Pin Assignments
Table B- 1. The standard RJ-45 pin assignments
MDI-II Port
TD+ (transmit)
TD- (transmit)
RD+ (receive)
Not used
Not used
RD- (receive)
Not used
Not used
