xStack DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

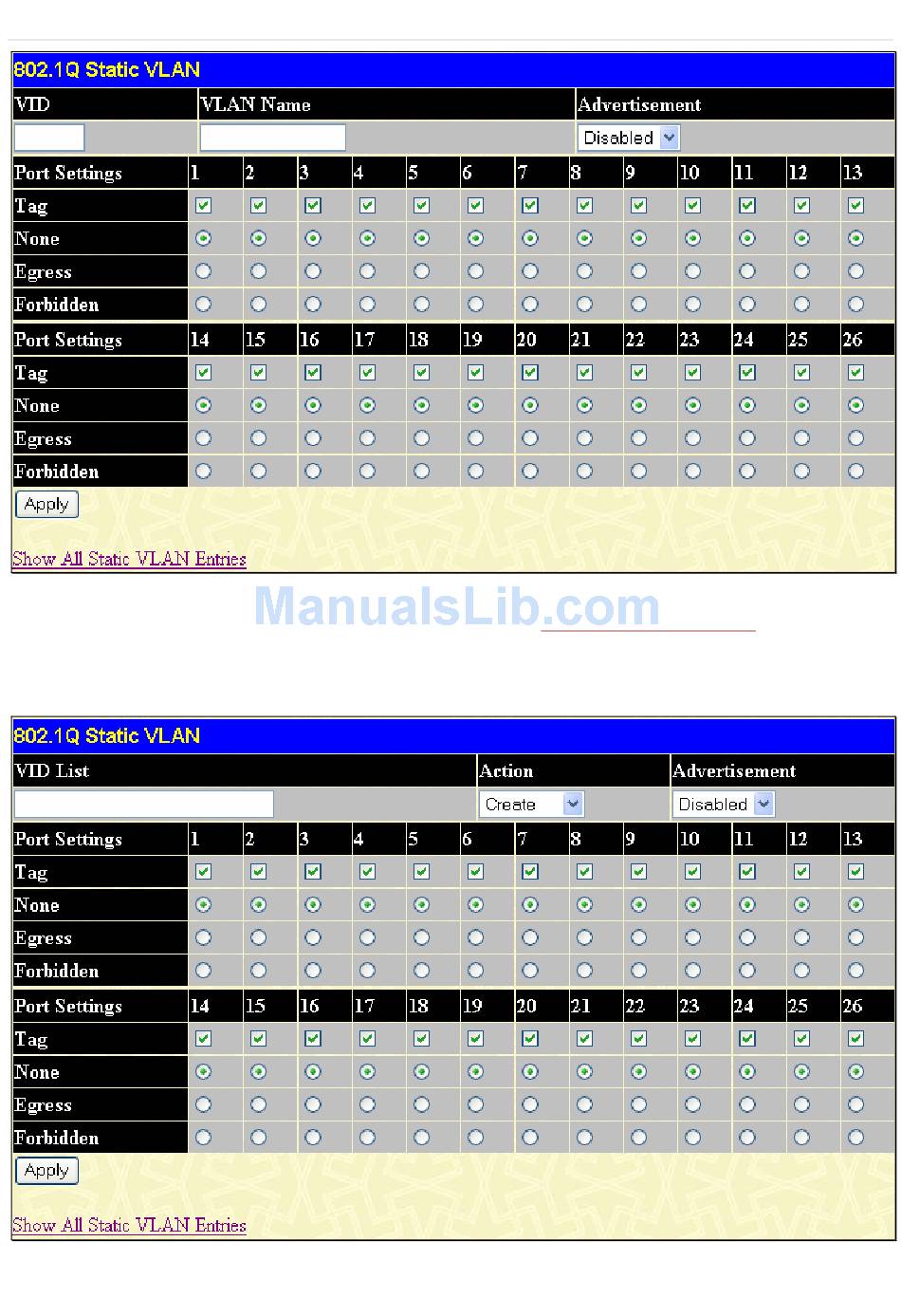

Figure 6- 45. 802.1Q Static VLAN window - Add
To return to the Current 802.1Q Static VLANs Entries window, click the Show All Static VLAN Entries link. To change an
existing 802.1Q VLAN entry, click the Modify button of the corresponding entry you wish to modify. A new menu will appear to
configure the port settings and to assign a unique name and number to the new VLAN. See the table below for a description of the
parameters in the new menu. To configure a VLAN by its VID List, click the Add or configure VLAN by VID List button on
the Current 802.1Q Static VLANs Entries table, the following window will appear.
Figure 6- 46. 802.1Q Static VLAN window - Add or configure VLAN by VID List
74
