xStack
To return to the Access Rule Entry Table click the hyperlinked
Entries click the hyperlinked
To configure the Access Rule for Packet Content Mask, open the Access Profile Table and click Modify for a Packet Content
Mask entry. This will display the Access Rule Table shown below.
The user may search for the settings of a particular Access ID by entering that ID into the Access ID field and clicking Find. The
user may display all Access ID entries by clicking the View All Entry button.
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

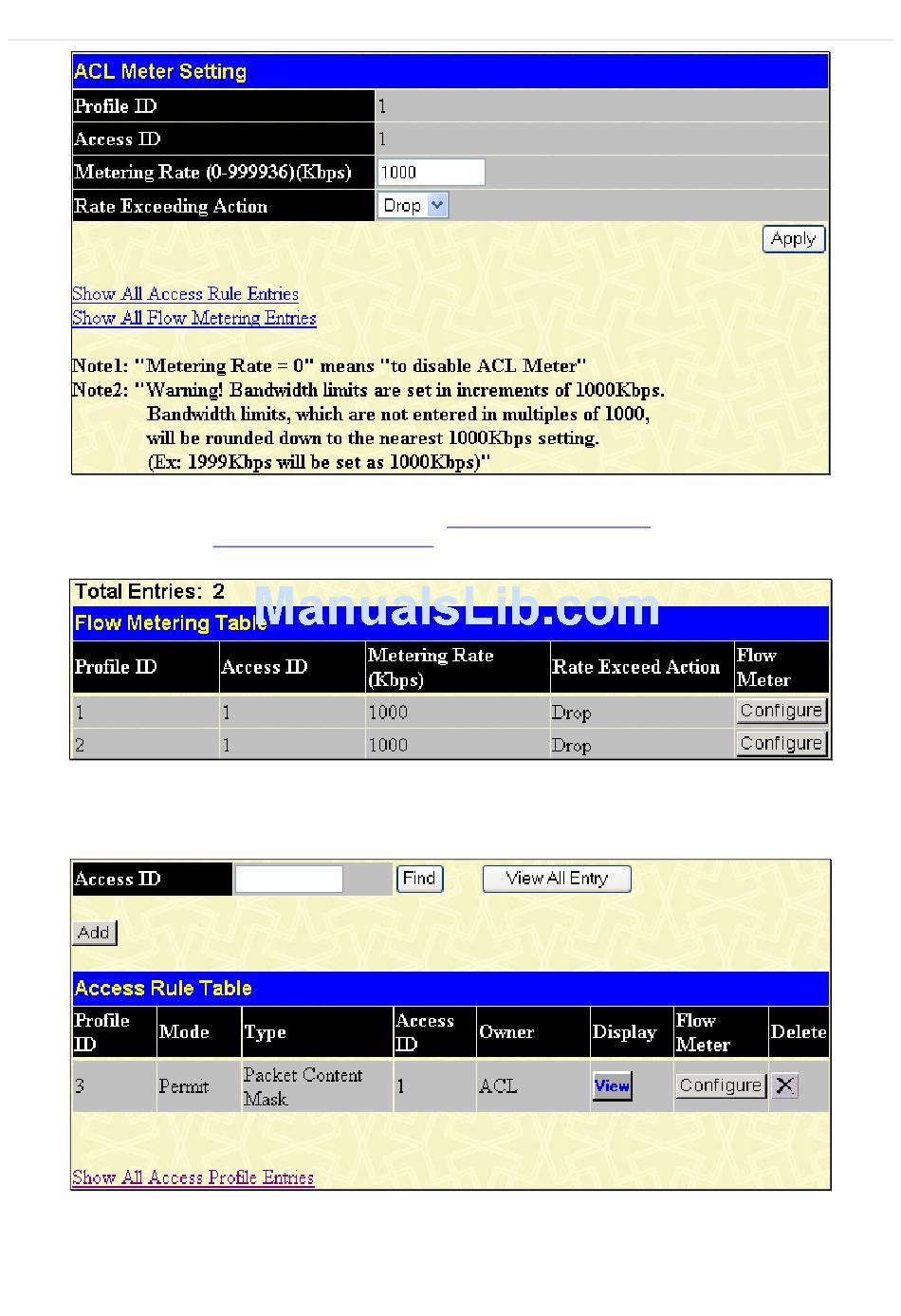

Figure 6- 77 ACL Meter Setting window (Configuration)
Show All Flow Metering Entries
Figure 6- 78 Flow Meter Table window (Display)
Figure 6- 79. Access Rule Table window (Packet Content Mask)
Show All Access Rule Entries. To view the Flow Metering
the following window will be displayed.
106
