xStack DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
To view the particular configurations associated with these two entries, click their corresponding hyperlinked Profile IDs, which
will display the following:

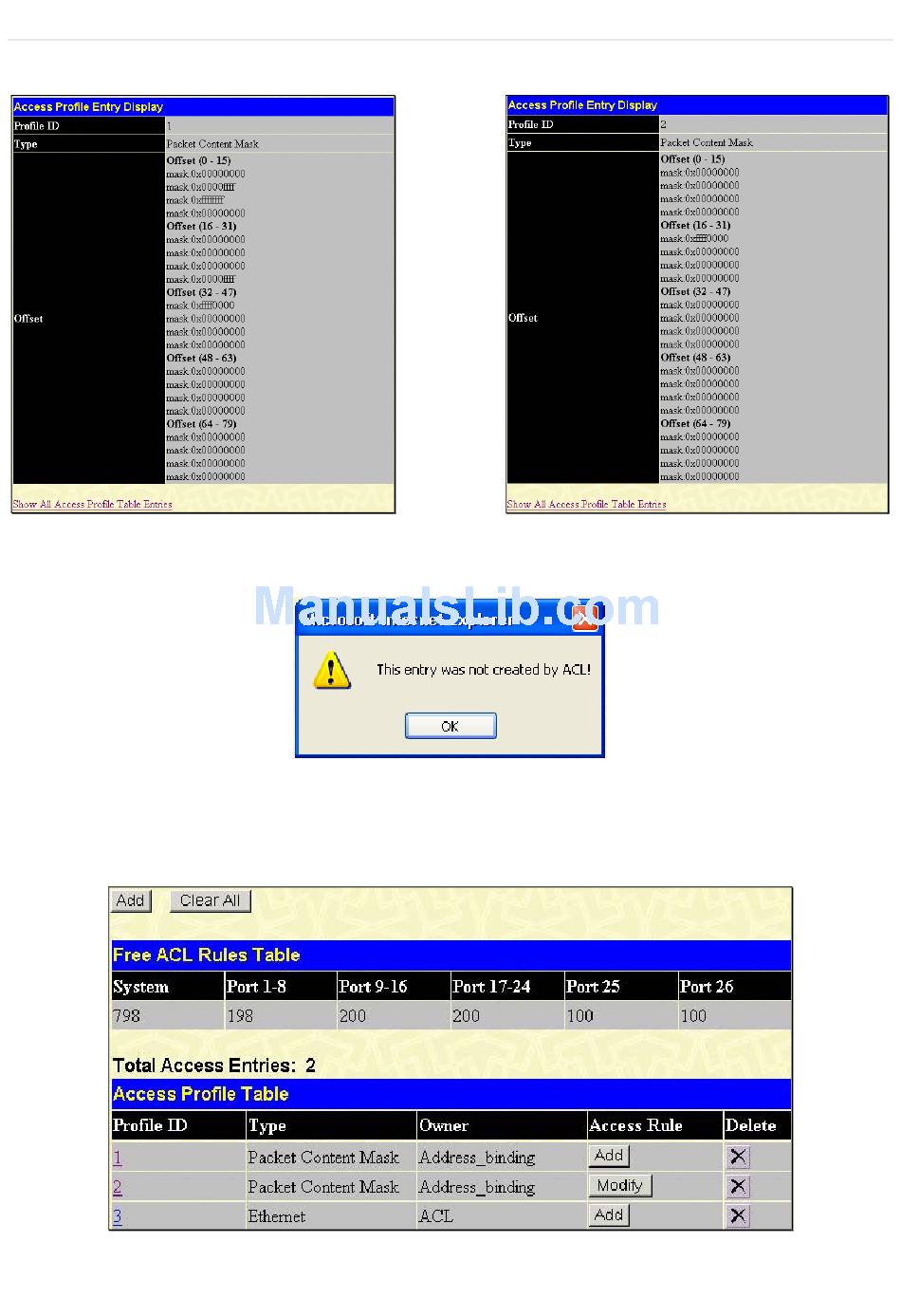

Figure 6- 101. Access Profile Entry Display for IP-MAC ACL Mode Enabled Entries
These two entries cannot be modified or deleted using the Access Profile Table, and any attempt to do so will result in the
following warning message:
Figure 6- 102. IP-MAC ACL Mode warning
The user may only remove these two entries by disabling the ACL Mode in the IP-MAC Binding Port window.
Also, rules will be created for every port on the Switch. To view the ACL rule configurations set for the ACL mode, click the
corresponding Modify button of the entry in the Access Profile Table, which will produce an Access Rule Table as the next
figure shows.
Figure 6- 103. Access Profile Table for IP-MAC Binding rule
