xStack DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
To view the information on a per port basis click the View (Normal) button, which will display the following window:

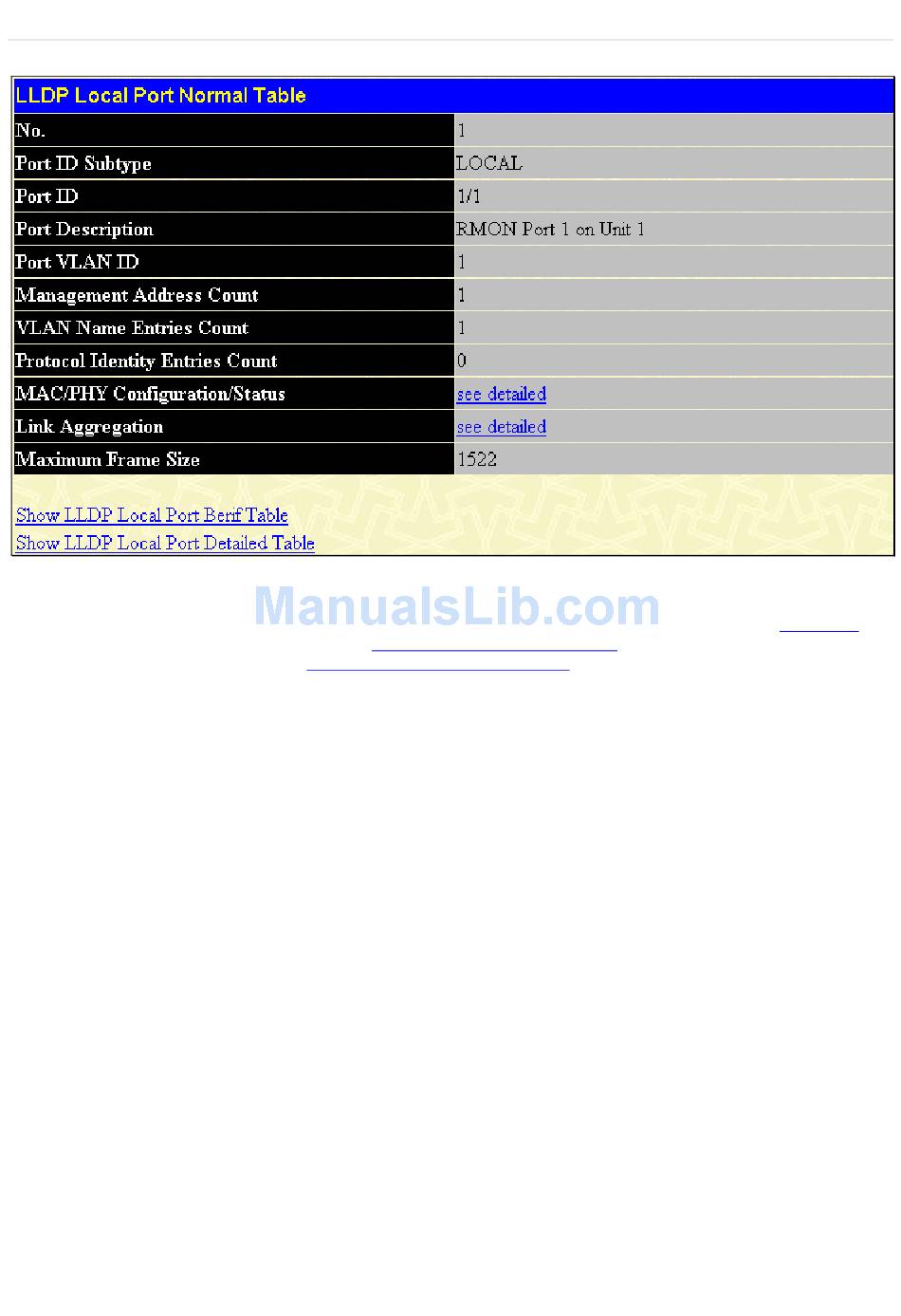

Figure 6- 134. LLDP Local Port Information (Normal) window
To view detailed information about MAC/PHY Configuration/Status or Link Aggregration, click the hyperlinked see detailed. To
return to the previous window click the hyperlinked Show LLDP Local Port Berif Table. To view more detailed information of
individual parameters click the hyperlinked Show LLDP Local Port Detailed Table, which will reveal the following window;
150
