Click Apply to implement the configuration.

Limited IP Multicast Range Setting

The Limited IP Multicast Range Settings enables the user to configure the ports on the switch that will be involved in the
Limited IP Multicast Range. The user can configure the range of multicast ports that will be accepted by the source ports to be
forwarded to the receiver ports. To configure these settings, click Configuration > Limited IP Multicast Range > Limited IP
Multicast Range Settings.
To add a new Limited IP Multicast Range click Add, the following window will be displayed. To search for a range use the drop
down menu to select the port and click Find.
Use the drop down menu to select the range of ports that will be included in the Limited IP Multicast Range, enter the previously
configured name for the range and click Apply. To view the Port Information Table click, the hyperlinked
Information Table.
To remove an entry, click the corresponding
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual

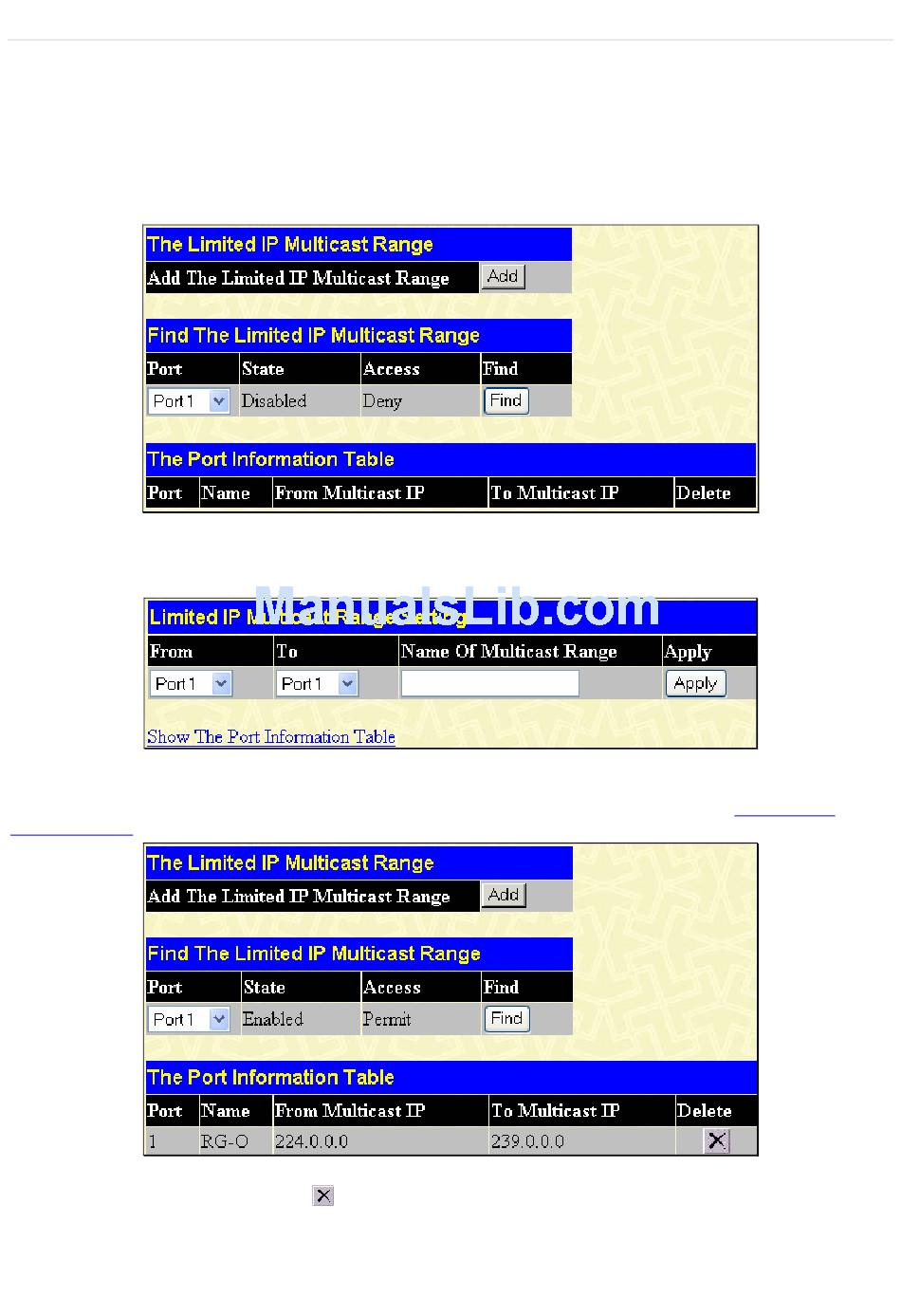

Figure 6- 112 Limited Multicast Range Settings window
Figure 6- 113 Limited Multicast Range Settings window (Add)
Figure 6- 114 Limited Multicast Range Settings window (Add)
button under "Delete" heading.
132
Show The Port
