Click Apply to implement changes made.
To establish the rule for a previously created CPU Access Profile:
Click Configuraion > ACL > CPU Interface Filtering to open the CPU Interface Filtering Profile Table. In this window, the
user may add a rule to a previously created CPU access profile by clicking the corresponding Add Rule button.
Click the Add Rule button to continue on to the CPU Interface Filtering Rule Table window. A new window, for Ethernet, IP
and Packet Content will open as shown in the examples below.
To change a rule for a previously created CPU Access Profile Rule:
In this window, the user may change a rule that has been previously created by clicking the corresponding Modify button of the
entry.
The CPU Interface Filtering Rule Table will open. Click
The following window is the configuration page for the Ethernet Rule.
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
packet to the 15th byte.
value (16-31) – Enter a value in hex form to mask the packet from byte 16 to byte 31.
•
value (32-47) – Enter a value in hex form to mask the packet from byte 32 to byte 47.
•
value (48-63) – Enter a value in hex form to mask the packet from byte 48 to byte 63.
•
value (64-79) – Enter a value in hex form to mask the packet from byte 64 to byte 79.
•

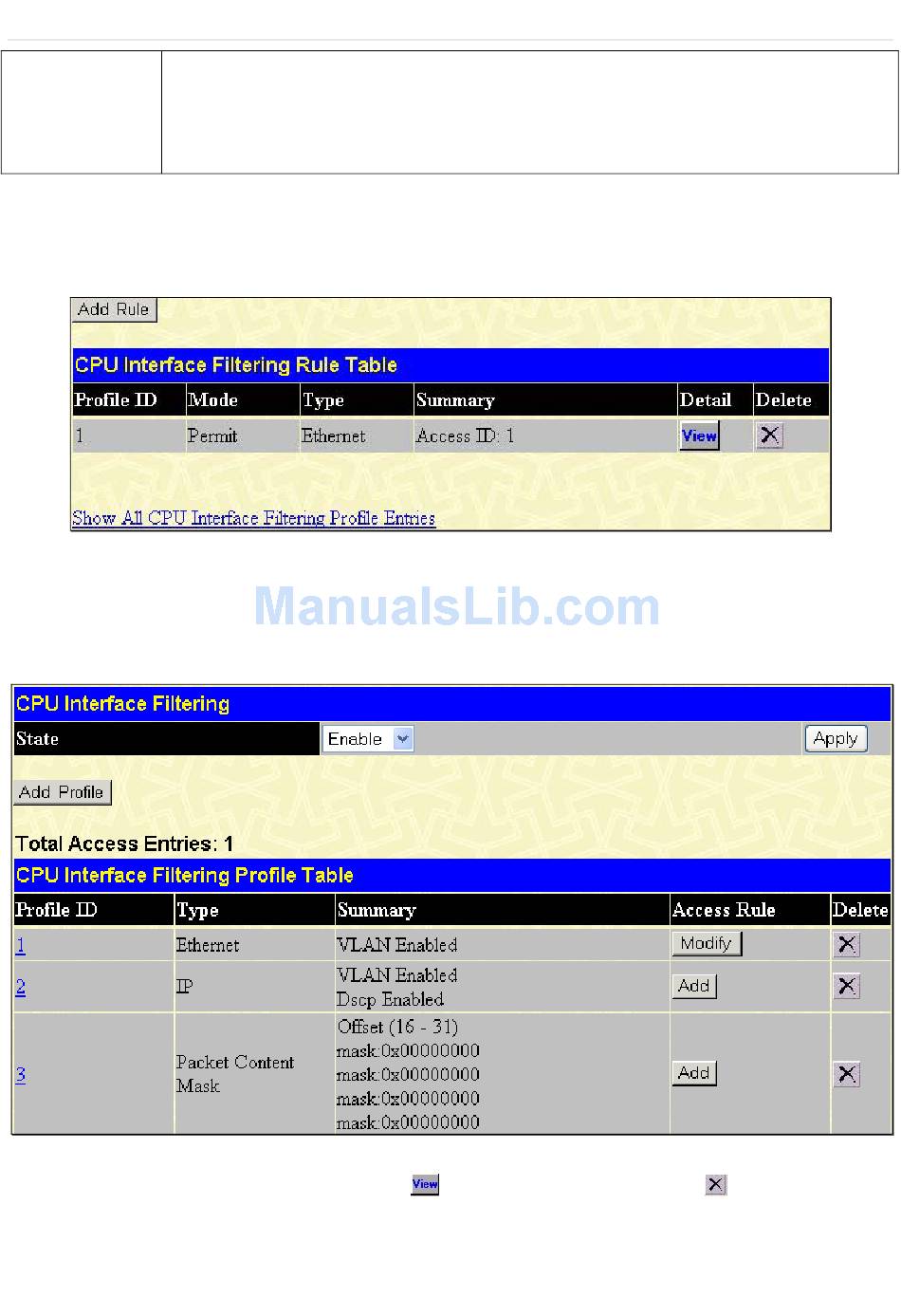

Figure 6- 91. CPU Interface Filtering Rule Table
Figure 6- 92. CPU Interface Filtering window
to observe a previously created rule or
117
to delete.
