802.1p Default Priority

The Switch allows the assignment of a default 802.1p
priority to each port on the Switch. This window allows
you to assign a default 802.1p priority to any given port
on the Switch. The priority queues are numbered from
0, the lowest priority, to 7, the highest priority. Click
Apply to implement
Configuration > QoS > 802.1p Default Priority, to
view the window shown to the right.

802.1p User Priority

The DES-3500 Series switches allows the
assignment of a user priority to each of the
802.1p priorities. Once you have assigned a
priority to the port groups on the Switch, you can
then assign this Class to each of the 4 levels of
802.1p priorities. Click Apply to set your
changes. To view
Configuration > QoS > 802.1p User Priority.
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
your settings. Click
this window click,

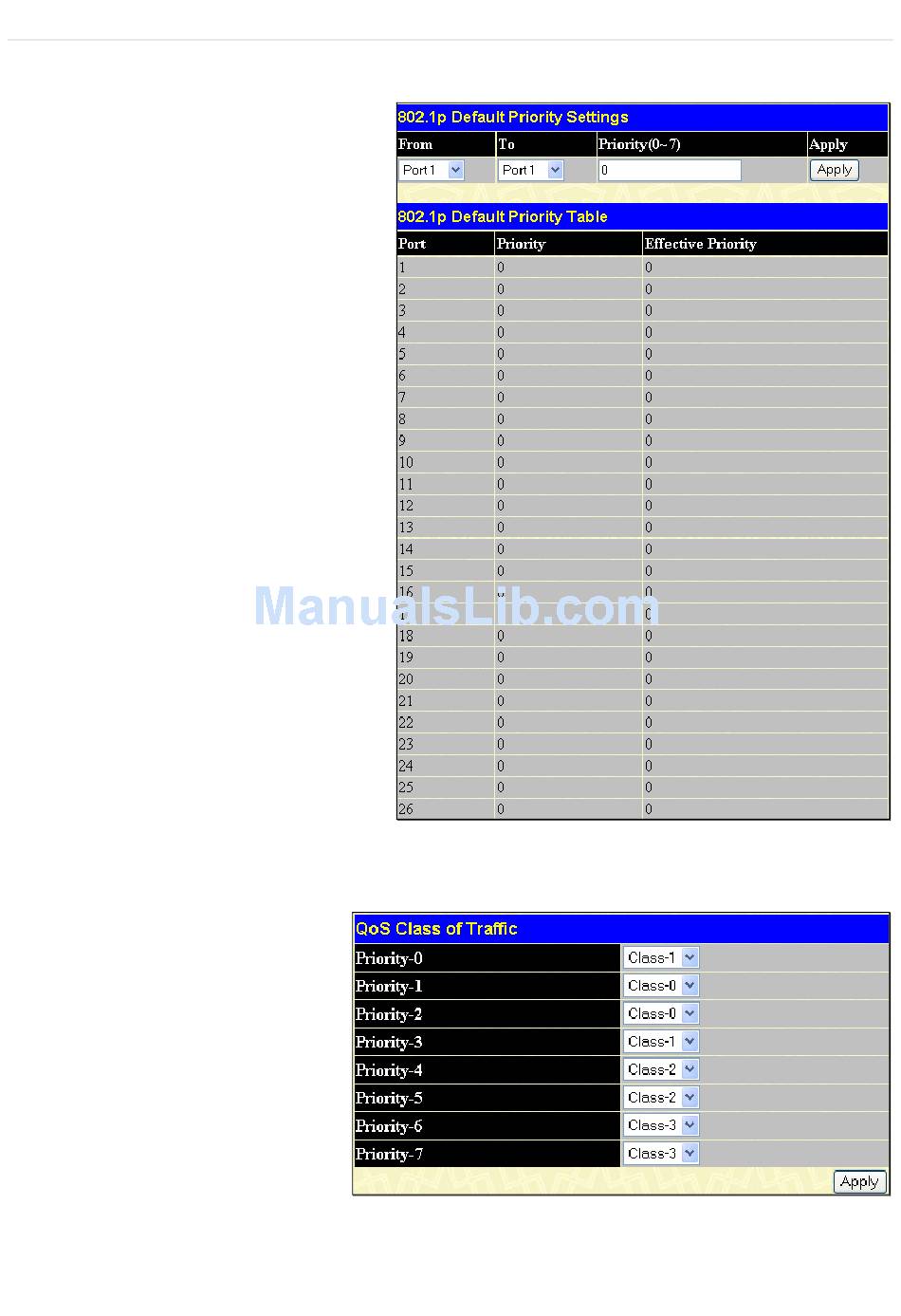

Figure 6- 54. 802.1p Default Priority Settings window
Figure 6- 55. QoS Class of Traffic window
