Replacing a Power Supply

See Figure 4-25.
1. Observe the warnings and cautions on page 3, "Safety Guidelines."
2. Slide the power supply through the back of the system.
3. Attach the power supply to the system chassis with the four screws you
saved. Tighten the screws firmly (6.0 inch-pounds).
M440LX Server System Product Guide

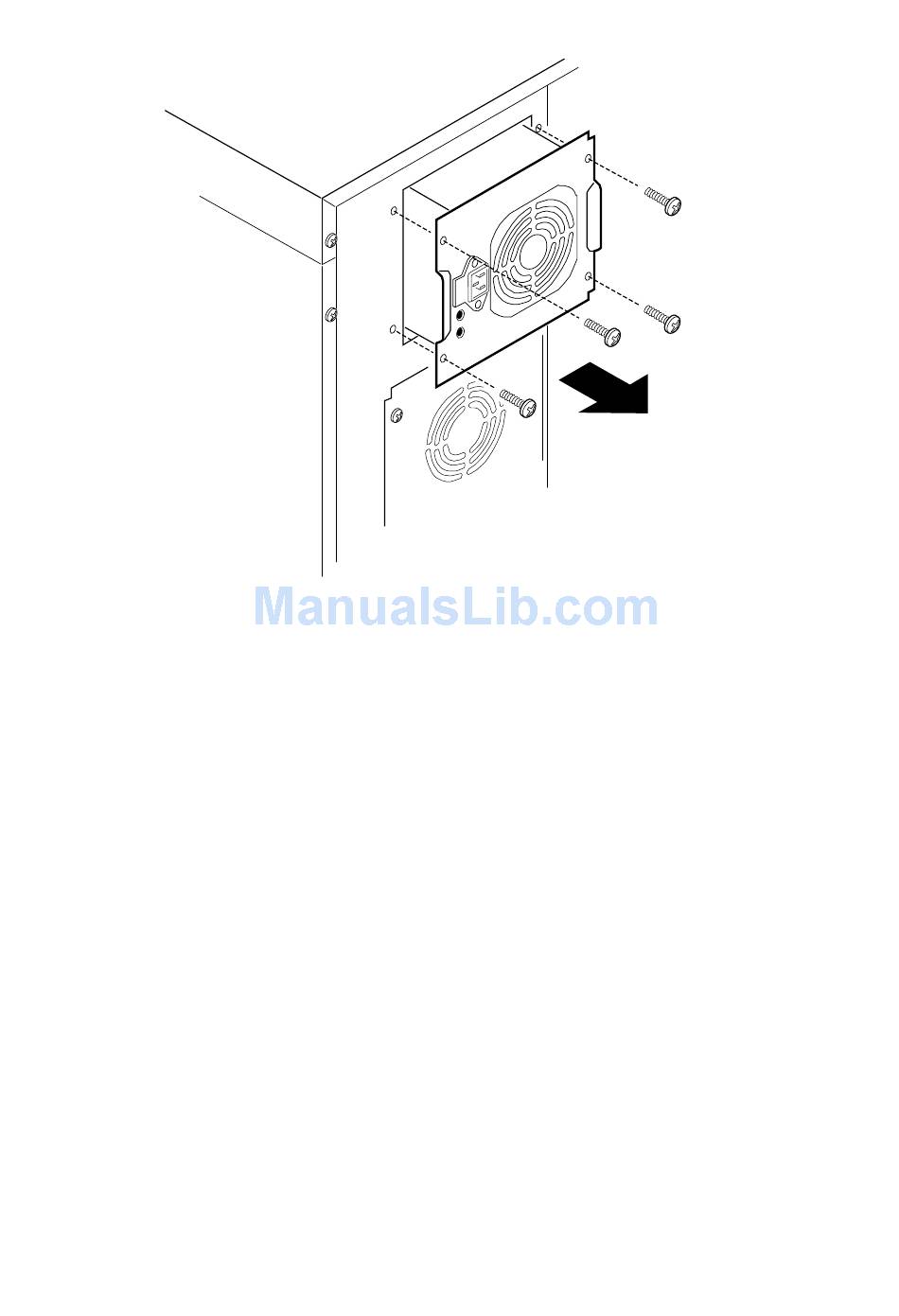

Figure 4-25. Removing a Power Supply
OM05765
