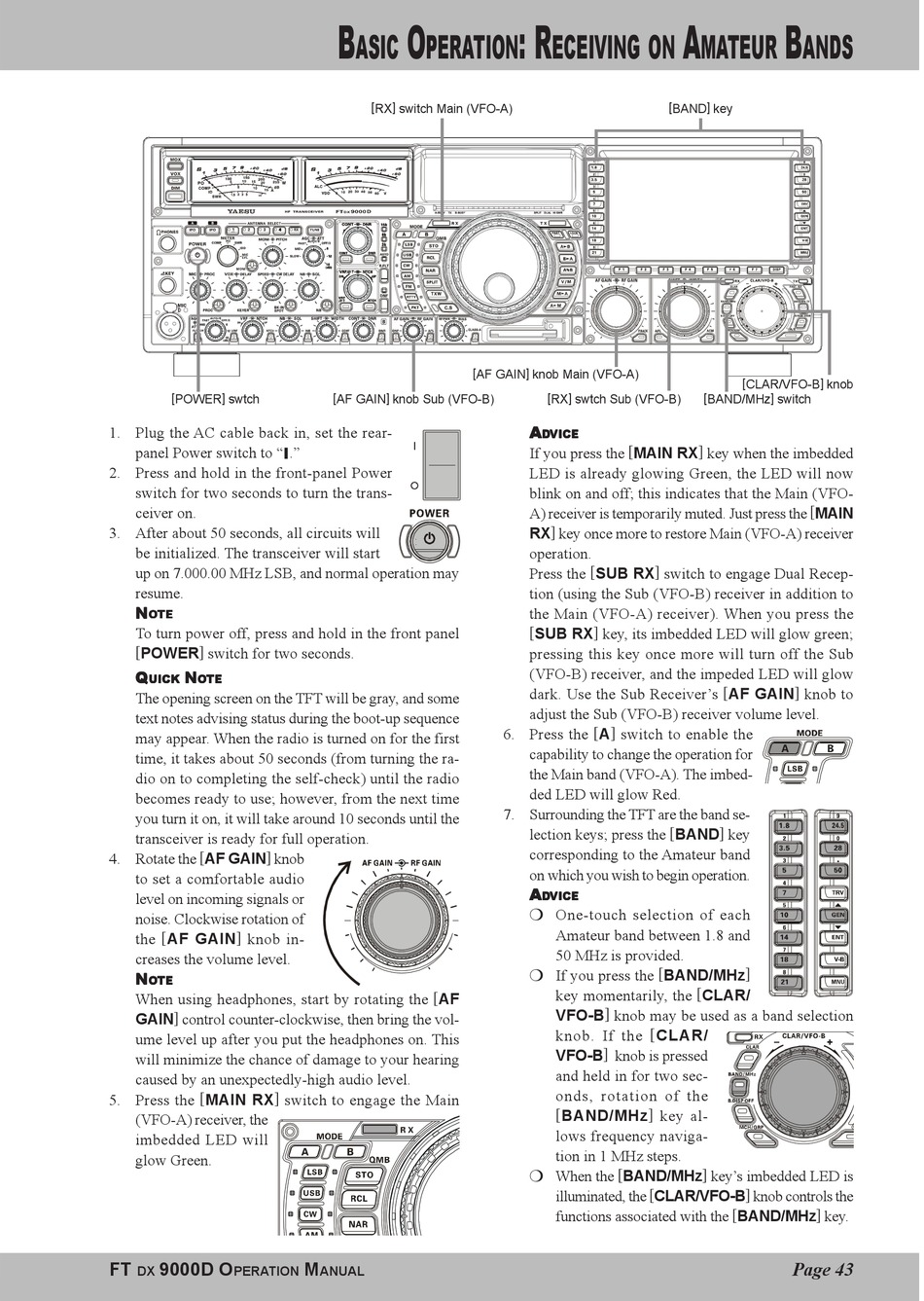

Basic Operation; Operation - Yaesu FTDX9000D - DATA MANAGEMENT Operation Manual

[ POWER ] swtch
1. Plug the AC cable back in, set the rear-
panel Power switch to " I ."
2. Press and hold in the front-panel Power
switch for two seconds to turn the trans-
ceiver on.
3. After about 50 seconds, all circuits will
be initialized. The transceiver will start
up on 7.000.00 MHz LSB, and normal operation may
resume.
N N N N N
O O O O O TE TE TE TE
TE
To turn power off, press and hold in the front panel
[ POWER ] switch for two seconds.
Q Q Q Q Q N N N N N
UICK UICK UICK UICK UICK O O O O O TE TE TE TE TE
The opening screen on the TFT will be gray, and some
text notes advising status during the boot-up sequence
may appear. When the radio is turned on for the first
time, it takes about 50 seconds (from turning the ra-
dio on to completing the self-check) until the radio
becomes ready to use; however, from the next time
you turn it on, it will take around 10 seconds until the
transceiver is ready for full operation.
4. Rotate the [ AF GAIN ] knob
to set a comfortable audio
level on incoming signals or
noise. Clockwise rotation of
the [ AF GAIN ] knob in-
creases the volume level.
N N N N N
O O O O O TE TE TE
TE TE
When using headphones, start by rotating the [ AF
GAIN ] control counter-clockwise, then bring the vol-
ume level up after you put the headphones on. This
will minimize the chance of damage to your hearing
caused by an unexpectedly-high audio level.
5. Press the [ MAIN RX ] switch to engage the Main
(VFO-A) receiver, the
imbedded LED will
glow Green.
FT 9000D O
DX PERATION
B O
ASIC PERATION
[ RX ] switch Main (VFO-A)
[ AF GAIN ] knob Main (VFO-A)
[ AF GAIN ] knob Sub (VFO-B)
M
ANUAL
: R
ECEIVING ON
[ BAND ] key
[ RX ] swtch Sub (VFO-B)
A A A A A
D D D D D VICE VICE VICE VICE VICE
If you press the [ MAIN RX ] key when the imbedded
LED is already glowing Green, the LED will now
blink on and off; this indicates that the Main (VFO-
A) receiver is temporarily muted. Just press the [ MAIN
RX ] key once more to restore Main (VFO-A) receiver

operation.

Press the [ SUB RX ] switch to engage Dual Recep-
tion (using the Sub (VFO-B) receiver in addition to
the Main (VFO-A) receiver). When you press the
[ SUB RX ] key, its imbedded LED will glow green;
pressing this key once more will turn off the Sub
(VFO-B) receiver, and the impeded LED will glow
dark. Use the Sub Receiver's [ AF GAIN ] knob to
adjust the Sub (VFO-B) receiver volume level.
6. Press the [ A ] switch to enable the
capability to change the operation for
the Main band (VFO-A). The imbed-
ded LED will glow Red.
7. Surrounding the TFT are the band se-
lection keys; press the [ BAND ] key
corresponding to the Amateur band
on which you wish to begin operation.
A A A A A
D D D D D VICE VICE VICE VICE
VICE
One-touch selection of each
Amateur band between 1.8 and
50 MHz is provided.
If you press the [ BAND/MHz ]
key momentarily, the [ CLAR/
VFO-B ] knob may be used as a band selection
knob. If the [ CLAR/
VFO-B ] knob is pressed
and held in for two sec-
onds, rotation of the
[ BAND/MHz ] key al-
lows frequency naviga-
tion in 1 MHz steps.
When the [ BAND/MHz ] key's imbedded LED is
illuminated, the [ CLAR/VFO-B ] knob controls the
functions associated with the [ BAND/MHz ] key.
A B
MATEUR ANDS
[ CLAR/VFO-B ] knob
[ BAND/MHz ] switch
