Quick Split Operation - Yaesu FTDX9000D - DATA MANAGEMENT Operation Manual

C T
ONVENIENT RANSMITTER
The Quick Split feature allows you to set a one-touch offset of +5 kHz to be applied to your radio's transmit fre-
quency on the Sub VFO, compared to the Main (VFO-A) frequency.
1. Start with regular transceiver operation on the Main
(VFO-A) band.
MAIN(VFO-A)
[ RX ] switch "ON" (LED glows Green)
[ TX ] switch "ON" (LED glows Red)
SUB(VFO-B)
[ RX ] switch "OFF" (LED Off)
[ TX ] switch "OFF" (LED Off)
2. Press and hold in the [ SPLIT ] switch for two sec-
onds to engage the Quick Split feature, and apply
a frequency 5 kHz above the Main (VFO-A) fre-
quency to the Sub (VFO-B) frequency register.
The VFO configuration will then be:
MAIN(VFO-A)
[ RX ] switch "ON" (LED glows Green)
[ TX ] switch "OFF" (LED Off)
SUB(VFO-B)
[ RX ] switch "OFF" (LED Off)
[ TX ] switch "ON" (LED glows Red)
3. Press and hold in the [ SPLIT ] switch for two sec-
onds to increment the Sub (VFO-B) frequency an-
other +5 kHz.
Page 104
A
CCESSORIES
S -F
PLIT REQUENCY

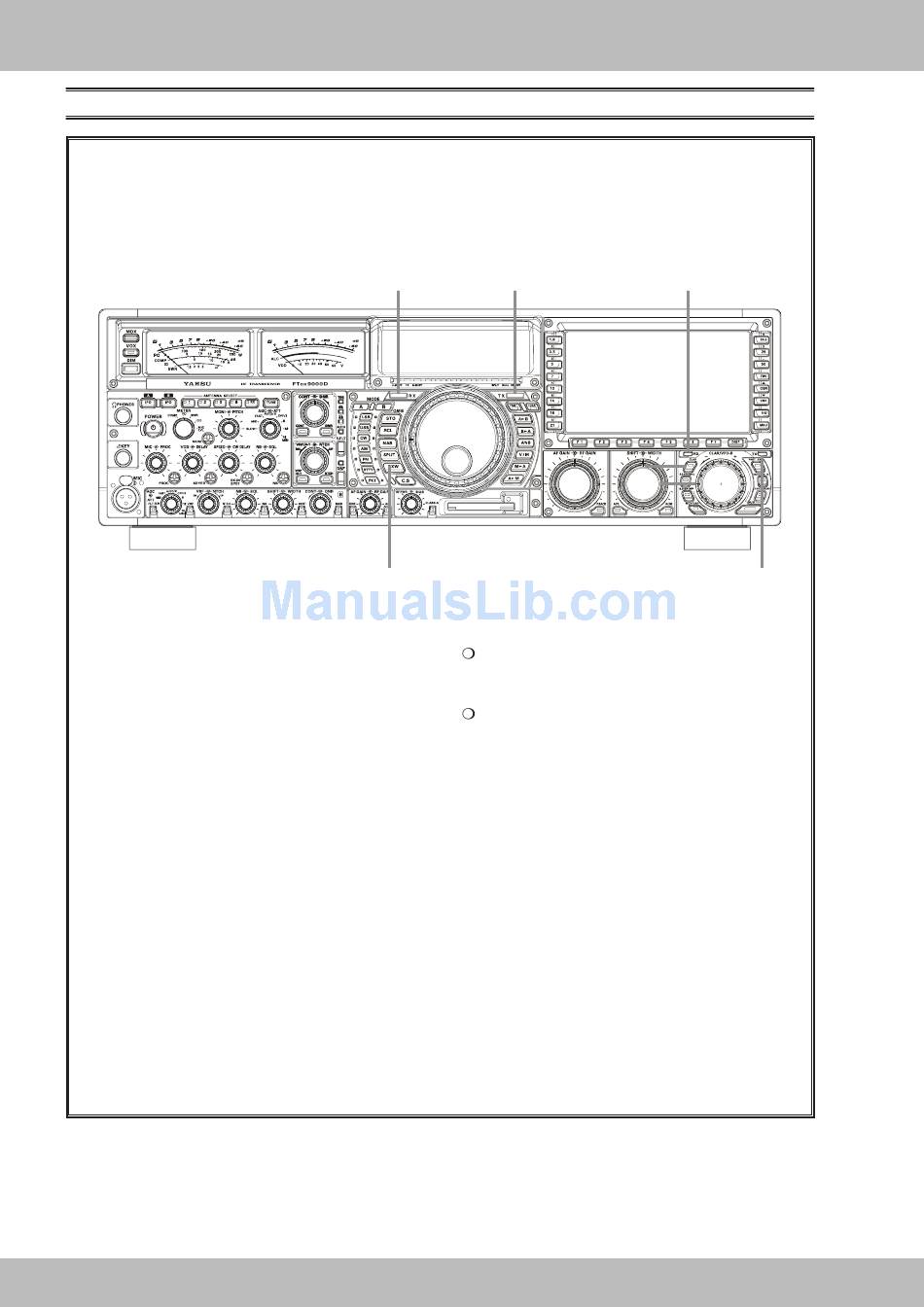

Quick Split Operation

MAIN (VFO-A)
[ RX ] switch "ON" [ TX ] switch "OFF"
(LED glows Green)
[ SPLIT ] switch
Q Q Q Q Q
O
PERATION
MAIN (VFO-A)
[ RX ] switch "OFF"
(LED OFF)
SUB (VFO-B) [ TX ] switch "ON"
P P P P P
UICK UICK UICK UICK UICK OINT OINT OINT OINT OINT
The operating mode applied to the Sub (VFO-B)
register will be the same as that in use on the Main
(VFO-A) register.
The offset of the Sub VFO from the Main VFO is
programmed via the Menu, and is set to +5 kHz at
the factory. Other offsets may be selected, how-
ever, using the following procedure:
1. Press the [ MNU ] switch to enter the Menu
mode.
2. Rotate the [ Main Tuning Dial ] knob to select
Menu item "GENERAL 039 QUICK SPLIT
FREQ."
3. Rotate the [ CLAR/VFO-B ] knob to select the
desired offset.
The available selections are
–20 kHz ~ 0 kHz ~ +20 kHz
(factory default: +5 kHz).
4. When you have completed all adjustments,
press and hold in the [ MNU ] switch for two
seconds to save the new setting and exit to nor-
mal operation. If you only press the [ MNU ] key
momentarily to exit, any changes you per-
formed will not be stored.
FT 9000D O
DX
SUB (VFO-B)
(LED OFF)
(LED glows Red)
M
PERATION ANUAL
