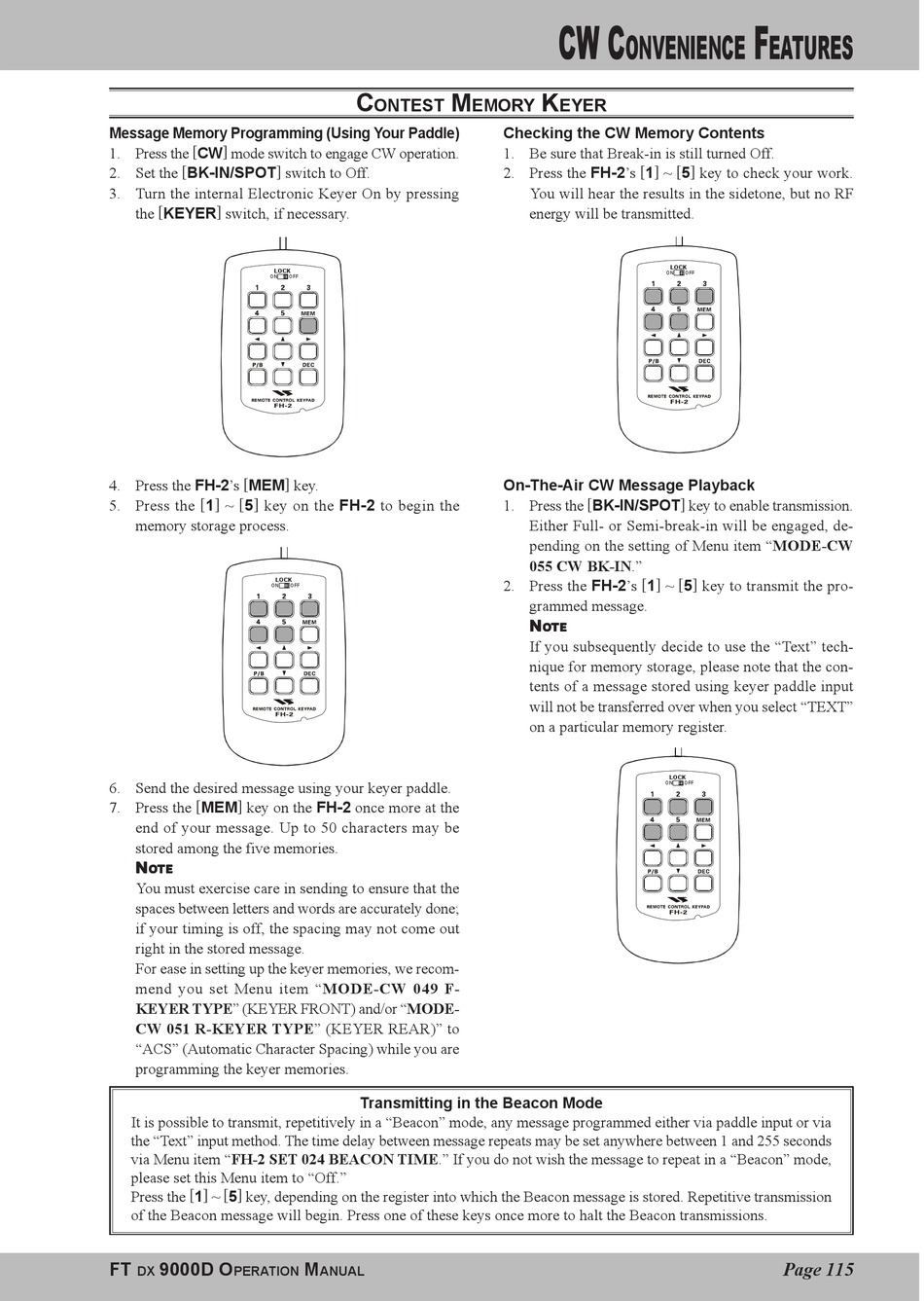

Message Memory Programming (Using Your Paddle)
1. Press the [ CW ] mode switch to engage CW operation.
2. Set the [ BK-IN/SPOT ] switch to Off.
3. Turn the internal Electronic Keyer On by pressing
the [ KEYER ] switch, if necessary.
LOCK
ON
4. Press the FH-2's [ MEM ] key.
5. Press the [ 1 ] ~ [ 5 ] key on the FH-2 to begin the
memory storage process.
LOCK
ON
6. Send the desired message using your keyer paddle.
7. Press the [ MEM ] key on the FH-2 once more at the
end of your message. Up to 50 characters may be
stored among the five memories.
N N N N N
O O O O O TE TE TE TE TE
You must exercise care in sending to ensure that the
spaces between letters and words are accurately done;
if your timing is off, the spacing may not come out
right in the stored message.
For ease in setting up the keyer memories, we recom-
mend you set Menu item "MODE-CW 049 F-
KEYER TYPE" (KEYER FRONT) and/or "MODE-
CW 051 R-KEYER TYPE" (KEYER REAR)" to
"ACS" (Automatic Character Spacing) while you are
programming the keyer memories.
It is possible to transmit, repetitively in a "Beacon" mode, any message programmed either via paddle input or via
the "Text" input method. The time delay between message repeats may be set anywhere between 1 and 255 seconds
via Menu item "FH-2 SET 024 BEACON TIME." If you do not wish the message to repeat in a "Beacon" mode,
please set this Menu item to "Off."
Press the [ 1 ] ~ [ 5 ] key, depending on the register into which the Beacon message is stored. Repetitive transmission
of the Beacon message will begin. Press one of these keys once more to halt the Beacon transmissions.
FT 9000D O
DX PERATION
C M
ONTEST
OFF
OFF
Transmitting in the Beacon Mode
M
ANUAL
CW C
ONVENIENCE
K
EMORY EYER
Checking the CW Memory Contents
1. Be sure that Break-in is still turned Off.
2. Press the FH-2's [ 1 ] ~ [ 5 ] key to check your work.
You will hear the results in the sidetone, but no RF
energy will be transmitted.
On-The-Air CW Message Playback
1. Press the [ BK-IN/SPOT ] key to enable transmission.
Either Full- or Semi-break-in will be engaged, de-
pending on the setting of Menu item "MODE-CW
055 CW BK-IN."
2. Press the FH-2's [ 1 ] ~ [ 5 ] key to transmit the pro-
grammed message.
N N N N N
O O O O O TE TE TE TE TE
If you subsequently decide to use the "Text" tech-
nique for memory storage, please note that the con-
tents of a message stored using keyer paddle input
will not be transferred over when you select "TEXT"
on a particular memory register.
F
EATURES
LOCK
ON OFF
LOCK
ON OFF
