Yaesu FTDX-9000MP Operation Manual

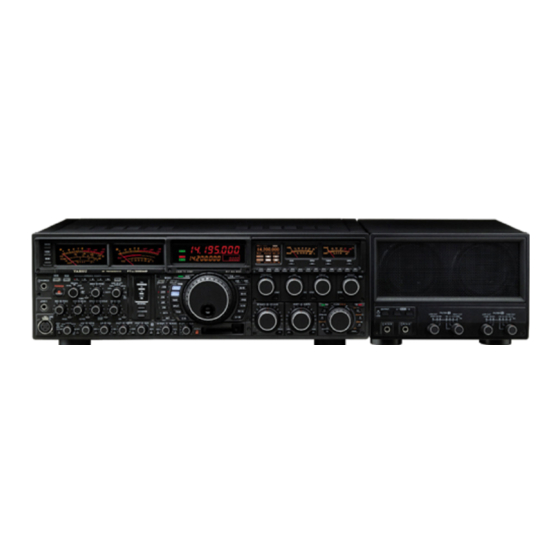

Yaesu ftdx-9000mp hf transceiver: operation manual
Hide thumbs Also See for FTDX-9000MP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
FT
9000MP
DX
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTDX-9000MP and is the answer not in the manual?

Questions and answers

Related Manuals for Yaesu FTDX-9000MP

Summary of Contents for Yaesu FTDX-9000MP

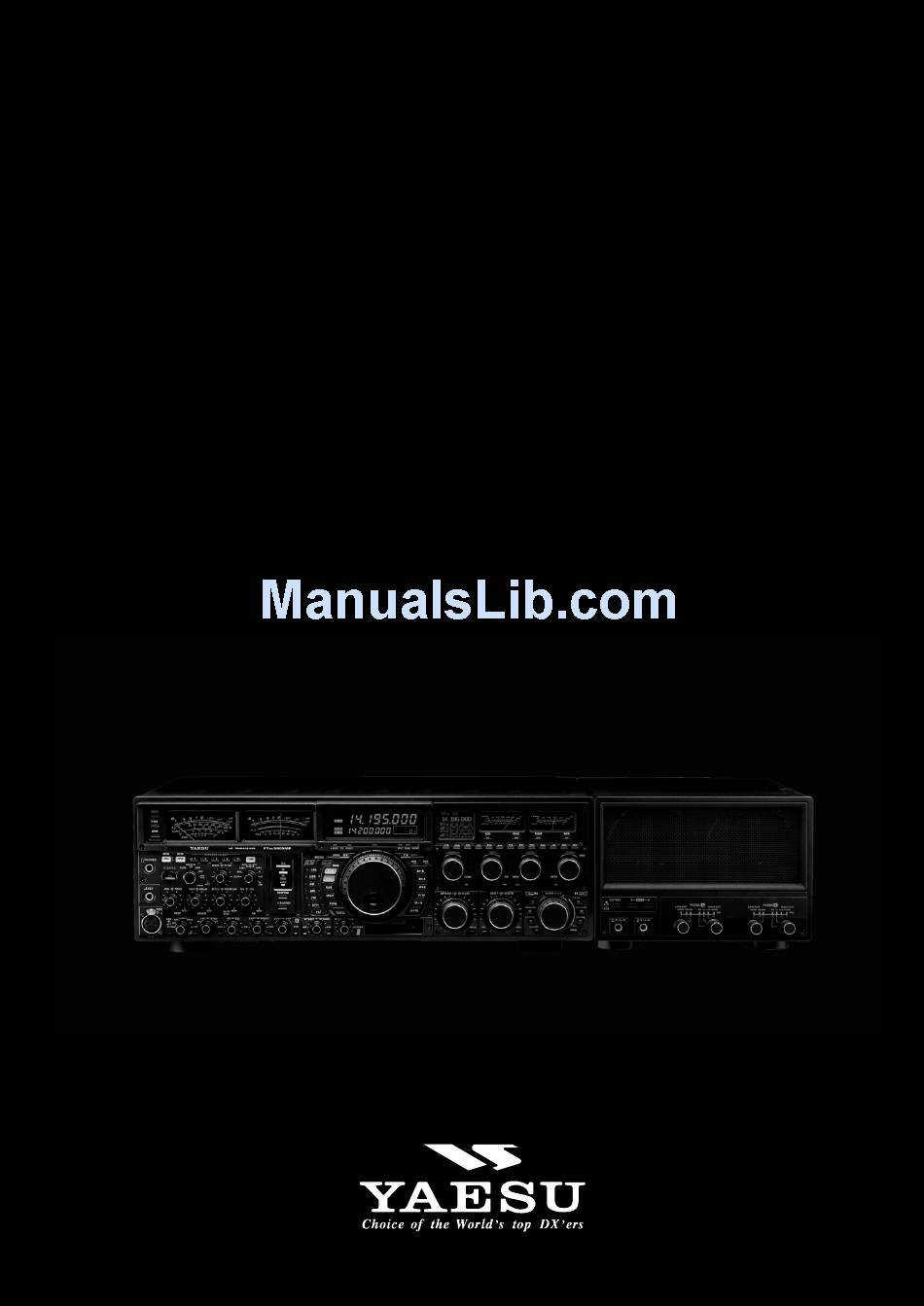

  • Page 1 9000MP Operation Manual...

  • Page 3: General Description

    ENERAL ESCRIPTION We wish to take this opportunity to thank you for your purchase of the FT 9000MP Transceiver! The FT 9000MP is the culmination of a four-year design project. But it also is the product of our company’s fifty years of engineering, design, and manufacturing know how.

  • Page 4: Table Of Contents

    ABLE OF ONTENTS General Description ..........1 Basic Operation: Receiving on Amateur Bands ......43 About This Manual..............1 Conventions Used in This Manual .......... 1 Operation ................43 Operation on 60-Meter (5 MHz) Band (U.S. version only) .. 46 Before You Begin.
  • Page 5 ABLE OF ONTENTS SSB/AM Mode Transmission Convenient Memory Functions ...... 114 (Let's Look at the Transmitter. . .) ..... 82 QMB (Quick Memory Bank) ......115 Phantom Voltage for Condenser Microphones ...... 83 QMB Channel Storage ............115 Using the Automatic Antenna Tuner ....84 QMB Channel Recall ............

  • Page 6: Before You Begin

    Before You Begin. . . 1. Connecting AC Power There are two power switches on this transceiver, one each on the rear and front panels. If the rear panel’s Power switch is not turned on, the front panel Power switch will not function. Ì...

  • Page 7: Connecting And Selecting The Microphone

    Before You Begin. . . 3. Connecting and Selecting the Microphone The FT 9000MP comes equipped with two microphone connectors: the front panel includes a “Cannon” (XLR) three- pin connector, while the rear panel provides an eight-pin (round) connector. As shipped from the factory, the front panel XLR connector is engaged for operation, and the rear panel 8-pin microphone jack is not connected.

  • Page 8: Adjusting The Main Dial Torque

    Before You Begin. . . 5. Adjusting the Main Dial Torque The torque (drag) of the Main Tuning Dial may be adjusted according to your preferences. Simply hold down the rear skirt of the knob, and while holding it in place rotate the Main Dial itself to the right to reduce the drag, or to the left to increase the drag.

  • Page 9: Resetting The Microprocessor

    Before You Begin. . . 7. Resetting the Microprocessor Ë Resetting Memories (Only) Use this procedure to reset (clear out) the Memory channels previously stored, without affecting any configuration changes you may have made to the Menu settings. 1. Press the front panel’s POWER switch to turn the transceiver off.

  • Page 10: Features

    Ultra-strong Receiver Front End YAESU’s outstanding RF-stage filtering establishes a clean performance that allows the rest of the receiver to perform at a high level. By reducing the ingress of energy from very strong sources like Shortwave Broadcast, local AM/FM/TV stations, and other signal sources, the overall purity of the spectrum delivered to the RF Amplifier first mixer, and subsequent stages is maintained, and the system Blocking Dynamic Range is also enhanced.
  • Page 11 VRF (Variable RF Filter) Preselector Filter (Page 66) Yaesu’s robust VRF (Variable RF Filter) preselector provides a relay-selected RF selectivity much tighter than that afforded by tradi- tional bandpass filter networks. Sealed relays select heavy-duty inductors and capacitors, providing a tracking RF filter that protects the RF amplifier and following stages from strong out-of-band energy.

  • Page 12: Accessories

    CCESSORIES UPPLIED CCESSORIES FPS-9000H FH-2 CF Card AC Power Cord External Power Supply Remote Control Keypad (64 MB: Q9000838) Microphone Extend Cable with Dual Speakers and (8 Pin Modular) Audio Filters H Operating Manual 1: AC Power Cord H Warranty Card USA: T9017882 Europe:...

  • Page 13: Options

    PTIONS VAILABLE PTIONS MD-200 Ultra-High-Fidelity Desk-Top Microphone Lightweight Stereo Headhones MD-200 YH-77STA Desk-Top Microphone MD-100 Linear Amplifier / AC Power Supply VL-1000 / VP-1000 Customization Options H RF µ-Tuning Unit A MTU-160 (160 m Band) H RF µ-Tuning Unit B MTU-80/40 (80/40 m Bands) H RF µ-Tuning Unit C MTU-30/20 (30/20 m Bands)

  • Page 14: Installation And Interconnections

    NSTALLATION AND NTERCONNECTIONS NTENNA ONSIDERATIONS The FT 9000MP is designed for use with any antenna system providing a 50 Ohm resistive impedance at the desired operating frequency. While minor excursions from the 50-Ohm specification are of no consequence, the transceiver’s Automatic Antenna Tuner may not be able to reduce the impedance mismatch to an acceptable value if the Standing Wave Ratio (SWR) present at the Antenna jack is greater than 3:1.

  • Page 15: Grounding

    NSTALLATION AND NTERCONNECTIONS ROUNDING The FT 9000MP HF transceiver, like any other HF communications apparatus, requires an effective ground system for maximum electrical safety and best communications effectiveness. A good ground system can contribute to station effi- ciency in a number of ways: Ì...

  • Page 16: Antenna And Fps-9000H Power Supply Connections

    NSTALLATION AND NTERCONNECTIONS FPS-9000H P NTENNA AND OWER UPPLY ONNECTIONS Please refer to the illustration for guidelines regarding connection of your antenna(s) and the FPS-9000H Power Supply. Connect to the AC line outlet AC 100 V - AC 240 V 9000MP FPS-9000H Use a short, thick, braided...

  • Page 17: Connection Of Microphone, Headphones

    NSTALLATION AND NTERCONNECTIONS FH-2 R ONNECTION OF ICROPHONE EADPHONES EMOTE ONTROL EYPAD This transceiver was shipped from the factory in configuration for a microphone input via the Front Panel XLR connector. To use the Rear Panel microphone with an 8-pin round connector, please change the microphone set up via the Menu.

  • Page 18: Key, Keyer, And Computer-Driven Keying Interconnections 16 Connecting A Gps Receiver

    NSTALLATION AND NTERCONNECTIONS EYER OMPUTER RIVEN EYING NTERCONNECTIONS The FT 9000MP includes a host of features for the CW operator, the functions of which will be detailed in the “Opera- tion” section later. Besides the built-in Electronic Keyer, two key jacks are provided, one each on the front and rear panels, for convenient connection to keying devices.

  • Page 19: Vl-1000 Linear Amplifier Interconnections

    NSTALLATION AND NTERCONNECTIONS VL-1000 L INEAR MPLIFIER NTERCONNECTIONS Be sure that both the FT 9000MP and VL-1000 are turned off, then follow the installation recommendations contained in the illustration. On the rear panel of the VL-1000, please set the “ATT” switch to the “ON” position, and set the maximum RF output power level to “200 W”...

  • Page 20: Interfacing To Other Linear Amplifiers

    NSTALLATION AND NTERCONNECTIONS NTERFACING TO THER INEAR MPLIFIERS RF OUT RF IN FUSE FPS-9000H Note G The TX/RX switching in the linear amplifier is controlled by switching components in the transceiver. The relay circuit of the FT 9000MP used for this switching is capable of switching AC voltage of 100 Volts at up to 300 mA, or DC TX GNRL 156 voltages or 60 V at 200 mA or 30 V at up to 1 Amp.

  • Page 21: Plug/Connector Pinout Diagrams

    ONNECTOR INOUT IAGRAMS BAND DATA1 BAND DATA2 +13V EXT ALC SERIAL OUT TX GND TX GND SERIAL IN BAND DATA A BAND DATA B BAND DATA C TXINH BAND DATA D FSET LINEAR (as viewed from rear panel) (as viewed from rear panel) (as viewed from rear panel) PACKET ROTATOR...

  • Page 22: Front Panel Controls

    RONT ANEL ONTROLS MOX Switch PHONES Jack Pressing this button engages the PTT (Push to Talk) A 1/4-inch, 3-contact jack accepts either monaural or circuit, to activate the transmitter. It must be in the stereo headphones with 2- or 3-contact plugs. When a undepressed position for reception.
  • Page 23 RONT ANEL ONTROLS KEY Jack ANTENNA SELECT Switches This 1/4-inch, 3-contact jack accepts a CW key or These momentary buttons select the antenna jack on keyer paddles (for the built-in electronic keyer), or the rear panel, with the selection indicated by the LED output from an external electronic keyer.
  • Page 24 RONT ANEL ONTROLS METER Switch MONI PITCH Knobs MONI Knob This control switch determines the function of the Main Meter during transmission. The inner MONI knob adjusts the audio level of the COMP: Indicates the RF speech compressor transmit RF monitor during transmission (relative to the level (SSB modes only).
  • Page 25 RONT ANEL ONTROLS PROC Knobs KEYER Switch MIC Knob This button toggles the internal CW keyer on and off. The inner MIC knob adjusts the microphone input While activated, the LED in this button glows red. The level for (non-processed) SSB transmission. Keyer sending speed, and the CW Hang Time are ad- Advice justed via the controls described in the enxt section.
  • Page 26 RONT ANEL ONTROLS D.NOTCH Switch MODE Switches A, B Button This button turns the Main band (VFO-A) Digital Notch Filter on and off. When the Digital Notch Fil- Pressing the A or B switch will illuminate the ter is activated, the LED indicator will glow red. This respective indicator imbedded within the switch, al- is an automatic circuit, and there is no adjustment knob lowing adjustment of the operating mode on the Main...
  • Page 27 RONT ANEL ONTROLS QMB (Quick Memory Bank) Switch LOCK Switch STO (Store) Button This button toggles locking of the main tuning knob, Pressing this button copies operating information (fre- to prevent accidental frequency changes. When the quency, mode, bandwidth, and also repeater direction/ button is active, the MAIN Tuning Dial Knob (# shift frequency and CTCSS functions on the FM mode) described previously) can still be turned, but the fre-...
  • Page 28 RONT ANEL ONTROLS C.S Switch V/M Switch Press this button momentarily to recall a favorite Menu This button toggles Main (VFO-A) band receiver op- Selection directly. eration between the memory system and the VFO. To program a Menu selection as the short-cut, press Either “VFO,”...
  • Page 29 RONT ANEL ONTROLS S-Meter (Main Receiver) B-BUSY Indicator There are five functions on the main multi-meter. The This LED glows green whenever the Sub band (VFO- bottom five selections in the list below are transmit B) receiver squelch is open. If this indicator is not functions, determined by the position of the METER illuminated, and reception seems to have been “lost”...
  • Page 30 RONT ANEL ONTROLS Advice Sections (R.FLT) through (AFL) below pertain to operations associated with the Sub (VFO-B) band. Be- cause their function is basically identical to that explained with respect to the Main (VFO-A) band, please see the Main (VFO-A) band discussions for detailed explanations of these controls, switches, and indicators. R.FLT Switch NTCH Knobs (Refer to Main (VFO-A):...
  • Page 31 RONT ANEL ONTROLS NB Switch (except on FM mode) AF GAIN RF GAIN (Refer to Main (VFO-A): (Refer to Main (VFO-A): This switch engages the Sub (VFO-B) band IF Noise AF GAIN Knob Blanker. Adjustment of the Noise Blanker level is pro- This is the Sub (VFO-B) band receiver’s Volume (AF vided by the NB knob (# above).

  • Page 32: Lcd Display

    RONT ANEL ONTROLS BIAS TEMP BIAS Switch CF Card Slot This slot accepts the supplied Compact Flash (CF) Pressing this switch enables display of the final am- Card, which allows storage, transfer, and recall of plifier FET Bias Level currently in use; a red LED transceiver configuration data and operator prefer- will light up to confirm your selection.
  • Page 33 RONT ANEL ONTROLS to Class AB to reduce the heat dissipation associated the Audio Scope. with Class A operation. NR Knob SWR Switch This knob selects the optimum Main (VFO-A) band Digi- tal Noise Reduction response. The Noise Reduction cir- Pressing this switch enables display of the antenna cuit is engaged via the NR switch (# below).
  • Page 34 RONT ANEL ONTROLS BIAS TEMP P.BACK Switch MNU Key Press and hold in this button for 2 seconds to activate the This key is used to engage the configuration Menu. recording feature of the internal Digital Voice Recorder. When this key is pressed the Menu Mode infor- The Voice Recorder allows you to record the Main (VFO- mation will appear on the LCD, allowing selec- A) band receiver audio for the most-recent 30 seconds.
  • Page 35 RONT ANEL ONTROLS SHIFT WIDTH Knobs TX Indicator/Switch (except on FM mode) This is the switch that turns the Sub (VFO-B) trans- mitter On and Off. When this button is pressed to trans- SHIFT Knob fer transmitter control to the Sub (VFO-B) frequency This knob provides adjustment of the IF DSP passband, and mode, the Red LED imbedded within the switch using 20 Hz steps for precise adjustment and easy re-...
  • Page 36 RONT ANEL ONTROLS BIAS TEMP CLAR/VFO-B Knob BAND/MHz / TX Switch Depending on the status of the A/B switch (# BAND/MHz When the A/B switch (# , described later) is described later) the CLAR/VFO-B knob is used for pressed, and the Orange lamp to the right of the functions associated with the Main (VFO-A) or Sub (VFO-B) frequency control registers.
  • Page 37 RONT ANEL ONTROLS A/B Switch The A/B switch controls the determines whether the actions of the CLAR/VFO-B knob (# , de- scribed previously) will be applied to the Main (VFO- A) band (“CLAR” option), or the Sub (VFO-B) band (“VFO-B option”). Pressing this switch once causes the Orange lamp to the right of the CLAR/VFO-B knob to light up;...

  • Page 38: Rear Panel

    The internal antenna tuner This 8-pin jack accepts input from a microphone uti- affects only the antenna(s) connected here, and only lizing a traditional YAESU HF-transceiver pinout. ® during transmission. These connectors utilize Teflon REMOTE insulation for extreme durability and to ensure stable impedance over the entire frequency range.
  • Page 39 This 5-pin MINI-DIN Jack accepts a cable connected dio from either receiver, or both, may be used via this to a YAESU G-800DXA/-1000DXA/-2800DXA An- jack). The front panel AF GAIN knobs do not af- tenna Rotator. You may control the antenna azimuth fect the signals at this jack.

  • Page 40: Key Board

    ANEL AUDIO IN Connect a GPS receiver capable of supplying NMEA This terminal is for future expansion of the data (not supplied) to this jack. When you connect the transceiver’s capabilities. It is designed for connec- GPS receiver to this jack, the FT 9000MP will au- tion to a computer’s sound card output, but at this tomatically set your current location automatically into...

  • Page 41: Frequency Display

    REQUENCY ISPLAY Main (VFO-A) Band TX/RX Indicators Multi-Panel These combination lamp-buttons select and indicate This field within the frequency display area provides the transmit/receive status of the Main (VFO-A) band. several indications, depending on the frequency con- When the green “RX” lamp is lit, the receiving fre- trol mode in use: quency is under control of the main knob and display CLAR (Clarifier)

  • Page 42: Fps-9000H Front Panel Controls

    FPS-9000H F RONT ANEL ONTROLS Main Power Switch Front Legs The left and right case legs, in the front, may be ex- This is the power supply’s main ON ( ) /OFF ( ) switch. tended so as to match the height of the (raised) FT If this Main Power Switch is not set to the “ON ( ) ”...

  • Page 43: Fps-9000H Rear Panel

    FPS-9000H R ANEL Cooling Fan BREAKER Switch This cooling fan provides ventilation for the power The circuit breaker will trip automatically if an over- supply circuitry. When the main power switch is turned current or other potentially-dangerous anomaly is de- on, the fan will be engaged.

  • Page 44: Operation

    FH-2 O PERATION The supplied Remote Control Keypad “FH-2” can be used to control the voice memory capability for the SSB/AM/FM modes, and the contest memory keyer for the CW mode. You can also play back up to 30 seconds of incoming received audio, as well, for verification of a missed callsign or other purposes.

  • Page 45: Basic Operation

    ASIC PERATION ECEIVING ON MATEUR ANDS Before turning on main power, please verify the following items once more. G Have you made all ground connections securely? See page 13 for details. G Do you have your antenna(s) connected to the rear-panel Antenna jack(s)? See page 14 for details. G Is your microphone (and/or key or paddle) connected? See page 15 and 16 for details.
  • Page 46 ASIC PERATION ECEIVING ON MATEUR ANDS Main (VFO-A) RX Switch BAND Key BIAS TEMP POWER Switch MODE Switch BAND/MHz Switch A/B Switch AF GAIN Knob CLAR/VFO-B Knob 1. Set the FPS-9000H’s Power switch to “ .” Advice 2. Press and hold in the front-panel If you press the MAIN RX key when the imbedded POWER switch (# ) for two seconds...
  • Page 47 ASIC PERATION ECEIVING ON MATEUR ANDS ANTENNA SELECT Switch FAST Switch BIAS TEMP SQL Knob MAIN Dial Knob MODE Switch CLAR/VFO-B Knob H The FT H When operating on the FM mode, rotate the 9000MP utilizes a triple band-stack VFO selection technique, that permits you to store SQL (Squelch) control (# ) clockwise just up to three favorite frequencies and modes onto...

  • Page 48: Operation

    ASIC PERATION ECEIVING ON MATEUR ANDS 60-M 5 MH U.S. PERATION ON ETER VERSION ONLY The FT 9000MP includes the capability for transmission and reception on the five spot frequencies assigned to the Amateur Service in the United States. To operate on the 5 MHz band: 1.

  • Page 49: Clar (Clarifier) Operation On Main (Vfo-A)

    ASIC PERATION ECEIVING ON MATEUR ANDS CLAR C VFO-A LARIFIER PERATION ON The CLAR button and CLAR/VFO-B knob are used to offset either the receive, transmit, or both frequencies from their settings on the Main (VFO-A) band frequency (the Clarifier does not affect the Sub (VFO-B) band, however). The four small numbers on the Multi Display Window show the current Clarifier offset.

  • Page 50: Lock

    ASIC PERATION ECEIVING ON MATEUR ANDS LOCK You may lock the setting of the Main Tuning Dial, to prevent accidental frequency change. To lock out the MAIN Tuning Dial knob (# ), just press the LOCK switch (# ) that is located to the right of the Dial.

  • Page 51: B-Disp Off

    ASIC PERATION ECEIVING ON MATEUR ANDS B.DISP OFF During monoband operation, you may wish to disable (temporarily) the display of the Sub (VFO-B) band frequency. To do this, press the B.DISP OFF switch (# ), found at the lower left side of the CLAR/VFO-B (# ) knob.

  • Page 52: Convenient Features

    ONVENIENT EATURES ECEIVE The FT 9000MP is capable of simultaneous reception, using the Main (VFO-A) and Sub (VFO-B) receivers, in what is called the Dual Receive mode. Especially useful for DX work, here is the operating procedure for Dual Receive operation. 1.

  • Page 53: Dual Receive: Full Duplex Operation

    ONVENIENT EATURES ECEIVE UPLEX PERATION The FT 9000MP includes a unique capability among Note HF transceivers: the ability to operate in a full duplex en- Full Duplex operation within the same band (e.g. both Main vironment, where by you can transmit on the Main (VFO- and Sub VFOs on 20 meters) is not possible.

  • Page 54: Using Headphones For Dual Receive

    ONVENIENT EATURES ECEIVE UPLEX PERATION Using Headphones for Dual Receive To take advantage of dual reception, you will want to connect stereo headphones to the PHONES jack. Like the AF RX AUDIO 076 GAIN control, headphone audio mixing can also be configured as desired from Menu Selection: [ HEADPHONE MIX ].

  • Page 55: Bandwidth Diversity Reception

    ONVENIENT EATURES ECEIVE UPLEX PERATION Bandwidth Diversity Reception This mode involves receiving the same signal through two different bandpass filters. The frequency and mode of both the Main (VFO-A) band and Sub band (VFO-B) band are the same. The Main (VFO-A) band can be set up for a narrow bandpass, and the Sub (VFO-B) band for a wide bandpass, using the WIDTH knobs, resulting in a spatial perception of the channel.

  • Page 56: P.back (Audio Playback) From Main (Vfo-A) Receiver

    ONVENIENT EATURES P.BACK A VFO-A R UDIO LAYBACK FROM ECEIVER Once engaged by the operator, the FT 9000MP begins the automatic recording of the last 30 seconds of incoming receiver audio on the Main (VFO-A) band. this capability is especially useful for confirming a callsign that may have been difficult to copy due to noise or QRM, etc.

  • Page 57: My Bands" Operation

    ONVENIENT EATURES “M ” O ANDS PERATION When operating on an Amateur Band on the Main (VFO-A) register, it is possible to use the BAND/MHz switch to engage the use of the CLAR/VFO-B knob for Amateur band selection. The “My Bands” feature allows you to select several Amateur bands, and make only those bands available for selection via the CLAR/VFO-B tuning knob.

  • Page 58: Band Stack Operation

    ONVENIENT EATURES TACK PERATION The FT 9000MP utilizes a triple band-stack VFO selection technique, that permits you to store up to three favorite frequencies and modes onto each band’s VFO register. For example, you may store one frequency each on 14 MHz CW, RTTY, and USB, then recall these VFOs by successive, momentary presses of the [14] MHz band key.

  • Page 59: Dial Swap Configuration (Af/Rf Gain Controls)

    ONVENIENT EATURES AF/RF GAIN ONFIGURATION CONTROLS Using the Menu, it is possible to change the RF GAIN control (for the Main (VFO-A) band) to serve as the Sub (VFO- B) AF GAIN control. In this case, the Menu Item [ GENERAL 038 AF RF DIAL SWAP ] will move the Main (VFO-...

  • Page 60: Data Management Feature

    ONVENIENT EATURES ANAGEMENT EATURE The Data Management Unit enables display, either on the internal TFT display (option) or an external monitor, of a number of useful features. These include the World Clock, Spectrum Scope, Audio Scope/Oscilloscope, Log Book, Temperature and SWR indication, Rotator Control and Great Circle Map, and the Memory and Menu list features. For details, please consult the separate Data Management Unit Operating Manual.

  • Page 61: More Frequency Navigation Techniques

    ONVENIENT EATURES REQUENCY AVIGATION ECHNIQUES H If you attempt to enter a frequency outside the operat- Keyboard Frequency Entry You may enter operating frequencies, for either the Main ing range of 30 kHz ~ 60 MHz, the microprocessor (VFO-A) or Sub (VFO-B) bands, using the front panel will ignore the attempt, and you will be returned to band/frequency selection keys.

  • Page 62: Antenna Selection

    ONVENIENT EATURES NTENNA ELECTION Four main antenna jacks, available for both transmission and reception, are provided on the rear panel of the transceiver. What’s more, a receive-only jack is provided, and the incoming signal path may also have a special after-market filter or preamplifier inserted, if desired, with one-touch access.

  • Page 63: Changing The Speaker Output Configuration

    ONVENIENT EATURES HANGING THE PEAKER UTPUT ONFIGURATION If you use the FT 9000MP internal speaker without using the FPS-9000H’s speaker, an internal switch and the menu allow you to configure the way audio is fed to the two ingernal speakers (either “stereo” or “monaural” modes are avail- able).

  • Page 64: Receiver Operation (Front End Block Diagram)

    On the all Amateur bands on the Main (VFO-A) and Sub (VFO- The DSP’s Digital Noise Reduction (DNR) feature utilizes six- B) receiver, Yaesu’s powerful VRF (Variable RF Filter) teen different mathematical algorithms to analyze and suppress preselector circuit brovides excellent suppression of out-of-band different noise profiles encountered on the HF/50 MHz bands.

  • Page 65: Ipo (Intercept Point Optimization)

    ONVENIENT EATURES IPO I NTERCEPT OINT PTIMIZATION Normally, the front-end FET RF amplifiers provide maximum sensitivity for weak signals. During typical conditions on lower frequencies (where strong signals and high noise are common), the RF amplifiers can be bypassed by pressing the IPO button so that the button's illumination is lit.

  • Page 66: Att

    ONVENIENT EATURES Even with the IPO function on, extremely strong local signals or high noise can still degrade reception. In such situations, you can use the ATT knob to insert 3, 6, 12, or 18-dB of RF attenuation in front of the RF amplifier. Main (VFO-A) Attenuator Setup MAIN(VFO-A) ATT Switch Rotate the Main (VFO-A) side’s ATT switch (#...

  • Page 67: Rf Gain (Ssb/Cw/Am Modes)

    ONVENIENT EATURES RF G SSB/CW/AM M ODES The RF Gain controls provide manual adjustment of the gain levels for the receiver RF and IF stages, to account for noise and/or signal strength conditions at the moment. Main (VFO-A) RF Gain Adjustment The Main (VFO-A) RF GAIN control (# ) should, initially, be rotated to the fully clockwise position.

  • Page 68: Advanced Interference-Suppression Features

    : RF F DVANCED NTERFERENCE UPPRESSION EATURES RONT VRF V RF F SING THE ARIABLE RONT ILTER The VRF system is a high-performance RF front-end preselector that provides outstanding rejection of out-of-band signals. VRF on the Main (VFO-A) Band Frequency SUB(VFO-B) VRF Knob MAIN(VFO-A) VRF/µ...

  • Page 69: Interference Rejection

    NTERFERENCE EJECTION IGNALS REQUENCY BY UST A EW KHZ R.FLT R OOFING ILTERS Narrow-band Roofing Filters of 15 kHz, 6 kHz, and 3 kHz bandwidths are provided in the first IF, right after the first mixer. These filters provide protection for the 2nd mixer, DSP, and other circuitry that follow, and can dramatically improve reception on a very crowded band (during a contest, etc.).

  • Page 70: Cont (Contour) Control Operation

    NTERFERENCE EJECTION IGNALS WITHIN CONT C ONTOUR ONTROL PERATION The Contour filtering system provides a gentle perturbation of the IF filter passband, so as to suppress or enhance certain frequency components modestly, so as to enhance the natural-sounding received signal. Using Contour on the Main (VFO-A) Receiver CONT Knob CONTOUR Knob...

  • Page 71: If Shift Operation (Ssb/Cw/Rtty/Pkt/Am Modes)

    NTERFERENCE EJECTION IGNALS WITHIN IF SHIFT O SSB/CW/RTTY/PKT/AM M PERATION ODES IF Shift allows you to vary the DSP filter passband higher or lower, without changing the pitch of the incoming signal, so as to reduce or eliminate interference. Because the carrier tuning frequency is not varied, there is no need to re-tune the operating frequency when eliminating the interference.

  • Page 72: Width (If Dsp Bandwidth) Tuning (Ssb/Cw/Rtty/Pkt Modes)

    NTERFERENCE EJECTION IGNALS WITHIN WIDTH IF DSP B SSB/CW/RTTY/PKT M ANDWIDTH UNING ODES The IF Width tuning system allows you to vary the width of the DSP IF passband, so as to eliminate interference. Moreover, the bandwidth may actually be expanded from its default setting, should you wish to enhance incoming signal fidelity when interference on the band is low.

  • Page 73: Using If Shift And Width Together

    NTERFERENCE EJECTION IGNALS WITHIN WIDTH IF DSP B SSB/CW/RTTY/PKT M ANDWIDTH UNING ODES Using IF Shift and Width Together The IF Shift and Variable IF Width featuress together form a very effective interference-fighting filtering system. For example, in Figure (A) you can see how interfer- ence has appeared both on the high and low sides of the Desired Signal desired signal.

  • Page 74: If Notch Filter Operation (Ssb/Cw/Rtty/Pkt/Am Modes)

    NTERFERENCE EJECTION IGNALS WITHIN IF N SSB/CW/RTTY/PKT/AM M OTCH ILTER PERATION ODES The IF Notch filter is a highly-effective system that allows you to slice out an interfering beat note or other carrier signal from inside the receiver passband. Main (VFO-A) Band IF Notch Operation SUB(VFO-B) NTCH Knob MAIN(VFO-A) NOTCH Knob 1.

  • Page 75: Digital Noise Reduction (Dnr) Operation

    NTERFERENCE EJECTION IGNALS WITHIN DNR O IGITAL OISE EDUCTION PERATION The Digital Noise Reduction (DNR) system is designed to reduce the level of random noise found on the HF and 50 MHz bands, and it is especially effective during SSB operation. By rotating the NR knob, any of sixteen different noise- reduction algorithms can be selected;...

  • Page 76: Narrow (Nar) One-Touch If Filter Selection

    NTERFERENCE EJECTION IGNALS WITHIN NARROW NAR O IF F OUCH ILTER ELECTION Pressing the NAR switch provides one-touch, mode-specific selection of a narrow IF DSP filter setting that does not depend on the setting of the Width control. Pressing the NAR switch once more returns the bandwidth control to the Width/Shift system.

  • Page 77: Digital Notch Filter (Dnf) Operation

    NTERFERENCE EJECTION IGNALS WITHIN DNF O IGITAL OTCH ILTER PERATION The Digital Notch Filter (DNF) is an effective beat-cancelling filter that can null out a number of interfering beat notes inside the receiver passband. Because this is an Auto-Notch feature, there is no adjustment knob associated with this filter. Advice If a very strong interfering carrier is encountered, we recommend you first use the IF Notch filter, as it is the most effective notching tool in the receiver section.

  • Page 78: If Noise Blanke (Nb) Operation

    NTERFERENCE EJECTION IGNALS WITHIN IF N NB O OISE LANKER PERATION The FT 9000MP includes an effective IF Noise Blanker, which can significantly reduce noise caused by automotive ignition systems. Main (VFO-A) Band NB Operation MAIN(VFO-A) NB Knob MAIN(VFO-A) NB Switch 1.

  • Page 79: Agc (Automatic Gain Control)

    OOLS FOR OMFORTABLE AND FFECTIVE ECEPTION AGC A UTOMATIC ONTROL The AGC system is designed to help compensate for fading and other propagation effects, with characteristics that can be of particular value on each operating mode. The basic objective of AGC is to maintain a constant audio output level once a certain minimum threshold of signal strength is achieved.

  • Page 80: Tools For Comfortable And Effective Reception

    OOLS FOR OMFORTABLE AND FFECTIVE ECEPTION AGC A UTOMATIC ONTROL SLOPED AGC Operation In traditional AGC systems, the audio output from the SLOPE transceiver becomes essentially fixed once the thresh- NORMAL old for AGC action is reached (usually several dozen dB above the no-signal noise floor).

  • Page 81: Mute Feature Main (Vfo-A) Band

    OOLS FOR OMFORTABLE AND FFECTIVE ECEPTION EATURE (VFO-A) B There may be occasions, during Dual Receive operation, when you want to silence the Main (VFO-A) receiver temporarily so as to concentrate on what's being received on the Sub (VFO-B) receiver. The Mute feature makes this simple to accom- plish.

  • Page 82: Adjacent Channel Monitor Acm Cw Mode Only

    OOLS FOR OMFORTABLE AND FFECTIVE ECEPTION CW M DJACENT HANNEL ONITOR While operating on CW on the Main (VFO-A) band, the ACM feature provides a visual indicator of encroachment by another station (someone you may not be able to hear because of the tight DSP filter in your FT 9000MP).

  • Page 83: Audio Filter Operation

    OOLS FOR OMFORTABLE AND FFECTIVE ECEPTION UDIO ILTER PERATION The left FILTER(A) switch on the FPS-9000H allows adjustment of the left speaker audio response, while the FILTER(B) switch on the FPS-9000H allows tailoring of the right side speaker’s audio response. The optimum filter setting will depend on the operating mode and band/noise conditions.
  • Page 84 SSB/AM M RANSMISSION 1. The operating mode is selected using the MODE MOX Switch VOX Switch Main Tuning Dial Knob switches (# ) to the left of the MAIN Tuning Dial knob (# ), and the VFO (A or B) to which the selection is ap- plied is selected by pressing the A or B switch above the Mode keys.

  • Page 85: Ssb/Am Mode Transmission (Let's Look At The Transmitter

    SSB/AM M RANSMISSION HANTOM OLTAGE FOR ONDENSER ICROPHONES For powering a studio-quality condenser microphone connected to the front panel’s XLR (“Cannon”) connector, it is possible to enable a 48-volt DC line connected to that jack. Because the improper enabling of this voltage could cause damage to other microphone types, the simple process for enabling the voltage has been made somewhat complicated, so as to prevent the voltage from being enabled by accident.

  • Page 86: Using The Automatic Antenna Tuner

    SING THE UTOMATIC NTENNA UNER The Automatic Antenna Tuner (hereinafter referred to as the “ATU”) built into each FT 9000 is crafted to ensure a 50- Ohm load for the final amplifier stage of the transmitter. We recommend that the ATU be used whenever you operate on the 9000MP.

  • Page 87: About Atu Operation

    SING THE UTOMATIC NTENNA UNER ATU O BOUT PERATION Figure 1 depicts a situation where normal tuning via the ATU has been successfully completed, and the tuning data has been stored in the ATU memory. The antenna system as seen by the transmitter is shown. In Figure 2, the operator has changed frequency, and the HI SWR LED has become illuminated.

  • Page 88: Lithium Battery Replacement

    SING THE UTOMATIC NTENNA UNER ITHIUM ATTERY EPLACEMENT The memories for the ATU are backed up by a common Lithium backup battery (type CR2032 or equivalent). After two or more years of heavy use, you may notice that the tuner memories are not being maintained, and that you have to re-tune when returning to a frequency on which you had previously stored tuning data.

  • Page 89: Ssb/Am Mode Transmission

    SING THE UTOMATIC NTENNA UNER ITHIUM ATTERY EPLACEMENT Slide the front panel diagonally upward and outward. Figure 4 ATU Backup Battery CONTROL Unit Backup Switch Figure 5 Removal of the Lithium Backup Battery Inserting the Lithium Backup Battery After pushing in the direction of the arrow, Use your fingertip to push in the move your finger upward.
  • Page 90 SSB/AM M RANSMISSION (E NHANCING RANSMIT IGNAL UALITY SING THE PEECH ROCESSOR - SSB/AM M ODES The Speech Processor is designed to increase “talk power” by increasing the average power output via a sophisticated compression technique. The result is improved intelligibility when conditions are difficult. 1.

  • Page 91: Adjusting The Ssb Transmitted Bandwidth

    SSB/AM M RANSMISSION (E NHANCING RANSMIT IGNAL UALITY SSB T DJUSTING THE RANSMITTED ANDWIDTH For transmission on SSB, a default bandwidth of 2.4 kHz is provided. This bandwidth provides reasonable fidelity along with good talk power, and is typical of the bandwidth used for decades during SSB transmission. However, the bandwidth may be varied by the operator, so as to provide different levels of fidelity or talk power, according to your preferences.

  • Page 92: Signal Quality Enhancement Using The Parametric Microphone Equalizer

    SSB/AM M RANSMISSION (E NHANCING RANSMIT IGNAL UALITY IGNAL UALITY NHANCEMENT SING THE ARAMETRIC ICROPHONE QUALIZER The FT 9000MP includes a unique Three-Band Parametric Microphone Equalizer, that provides precise, independent control over the low-, mid-, and treble-ranges in your voice wave-form. Quick Point H The Parametric Equalizer is a unique technique for adjusting the signal quality.
  • Page 93 SSB/AM M RANSMISSION (E NHANCING RANSMIT IGNAL UALITY IGNAL UALITY NHANCEMENT SING THE ARAMETRIC ICROPHONE QUALIZER +10dB Parametric Gain (dB)0 -10dB ～ ～ ～ 100 700Hz 700 1500Hz 1500 3200Hz 3-Stage Parametric Equalizer Adjustments: Front Panel Microphone Jack TX AUDIO 136 F-PRMTRC EQ1-FREQ “100”...

  • Page 94: Low- Distortion Class-A Operation

    SSB/AM M RANSMISSION (L CLASS-A O ISTORTION PERATION CLASS-A O ISTORTION PERATION Class-A operation of the FT 9000MP transmitter is provided, yielding ultra-low distortion products during SSB opera- tion. Power output during Class-A operation is 100 Watts. 1. To engage Class-A opera- tion, press the CLASS-A switch (# ).
  • Page 95 SSB/AM M RANSMISSION (L CLASS-A O ISTORTION PERATION CLASS-A O ISTORTION PERATION Quick Point H Class-A operation provides a significant improvement in transmitter distortion suppression. During Class-A, the 3rd- order IMD products are typically suppressed 50 dB, while the 5th- and higher-order IMD products (that can cause “splatter”...

  • Page 96: Voice Memory

    SSB/AM M RANSMISSION OICE EMORY You may utilize the Voice Memory capability of the FT 9000MP by plugging in the supplied FH-2 Remote Control Keypad into the rear panel’s REMOTE jack. The Voice Memory system includes five memories capable of storing up to 20 seconds of voice audio each. The maximum that any memory can hold is 20 seconds.
  • Page 97 9000MP O Page 95...

  • Page 98: Convenient Transmitter Accessories

    ONVENIENT RANSMITTER CCESSORIES VOX: A TX/RX S UTOMATIC WITCHING USING OICE ONTROL - SSB/AM/FM M ODES Instead of using the microphone’s PTT switch or the front panel MOX switch to activate the transmitter, the VOX (Voice Operated TX/RX Control) system provides hands-free, automatic activation of the transmitter, based on voice input into the microphone.

  • Page 99: Split Operation Using The Tx Clarifier (Vfo-A Operation)

    ONVENIENT RANSMITTER CCESSORIES TX C VFO-A O PLIT PERATION SING THE LARIFIER PERATION For split TX/RX operation in “casual” pile-ups, where the split is less than 10 kHz, the TX Clarifier (Offset Tuning) feature may be utilized. 1. Press the CLAR switch (# ).

  • Page 100: Split-Frequency Operation

    ONVENIENT RANSMITTER CCESSORIES PLIT REQUENCY PERATION A powerful capability of the FT 9000MP is its flexibility in Split Frequency operation, using the Main (VFO-A) and Sub (VFO-B) frequency registers. This makes the FT 9000MP especially useful for high-level DX-pedition use, as the Split operation capability is very advanced and easy to use.

  • Page 101: Quick Split Operation

    ONVENIENT RANSMITTER CCESSORIES PLIT REQUENCY PERATION Quick Split Operation The Quick Split feature allows you to set a one-touch offset of +5 kHz to be applied to your radio’s transmit frequency on the Sub VFO, compared to the Main (VFO-A) frequency. 1.

  • Page 102: Full Duplex Operation

    ONVENIENT RANSMITTER CCESSORIES UPLEX PERATION The FT 9000MP includes a unique capability among Important Guidelines for Full Duplex Operation HF transceivers: the ability to operate in a full duplex en- Remember that, at your station location, the capability vironment, where by you can transmit on the Main (VFO- exists for damaging RF voltage to be conducted from your A) band while simultaneously tuning around, on a differ- transmitting antenna into your receiving antenna during...

  • Page 103: Setup For Straight Key (And Straight Key Emulation) Operation

    9000MP O Page 101...

  • Page 104: Cw Mode Operation

    CW M PERATION ETUP FOR TRAIGHT TRAIGHT EY EMULATION PERATION Before starting, connect your key line to the front and/or rear panel KEY jack, and be sure the KEYER switch on the left side of the front panel is turned off for now. 1.

  • Page 105: Using The Built-In Electronic Keyer

    CW M PERATION SING THE UILT LECTRONIC EYER Connect the cable from your keyer paddle to the front or rear panel KEY jack. SPEED Knob MODE Switch 1. Press the CW mode switch ) to engage CW operation. If you press the CW key once more, after initially selecting CW, you wll engage the “CW Re- verse”...

  • Page 106: Setting The Keyer Weight (Dot/Space:dash ) Ratio

    CW M PERATION SING THE UILT LECTRONIC EYER A number of interesting and useful features are available during Electronic Keyer operation. Setting the Keyer Weight (Dot/Space:Dash ) Ratio The Menu may be used to adjust the Weight for the built-in Electronic Keyer. The default weighting is 3:1 (a dash is three times longer than a dot or space).

  • Page 107: Cw Spotting (Zero-Beating)

    DX station. From the DX or align the receiver frequency so that the central LED side, if a dozen or more operators (also using Yaesu's on the abr indicator lights up. Note that there are 51 SPOT system) all call precisely on the same frequency, “dots”...

  • Page 108: Using Cw Reverse

    CW C ONVENIENCE EATURES CW R SING EVERSE If you experience a difficult interference situation, where MODE Switch an interfering station cannot readily be eliminated, you may wish to try receiving using the opposite sideband. This may throw the interfering station’s frequency in a direc- tion that may lend itself more readily to rejection.

  • Page 109: Cw Delay Time Setting

    CW C ONVENIENCE EATURES CW D ELAY ETTING During semi-break-in (not QSK) operation, the hang time CW DELAY Knob of the transmitter, after you have finished sending, may be adjusted to a comfortable value consistent with your send- ing speed. This is the functional equivalent to the “VOX Delay”...

  • Page 110: Cw Convenience Features

    CW C ONVENIENCE EATURES ONTEST EMORY EYER The rise and fall times of the CW envelope may be adjusted using the Menu. The default setting of 4 ms. is ideal for most operation, as it produces a nicely “rounded” shape to the CW character. However, the rise and fall times may be adjusted to 1/2/4/6 ms, as desired, using Menu item [ MODE-CW 048 CW WAVE SHAPE ].
  • Page 111 CW C ONVENIENCE EATURES ONTEST EMORY EYER Message Memory Programming (Using Your Paddle) Checking the CW Memory Contents 1. Press the CW Mode key (# ) to set the operating 1. Be sure that Break-in is still turned Off. mode to CW. 2.

  • Page 112: Text Memory

    CW C ONVENIENCE EATURES ONTEST EMORY EYER TEXT Memory The five channels of CW message memory (up to 50 characters total) may also be programmed using a text-entry tech- nique. This technique is somewhat slower than when you send the message directly from your keyer paddle, but accuracy of character spacing is ensured.
  • Page 113 CW C ONVENIENCE EATURES ONTEST EMORY EYER Text Message Programming Checking the CW Memory Contents 1. Press the CW Mode key (# ) to set the operating 1. Be sure that Break-in is still turned Off. mode to CW. 2. Press the FH-2’s 1 ~ 5 key to check your work. 2.

  • Page 114: Fm Mode Operation

    FM M PERATION 1. Press the FM mode key (# ) to select the FM op- MOX Switch MODE Switch erating mode. H Be sure that the FM mode is being selected on the proper VFO; check the status of the A and B switches (# ) above the mode selection keys before making your mode selection.

  • Page 115: Repeater Operation

    FM M PERATION EPEATER PERATION The FT 9000MP may be utilized on 29 MHz and 50 MHz repeaters. 1. Rotate the MAIN Tuning Dial knob (# ) to the MAIN Tuning Dial knob output frequency (downlink) from the repeater. 2. If CTCSS Tone operation is desired/needed, press and hold in the FM Mode key (# ) for two seconds to engage the CTCSS mode.

  • Page 116: Convenient Memory Functions

    ONVENIENT EMORY FUNCTIONS The FT 9000MP contains ninety-nine regular memories, labeled “01” through “99,” nine special programmed limit memory pairs, labeled “P-1L/1U” through “P-9L/9U,” and five QMB (Quick Memory Bank) memories, labeled “C1” ~ “C5.” Each stores various settings, not only the main band’s (VFO-A) frequency and mode (See below). By default, the 99 regular memories are contained in one group;...

  • Page 117: Qmb (Quick Memory Bank)

    UICK EMORY The Quick Memory Bank is comprised of five memories (labeled “C1” ~ “C5”) independent from the regular and PMS memories. These can quickly store operating parameters for later recall. QMB C HANNEL TORAGE 1. Tune to the desired frequency on the Main (VFO-A) band.

  • Page 118: Memory Groups

    EMORY ROUPS EMORY ROUP SSIGNMENT 1. Press the MNU key (# ) to enter the Menu mode. MNU Key 2. Rotate the MAIN Tuning Dial knob (# ) to select GENERAL 031 MEM GROUP Menu item [ Rotate the CLAR/VFO-B knob (# ) to set this Menu item to “ENABLE”...

  • Page 119: Memory Operation

    EMORY PERATION The memory system of the FT 9000MP allows storage and recall of up to 99 memories, each storing frequency, mode, and a wide variety of status information detailed previously. Memories may be grouped into as many as six Memory Groups, and additionally you get nine pairs of band-limit (PMS) memories along with five QMB (Quick Memory Bank) memories.

  • Page 120: Checking A Memory Channel's Status

    EMORY PERATION EMORY HANNEL ECALL Checking a Memory Channel’s Status Before programming a channel into memory, you can check the current contents of that channel without the danger of over-writing the data accidentally. 1. Press the MCH/GRP key (# ) momentarily. M A Key CLAR/VFO-B Knob The imbedded LED will glow Red, indicating that...

  • Page 121: Moving Memory Data To The Main (Vfo-A) Band

    EMORY PERATION VFO-A B OVING EMORY ATA TO THE You may transfer the contents of the currently-selected memory channel into the Main (VFO-A) band register, if you like. 1. Press the V/M switch (# ), as necessary, to go to M A Key CLAR/VFO-B Knob the Memory mode.

  • Page 122: Operation On Alaska Emergency Frequency

    : 5167.5 Z (U.S. V PERATION ON LASKA MERGENCY REQUENCY ERSION Section 97.401(d) of the regulations governing amateur radio in the United States permit emergency amateur communica- tions on the spot frequency of 5167.5 kHz by stations in (or within 92.6 km of) the state of Alaska. This frequency is only to be used when the immediate safety of human life and/or property are threatened, and is never to be used for routine communications.

  • Page 123: Operation On The 60-Meter Band (U.s. Version)

    60-M AND (U.S. V PERATION ON THE ETER ERSION The recently-released 60-meter band is covered, in the FT 9000MP, by five special, fixed memory channels. These channels are set to USB, and they appear between the “last” PMS channel (“P9U”) and the first “regular” memnory channel (Channel 1).

  • Page 124: Vfo And Memory Scanning

    EMORY CANNING You may scan wither the VFO or the memories of the FT 9000MP, and the radio will halt the scan on any station with a signal strong enough to open the receiver’s squelch. VFO S CANNING 1. Press the A or B switch (# ) to select the VFO MAIN(VFO-A) SQL knob to be scanned.

  • Page 125: Pms

    To limit scanning (and manual tuning) within a particular frequency range, you can use the Programmable Memory Scan- ning (PMS) feature, which utilizes nine special-purpose memory pairs (“P-1L/P-1U” through “P-9L/P-9U”). The PMS feature is especially useful in helping you to observe any operating sub-band limits which apply to your Amateur license class.

  • Page 126: Packet Operation

    ACKET PERATION Packet operation is easily accomplished on the FT 9000MP by connecting your TNC (Terminal Node Controller) to the transceiver, per the illustration. “Packet” operation also applies to SSB-based AFSK data modes, such as PSK31, etc. DATA DATA PACKET PACKET JACK ②...

  • Page 127: Rtty (Radio Teletype) Operation

    RTTY (R ADIO PERATION Most RTTY operation today is accomplished using a TNC or other computer-based system that utilizes AFSK tones. As such, the previous discussion on LSB-mode “Packet” operation will apply for Baudot oeration, as well. For RTTY opera- tion using a Terminal Unit (TU) or the “FSK”...

  • Page 128: Miscellaneous Afsk-Based Data Modes

    AFSK- ISCELLANEOUS BASED ODES The FT 9000MP may also me used for a host of other SSB-based Data modes. Please set up your system using the illustration as a guideline. PACKET ② ④ ⑤ ① ③ PACKET PTT DATA OUT 市販の...

  • Page 129: About The Transverter Output Terminal

    BOUT THE RANSVERTER UTPUT ERMINAL You may connect an after-market transverter to the rear panel’s TRV (Transverter) jack. The output, at 28 MHz, is approxi- mately –20 dBm (0.01 mW) at 50 Ohms. 同軸ケーブル（ Ω） Coaxial Cable (50 Ohm) V/U ANT Transceiver RF IN TX GND...

  • Page 130: Menu Mode

    The Menu system of the FT 9000MP provides extensive customization capability, so you can set up your transceiver just the way you want to operate it. The Menu items are grouped by general utilization category, and are numbered from “AGC 1”...

  • Page 131: Menu Mode Setting Table

    Groupe No. MenuFunction Available Values Default Setting 001 MAIN-FAST-DELAY 20 ~ 4000 msec (20 msec Step) 300 msec 002 MAIN-FAST-HOLD 0 ~ 2000 msec (20 msec Step) 0 msec 003 MAIN-MID-DELAY 20 ~ 4000 msec (20 msec Step) 700 msec 004 MAIN-MID-HOLD 0 ~ 2000 msec (20 msec Step) 0 msec...
  • Page 132 Groupe No.MenuFunction Available Values Default Setting MODE-DAT 053 DATA IN SELECT DATA / PC DATA MODE-DAT 054 DATA GAIN 0 ~ 255 MODE-DAT 055 DATA OUT VFO-a / VFO-b VFO-a MODE-DAT 056 DATA VOX DELAY 30 ~ 3000 msec 300 msec MODE-DAT 057 DATA VOX GAIN 0 ~ 255...
  • Page 133 Groupe No. MenuFunction Available Values Default Setting RX DSP 106 SUB-SSB-NARROW 200 / 400 / 600 / 850 / 1100 / 1350 / 1800 (Hz) 1500 / 1650 / 1800 / 1950 / 2100 / 2250 (Hz) SCOPE 107 MAIN FIX 1.8MHz 1800 ~ 1999 kHz 1800kHz SCOPE...
  • Page 134 Groupe No. MenuFunction Available Values Default Setting TX GNRL 155 TX PWR CONTROL ALL MODE / CARRIER ALL MODE TX GNRL 156 EXT AMP TX-GND ENABLE / DISABLE DISABLE TX GNRL 157 EXT AMP TUNING PWR 50 / 100 / 200 / 400 (W) 100 (W) TX GNRL 158 FULL DUPLEX...

  • Page 135: Menu Mode Setting

    AGC G ROUP 007. SUB-FAST-DELAY 001. MAIN-FAST-DELAY Function: Sets the delay time for the AGC FAST mode Function: Sets the delay time for the AGC FAST mode of the sub band (VFO-B) receiver. of the main band (VFO-A) receiver. Available Values: 20 ~ 4000 msec (20 msec/step) Available Values: 20 ~ 4000 msec (20 msec/step) Default Setting: 300 msec Default Setting: 300 msec...
  • Page 136 DISPLAY G ROUP 013. TFT COLOR 017. ROTATOR START UP Function: Selects the TFT color. Function: Selects the starting point of your controller’s Available Values: COOL BLUE/CONTRAST BLUE/ indicator needle. FLASH WHITE/CONTRAST UMBER/UMBER Available Values: 0/90/180/270º Default Setting: COOL BLUE Default Setting: 0º...
  • Page 137 FH-2 SETUP G ROUP 021. BEACON TIME 024. CW MEMORY 2 Function: Sets the interval time between repeats of Function: Permits entry of the CW message for mes- the beacon message. sage register 2. Available Values: OFF/1 ~ 255 sec Available Values: TEXT/MESSAGE Default Setting: OFF Default Setting: MESSAGE...
  • Page 138 GENERAL G ROUP 028. ANT SELECT 035. µTUNE DIAL STEP Function: Sets the method of antenna selection. Function: Select the µ-TUNE mode. Available Values: BAND/STACK Available Values: DIAL STEP-1/DIAL STEP-2/OFF Default Setting: BAND Default Setting: DIAL STEP-1 BAND: The antenna is selected in accordance with Function: Select the µ-TUNE mode.
  • Page 139 MODE-AM G MODE-CW G ROUP ROUP 039. AM MIC GAIN 041. F-KEYER TYPE Function: Sets the microphone gain for the AM mode. Function: Selects the desired keyer operation mode Available Values: MCVR/0 ~ 255 (FIX) for the device connected to the front panel’s KEY jack. Default Setting: 160 Available Values: OFF/BUG/ELEKEY/ACS When this menu is set to “MCVR,”...
  • Page 140 MODE-CW G ROUP 045. CW AUTO MODE 049. CW WEIGHT Function: Enables/disables CW keying while operat- Function: Sets the Dot:Dash ratio for the built-in elec- ing on SSB. tronic keyer. Available Values: OFF/50MHz/ON Available Values: (1:) 2.5 ~ 4.5 Default Setting: OFF Default Setting: 3.0 OFF: Disables CW keying while operating on...
  • Page 141 MODE-DAT G MODE-FM G ROUP ROUP 053. DATA IN SELECT 058. FM MIC GAIN Function: Selects the data input to be used on the Function: Sets the microphone gain for the FM mode. PKT mode. Available Values: MCVR/0 ~ 255 (FIX) Available Values: DATA/PC Default Setting: 160 Default Setting: DATA...
  • Page 142 MODE-PKT G MODE-RTY G ROUP ROUP 062. PKT DISP 065. POLARITY-R Function: Sets the packet frequency display offset. Function: Selects normal or reverse Mark/Space po- Available Values: –3000 ~ +3000 Hz (10 Hz/step) larity for RTTY receive operation. Default Setting: 0 Hz Available Values: NOR/REV Default Setting: NOR 063.
  • Page 143 MODE-SSB G RX AUDIO G ROUP ROUP 069. SSB MIC SELECT 075. AGC-SLOPE Function: Selects the microphone to be used on the Function: Selects the gain curve of the AGC ampli- SSB mode. fier. Available Values: FRONT/REAR/DATA/PC Available Values: NORMAL/SLOPE Default Setting: FRONT Default Setting: NORMAL FRONT: Selects the microphone connected to the...
  • Page 144 RX DSP G ROUP 078. MAIN-CONTOUR-LEVEL 083. MAIN-CW-SHAPE Function: Adjusts the parametric equalizer gain of Function: Selects the passband characteristics of the the main band (VFO-A) receiver Contour filter. main band (VFO-A) DSP filter for the CW mode. Available Values: –40 ~ +20 dB Available Values: SOFT/SHARP Default Setting: –15 dB Default Setting: SHARP...
  • Page 145 RX DSP G ROUP 090. MAIN-RTTY-SLOPE 097. SUB-CW-NARROW Function: Selects the shape factor of the main band Function: Selects the passband of the sub band (VFO- (VFO-A) DSP filter for the RTTY mode. B) DSP filter for the CW “narrow” mode. Available Values: GENTLE/MEDIUM/STEEP Available Values: 25/50/100/200/300/400 Hz Default Setting: MEDIUM...
  • Page 146 RX DSP G SCOPE G ROUP ROUP 102. SUB-RTTY-SLOPE 107. MAIN FIX 1.8 MHz Function: Selects the shape factor of the sub band Function: Selects the scan start frequency of the FIX (VFO-B) DSP filter for the RTTY mode. mode Spectrum Scope while monitoring on the main Available Values: GENTLE/MEDIUM/STEEP band (VFO-A) 160 m amateur band.
  • Page 147 SCOPE G ROUP 115. MAIN FIX 24 MHz 123. SUB FIX 14 MHz Function: Selects the scan start frequency of the FIX Function: Selects the scan start frequency of the FIX mode Spectrum Scope while monitoring on the 12 m mode Spectrum Scope while monitoring on the 20 m amateur band.
  • Page 148 TUNING G TX AUDIO G ROUP ROUP 129. MAIN DIAL STEP 136. F-PRMTRC EQ1-FREQ Function: Setting of the Main Tuning Knob’s tuning Function: Selects the center frequency of the lower speed on the SSB, CW, and AM modes. range for the front panel’s parametric microphone equal- Available Values: 1 or 10 Hz izer.
  • Page 149 TX AUDIO G ROUP 148. R-PRMTRC EQ2-FREQ 142. F-PRMTRC EQ3-FREQ Function: Selects the center frequency of the middle Function: Selects the center frequency of the high range for the rear panel’s parametric microphone equal- range for the front panel’s parametric microphone equal- izer.
  • Page 150 TX GNRL G ROUP 154. TX MAX POWER 158. FULL DUPLEX Function: Selects a maximum output power limit. Function: Enables/Disables Full Duplex operation. Available Values: 400/200/100/50 W Available Values: SIMP/DUP Default Setting: 400 W Default Setting: SIMP When this menu is set to “DUP,” you may receive on 155.

  • Page 151: Customized Option

    USTOMIZED PTION BOUT USTOMIZATION PTIONS With regard to the FT 9000MP, the addition of one or more of the customization options can elevate performance of the basic transceiver to a higher level. Additionally, you may configure the level of performance that fits the requirements of your station, as well as your personal tastes and preferences.

  • Page 152: Rf Μ-Tuning Unit (Mtu-160, Mtu-80/40, Mtu-30/20)

    RF µ-T UNING NITS MTU-160, MTU-80/40, MTU-30/20 The optional RF µ-Tuning Units provide ultra-sharp RF selectivity for the Main (VFO-A) band. The high Q is made possible by the narrow-band design; one µ-Tune module is required for the 1.8 MHz band (MTU-160), while the 3.5 and 7 MHz bands are covered by the MTU-80/40, and the 10.1 and 14 MHz bands are covered by the MTU-30/20.
  • Page 153 RF µ-T UNING NITS MTU-160, MTU-80/40, MTU-30/20 µ-Tune and VRF: Comparisons to Fixed Bandpass Filters µ-Tune Inspection of the illustrations to the right will demon- strate the profound advantage of the µ-Tune circuit. In illustration [A], the gray area represents the passband of a typical fixed bandpass filter covering the 1.8 ~ 3 MHz range;...

  • Page 154: Tft Display Unit Tft-9000

    TFT D TFT-9000 ISPLAY When the optional TFT Display Unit (TFT-9000) is installed, a wide range of informational displays are available on the various pages of the TFT: World Clock Page Spectrum Scope Page Audio Scope/Oscilloscope Page Log Book Page Temperature and SWR Status Page Rotator Control Page Memory Channel list Page...
  • Page 155 TFT D TFT-9000 ISPLAY RONT ANEL ONTROLS NTCH Switch TFT Display (see page 40) This button turns the Main (VFO-A) band’s IF notch This 6.5-inch TFT display is used for viewing and filter on and off. control of a variety of features, and it includes pages including a World Map, World Clock, Spectrum DNF Switch Scope, SWR and Transmitter Status, Log Book, Au-...
  • Page 156 TFT D TFT-9000 ISPLAY TFT F EATURE ONTROL ETAILS Pressing any of these keys provides one-touch access For entering a frequency directly into the Sub (VFO- to the Amateur bands from 1.8 ~ 28 MHz. When the B) band register, press this key. Then use the keys de- ENT key has been pressed first, these keys then scribed in sections (A) and (B) above for entering the serve as the frequency entry digits (“1”...
  • Page 157 9000MP O Page 155...

  • Page 158: Specifications

    PECIFICATIONS General Rx Frequency Range: 30 kHz - 60 MHz (Operating) 160 - 6 m (Amateur bands only) Tx Frequency Ranges: 160 - 6 m (Amateur bands only) Frequency Stability: ±0.03 ppm (after 5 min. @ –10 °C ~ +60 °C [+14 °F ~ +140 °F]) Operating Temperature Range: –10 °C ~ +60 °C [+14 °F ~ +140 °F] Emission Modes:...
  • Page 159 PECIFICATIONS Receiver Circuit Type: Triple-conversion superheterodyne Intermediate Frequencies: VFO-A; 40.455 MHz/455 kHz/30 kHz (24 kHz for FM), VFO-B; 40.455 MHz/450 kHz/30 kHz (24 kHz for FM) Sensitivity (IPO “OFF”): SSB (2.4 kHz, 10 dB S+N/N) 0.2 µV (160 - 10 m Amateur bands) 0.125 µV (6 m Amateur band) 2 µV (0.1 - 50 MHz) AM (6 kHz, 10 dB S+N/N, 30 % modulation@400 Hz)
  • Page 160 9000MP O Page 158...
  • Page 161 9000MP O Page 159...
  • Page 162 9000MP O Page 160...
  • Page 163 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 164 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K.
