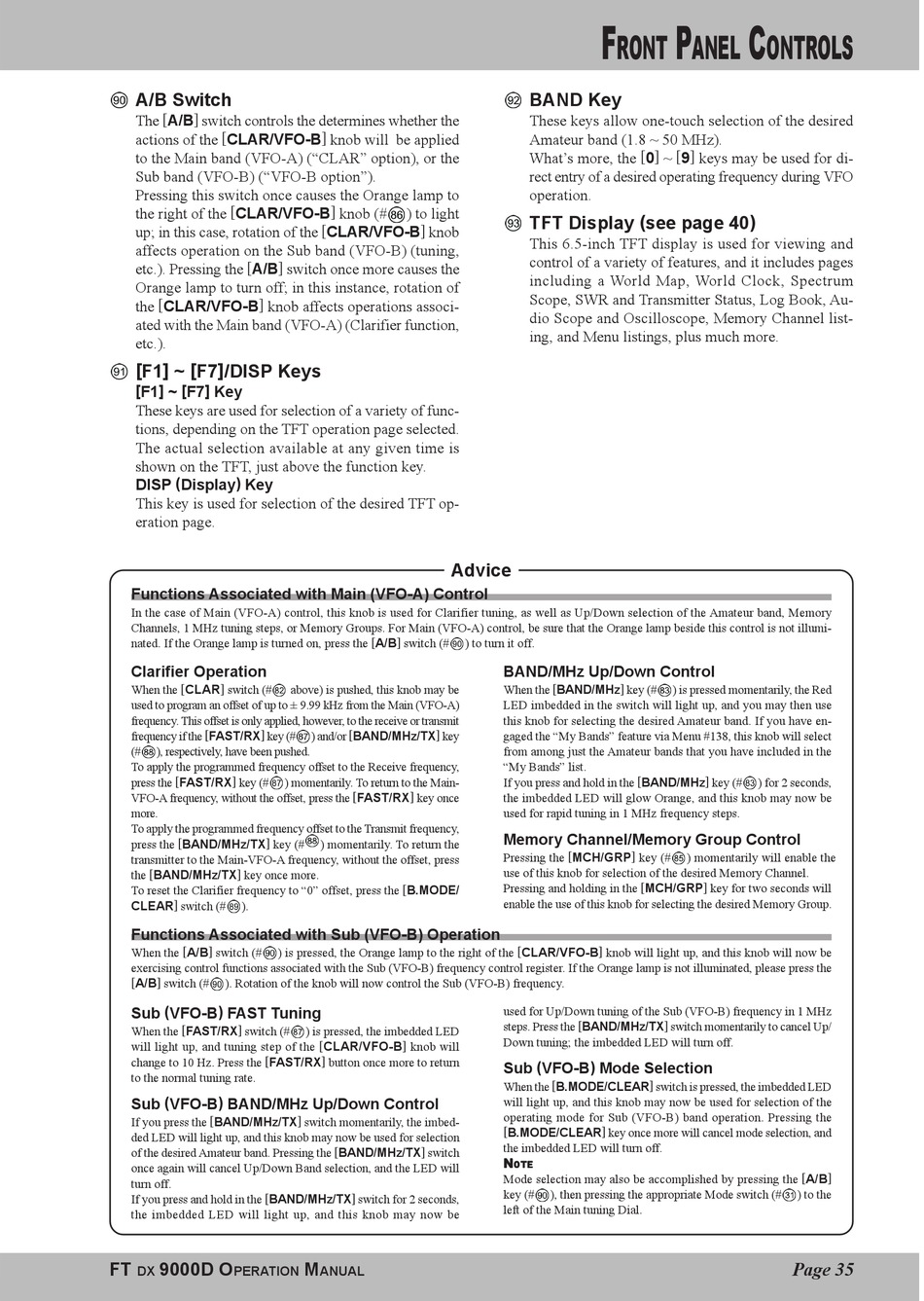

Yaesu FTDX9000D - DATA MANAGEMENT Operation Manual page 37

A/B Switch
The [ A/B ] switch controls the determines whether the
actions of the [ CLAR/VFO-B ] knob will be applied
to the Main band (VFO-A) ("CLAR" option), or the
Sub band (VFO-B) ("VFO-B option").
Pressing this switch once causes the Orange lamp to
the right of the [ CLAR/VFO-B ] knob (#
up; in this case, rotation of the [ CLAR/VFO-B ] knob
affects operation on the Sub band (VFO-B) (tuning,
etc.). Pressing the [ A/B ] switch once more causes the
Orange lamp to turn off; in this instance, rotation of
the [ CLAR/VFO-B ] knob affects operations associ-
ated with the Main band (VFO-A) (Clarifier function,
etc.).
[ F1 ] ~ [ F7 ] /DISP Keys
[ F1 ] ~ [ F7 ] Key
These keys are used for selection of a variety of func-
tions, depending on the TFT operation page selected.
The actual selection available at any given time is
shown on the TFT, just above the function key.
DISP ( Display ) Key
This key is used for selection of the desired TFT op-
eration page.
Functions Associated with Main (VFO-A) Control
In the case of Main (VFO-A) control, this knob is used for Clarifier tuning, as well as Up/Down selection of the Amateur band, Memory
Channels, 1 MHz tuning steps, or Memory Groups. For Main (VFO-A) control, be sure that the Orange lamp beside this control is not illumi-
nated. If the Orange lamp is turned on, press the [ A/B ] switch (#
Clarifier Operation
When the [ CLAR ] switch (#
used to program an offset of up to ± 9.99 kHz from the Main (VFO-A)
frequency. This offset is only applied, however, to the receive or transmit
frequency if the [ FAST/RX ] key (#
(# ), respectively, have been pushed.
To apply the programmed frequency offset to the Receive frequency,
press the [ FAST/RX ] key (#
VFO-A frequency, without the offset, press the [ FAST/RX ] key once
more.
To apply the programmed frequency offset to the Transmit frequency,
press the [ BAND/MHz/TX ] key (#
transmitter to the Main-VFO-A frequency, without the offset, press
the [ BAND/MHz/TX ] key once more.
To reset the Clarifier frequency to "0" offset, press the [ B.MODE/
CLEAR ] switch (#
).
Functions Associated with Sub (VFO-B) Operation
When the [ A/B ] switch (# ) is pressed, the Orange lamp to the right of the [ CLAR/VFO-B ] knob will light up, and this knob will now be
exercising control functions associated with the Sub (VFO-B) frequency control register. If the Orange lamp is not illuminated, please press the
[ A/B ] switch (#
). Rotation of the knob will now control the Sub (VFO-B) frequency.
Sub ( VFO-B ) FAST Tuning
When the [ FAST/RX ] switch (#
will light up, and tuning step of the [ CLAR/VFO-B ] knob will
change to 10 Hz. Press the [ FAST/RX ] button once more to return
to the normal tuning rate.
Sub ( VFO-B ) BAND/MHz Up/Down Control
If you press the [ BAND/MHz/TX ] switch momentarily, the imbed-
ded LED will light up, and this knob may now be used for selection
of the desired Amateur band. Pressing the [ BAND/MHz/TX ] switch
once again will cancel Up/Down Band selection, and the LED will
turn off.
If you press and hold in the [ BAND/MHz/TX ] switch for 2 seconds,
the imbedded LED will light up, and this knob may now be
FT 9000D O
DX PERATION
) to light
Advice
above) is pushed, this knob may be
) and/or [ BAND/MHz/TX ] key
) momentarily. To return to the Main-
) momentarily. To return the
) is pressed, the imbedded LED
M
ANUAL
F
RONT
BAND Key
These keys allow one-touch selection of the desired
Amateur band (1.8 ~ 50 MHz).
What's more, the [ 0 ] ~ [ 9 ] keys may be used for di-
rect entry of a desired operating frequency during VFO
operation.
TFT Display ( see page 40 )
This 6.5-inch TFT display is used for viewing and
control of a variety of features, and it includes pages
including a World Map, World Clock, Spectrum
Scope, SWR and Transmitter Status, Log Book, Au-
dio Scope and Oscilloscope, Memory Channel list-
ing, and Menu listings, plus much more.
) to turn it off.
BAND/MHz Up/Down Control
When the [ BAND/MHz ] key (#
LED imbedded in the switch will light up, and you may then use
this knob for selecting the desired Amateur band. If you have en-
gaged the "My Bands" feature via Menu #138, this knob will select
from among just the Amateur bands that you have included in the
"My Bands" list.
If you press and hold in the [ BAND/MHz ] key (#
the imbedded LED will glow Orange, and this knob may now be
used for rapid tuning in 1 MHz frequency steps.
Memory Channel/Memory Group Control
Pressing the [ MCH/GRP ] key (#
use of this knob for selection of the desired Memory Channel.
Pressing and holding in the [ MCH/GRP ] key for two seconds will
enable the use of this knob for selecting the desired Memory Group.
used for Up/Down tuning of the Sub (VFO-B) frequency in 1 MHz
steps. Press the [ BAND/MHz/TX ] switch momentarily to cancel Up/
Down tuning; the imbedded LED will turn off.
Sub ( VFO-B ) Mode Selection
When the [ B.MODE/CLEAR ] switch is pressed, the imbedded LED
will light up, and this knob may now be used for selection of the
operating mode for Sub (VFO-B) band operation. Pressing the
[ B.MODE/CLEAR ] key once more will cancel mode selection, and
the imbedded LED will turn off.
N N N N N
O O O O O TE TE TE
TE TE
Mode selection may also be accomplished by pressing the [ A/B ]
key (# ), then pressing the appropriate Mode switch (#
left of the Main tuning Dial.
P C
ANEL ONTROLS
) is pressed momentarily, the Red
) for 2 seconds,
) momentarily will enable the
) to the
