I
NSTALLATION AND
K , K
EY EYER

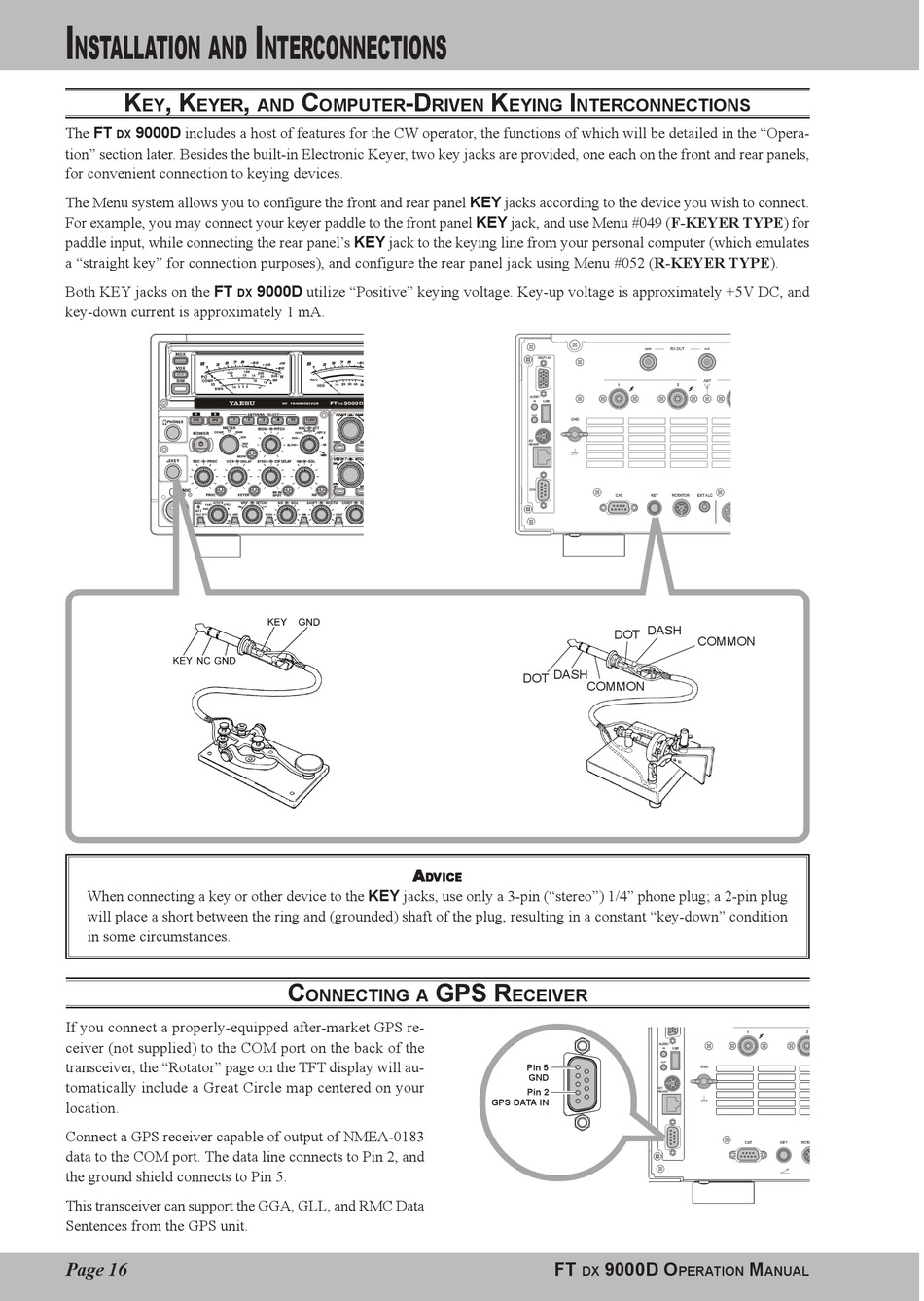

The FT 9000D includes a host of features for the CW operator, the functions of which will be detailed in the "Opera-
DX
tion" section later. Besides the built-in Electronic Keyer, two key jacks are provided, one each on the front and rear panels,
for convenient connection to keying devices.
The Menu system allows you to configure the front and rear panel KEY jacks according to the device you wish to connect.
For example, you may connect your keyer paddle to the front panel KEY jack, and use Menu #049 (F-KEYER TYPE) for
paddle input, while connecting the rear panel's KEY jack to the keying line from your personal computer (which emulates
a "straight key" for connection purposes), and configure the rear panel jack using Menu #052 (R-KEYER TYPE).
Both KEY jacks on the FT
DX
key-down current is approximately 1 mA.
When connecting a key or other device to the KEY jacks, use only a 3-pin ("stereo") 1/4" phone plug; a 2-pin plug
will place a short between the ring and (grounded) shaft of the plug, resulting in a constant "key-down" condition
in some circumstances.
If you connect a properly-equipped after-market GPS re-
ceiver (not supplied) to the COM port on the back of the
transceiver, the "Rotator" page on the TFT display will au-
tomatically include a Great Circle map centered on your
location.
Connect a GPS receiver capable of output of NMEA-0183
data to the COM port. The data line connects to Pin 2, and
the ground shield connects to Pin 5.
This transceiver can support the GGA, GLL, and RMC Data
Sentences from the GPS unit.
Page 16
I
NTERCONNECTIONS
, C -D
AND OMPUTER
9000D utilize "Positive" keying voltage. Key-up voltage is approximately +5V DC, and
A A A A A
C
ONNECTING A
K I
RIVEN EYING NTERCONNECTIONS
DASH
DOT
COMMON
D D D D D VICE VICE VICE VICE VICE
GPS R
ECEIVER
Pin 5
GND
Pin 2
GPS DATA IN
FT
DX
DASH
DOT
COMMON
9000D O M
PERATION ANUAL
