Full Duplex Operation - Yaesu FTDX9000D - DATA MANAGEMENT Operation Manual

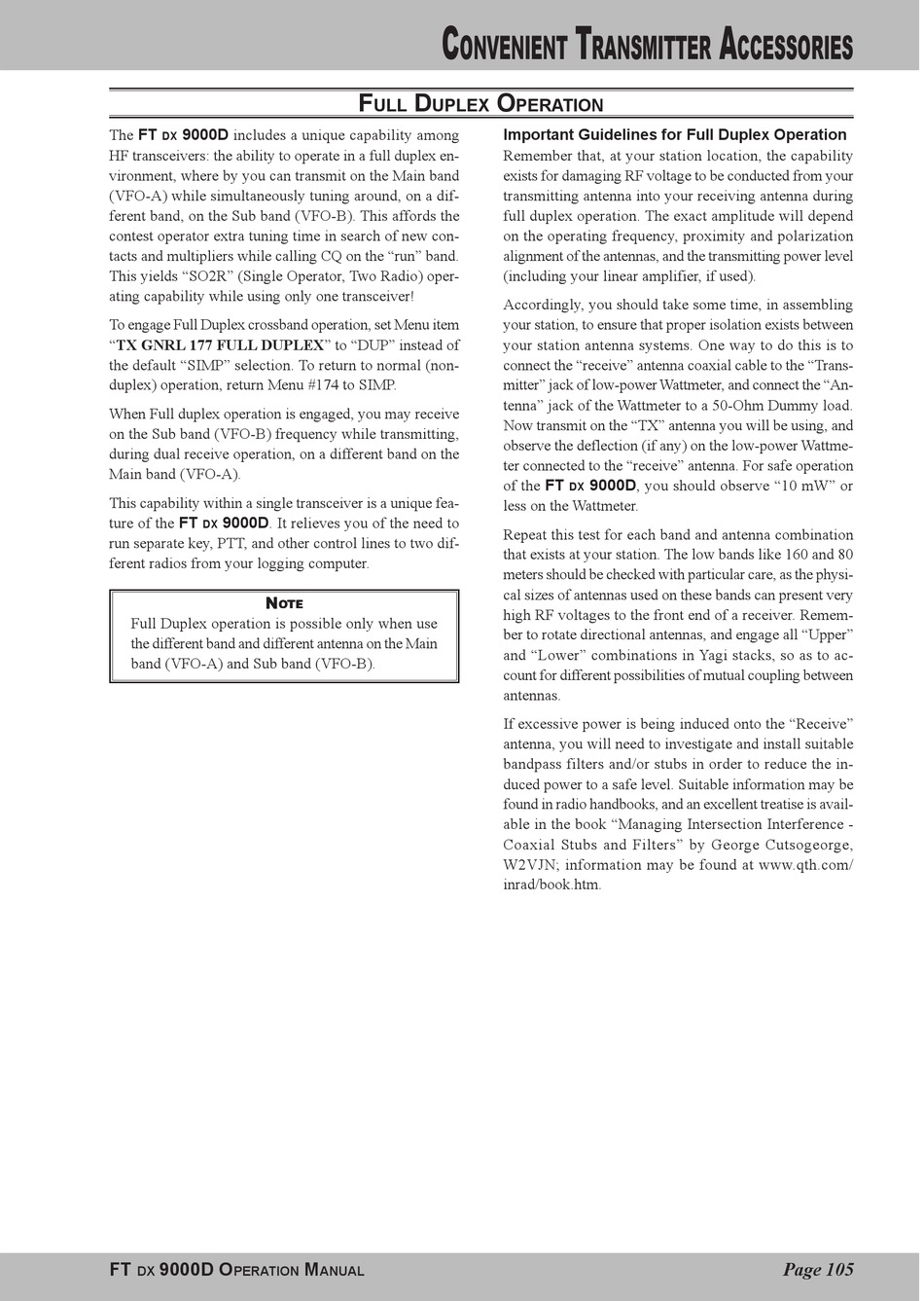

The FT 9000D includes a unique capability among
DX
HF transceivers: the ability to operate in a full duplex en-
vironment, where by you can transmit on the Main band
(VFO-A) while simultaneously tuning around, on a dif-
ferent band, on the Sub band (VFO-B). This affords the
contest operator extra tuning time in search of new con-
tacts and multipliers while calling CQ on the "run" band.
This yields "SO2R" (Single Operator, Two Radio) oper-
ating capability while using only one transceiver!
To engage Full Duplex crossband operation, set Menu item
"TX GNRL 177 FULL DUPLEX" to "DUP" instead of
the default "SIMP" selection. To return to normal (non-
duplex) operation, return Menu #174 to SIMP.
When Full duplex operation is engaged, you may receive
on the Sub band (VFO-B) frequency while transmitting,
during dual receive operation, on a different band on the
Main band (VFO-A).
This capability within a single transceiver is a unique fea-
ture of the FT 9000D. It relieves you of the need to
DX
run separate key, PTT, and other control lines to two dif-
ferent radios from your logging computer.
N N N N N
O O O O O TE
Full Duplex operation is possible only when use
the different band and different antenna on the Main
band (VFO-A) and Sub band (VFO-B).
FT 9000D O
DX PERATION
C
ONVENIENT
F D
ULL UPLEX
TE TE TE TE
M
ANUAL
T
RANSMITTER
O
PERATION
Important Guidelines for Full Duplex Operation
Remember that, at your station location, the capability
exists for damaging RF voltage to be conducted from your
transmitting antenna into your receiving antenna during
full duplex operation. The exact amplitude will depend
on the operating frequency, proximity and polarization
alignment of the antennas, and the transmitting power level
(including your linear amplifier, if used).
Accordingly, you should take some time, in assembling
your station, to ensure that proper isolation exists between
your station antenna systems. One way to do this is to
connect the "receive" antenna coaxial cable to the "Trans-
mitter" jack of low-power Wattmeter, and connect the "An-
tenna" jack of the Wattmeter to a 50-Ohm Dummy load.
Now transmit on the "TX" antenna you will be using, and
observe the deflection (if any) on the low-power Wattme-
ter connected to the "receive" antenna. For safe operation
of the FT 9000D, you should observe "10 mW" or
DX
less on the Wattmeter.
Repeat this test for each band and antenna combination
that exists at your station. The low bands like 160 and 80
meters should be checked with particular care, as the physi-
cal sizes of antennas used on these bands can present very
high RF voltages to the front end of a receiver. Remem-
ber to rotate directional antennas, and engage all "Upper"
and "Lower" combinations in Yagi stacks, so as to ac-
count for different possibilities of mutual coupling between
antennas.
If excessive power is being induced onto the "Receive"
antenna, you will need to investigate and install suitable
bandpass filters and/or stubs in order to reduce the in-
duced power to a safe level. Suitable information may be
found in radio handbooks, and an excellent treatise is avail-
able in the book "Managing Intersection Interference -
Coaxial Stubs and Filters" by George Cutsogeorge,
W2VJN; information may be found at www.qth.com/
inrad/book.htm.
