I
NSTALLATION AND
C
ONNECTION OF

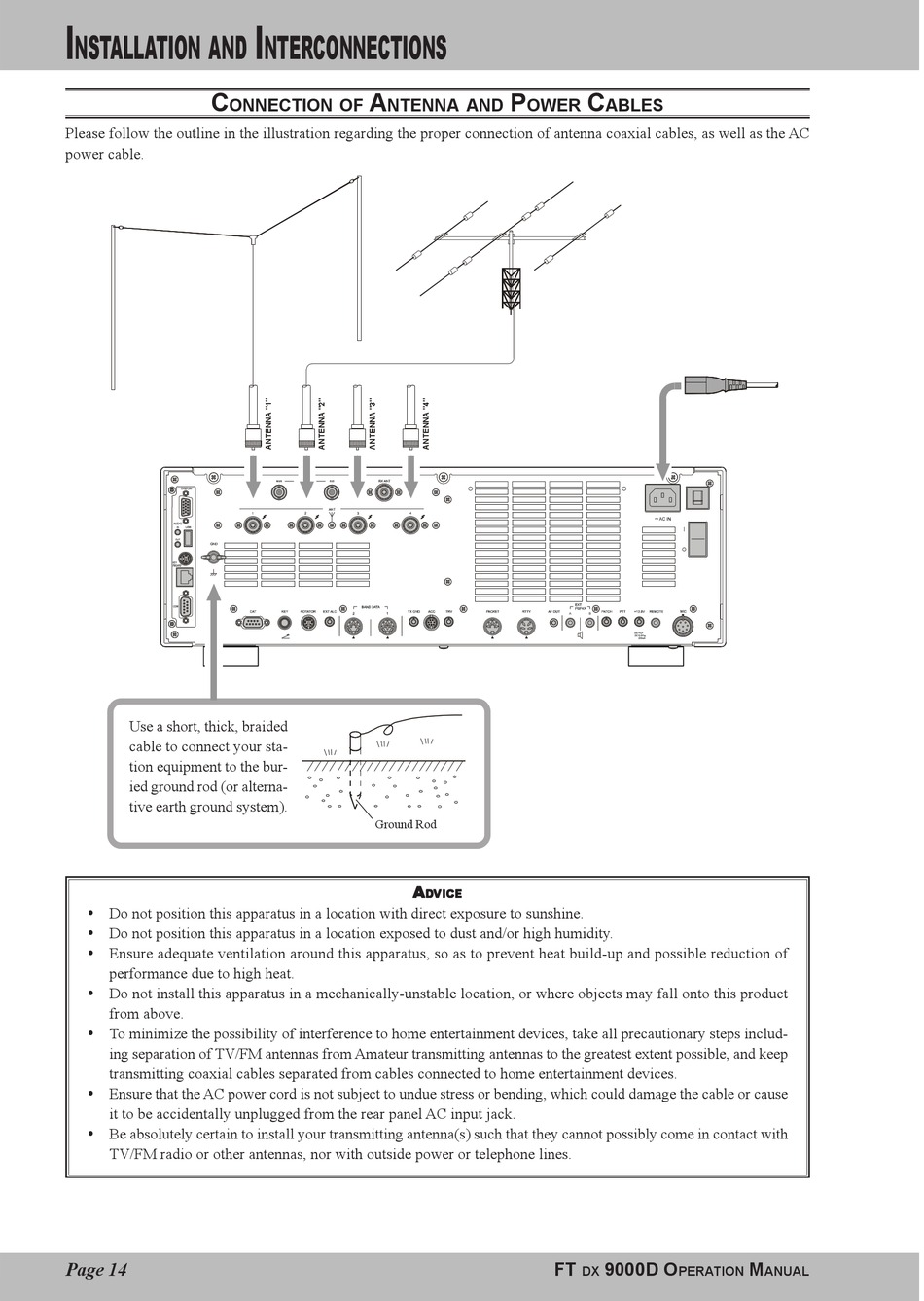

Please follow the outline in the illustration regarding the proper connection of antenna coaxial cables, as well as the AC
power cable.
Use a short, thick, braided
cable to connect your sta-
tion equipment to the bur-
ied ground rod (or alterna-
tive earth ground system).
Do not position this apparatus in a location with direct exposure to sunshine.
Do not position this apparatus in a location exposed to dust and/or high humidity.
Ensure adequate ventilation around this apparatus, so as to prevent heat build-up and possible reduction of
performance due to high heat.
Do not install this apparatus in a mechanically-unstable location, or where objects may fall onto this product
from above.
To minimize the possibility of interference to home entertainment devices, take all precautionary steps includ-
ing separation of TV/FM antennas from Amateur transmitting antennas to the greatest extent possible, and keep
transmitting coaxial cables separated from cables connected to home entertainment devices.
Ensure that the AC power cord is not subject to undue stress or bending, which could damage the cable or cause
it to be accidentally unplugged from the rear panel AC input jack.
Be absolutely certain to install your transmitting antenna(s) such that they cannot possibly come in contact with
TV/FM radio or other antennas, nor with outside power or telephone lines.
Page 14
I
NTERCONNECTIONS
A
NTENNA AND
Ground Rod
A A A A A
D D D D D VICE
P C
OWER ABLES
A B
VICE VICE VICE
VICE
FT 9000D O
DX
M
PERATION ANUAL
