SSB/AM M T
ODE

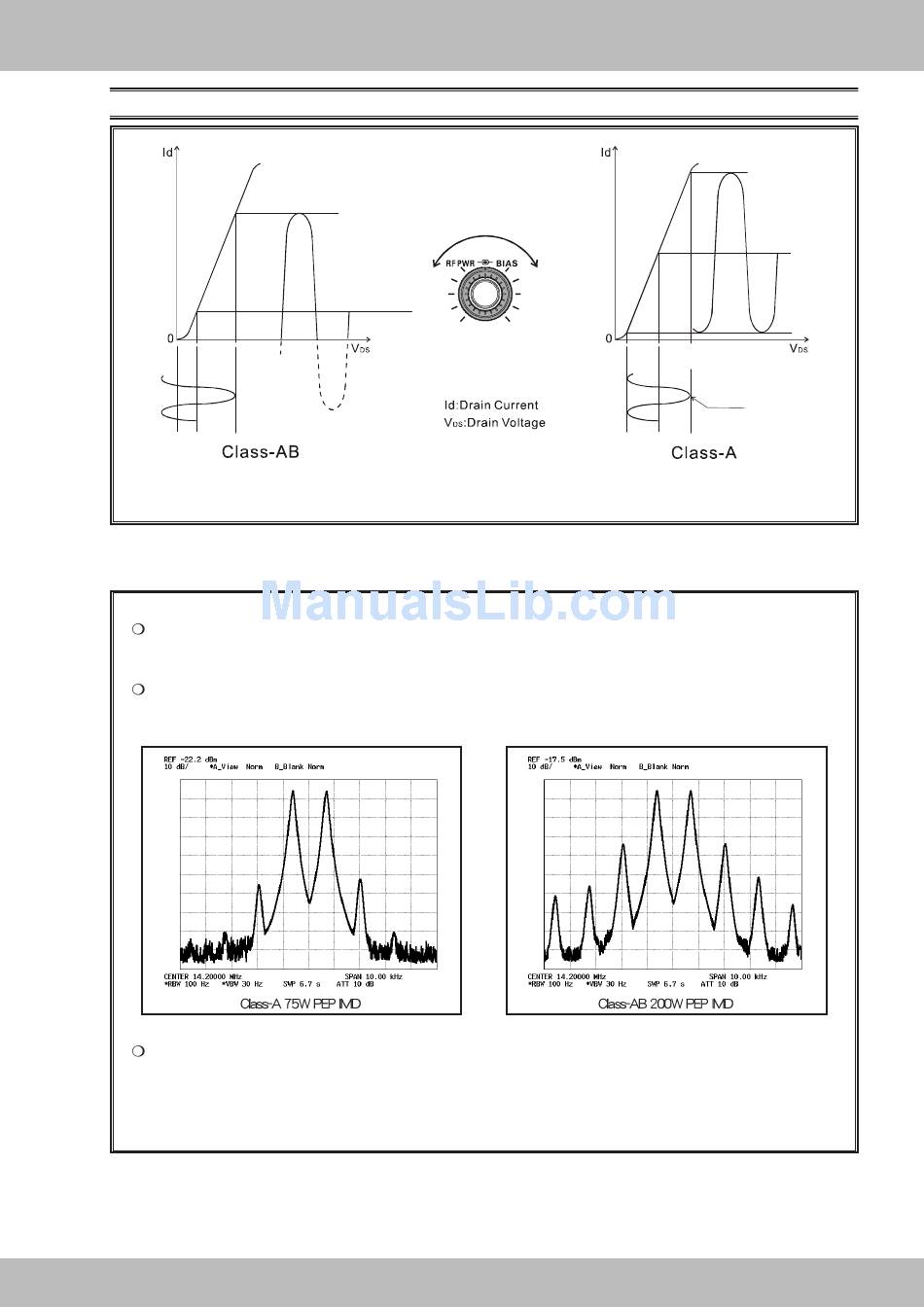

Class-A operation provides a significant improvement in transmitter distortion suppression. During Class-A,
the 3rd-order IMD products are typically suppressed 50 dB, while the 5th- and higher-order IMD products (that
can cause "splatter" that interferes with others) will typically be suppressed 70 dB or more.
If you are using a linear amplifier such as the VL-1000, the low distortion produced by the FT
transmitter means that these intermodulation distortion products will not exist to be amplified by your linear.
High-Power 200-Watt Final Amplifier Stage
The final amplifier stage of the FT
devices operating at 50 Volts. The push-pull configuration provides low distortion along with high power
output. The 120 mm thermostatically-controlled cooling fan directs forced air across the heat sink, should the
heat sink temperature exceed the temperature that will trigger the thermostat.
