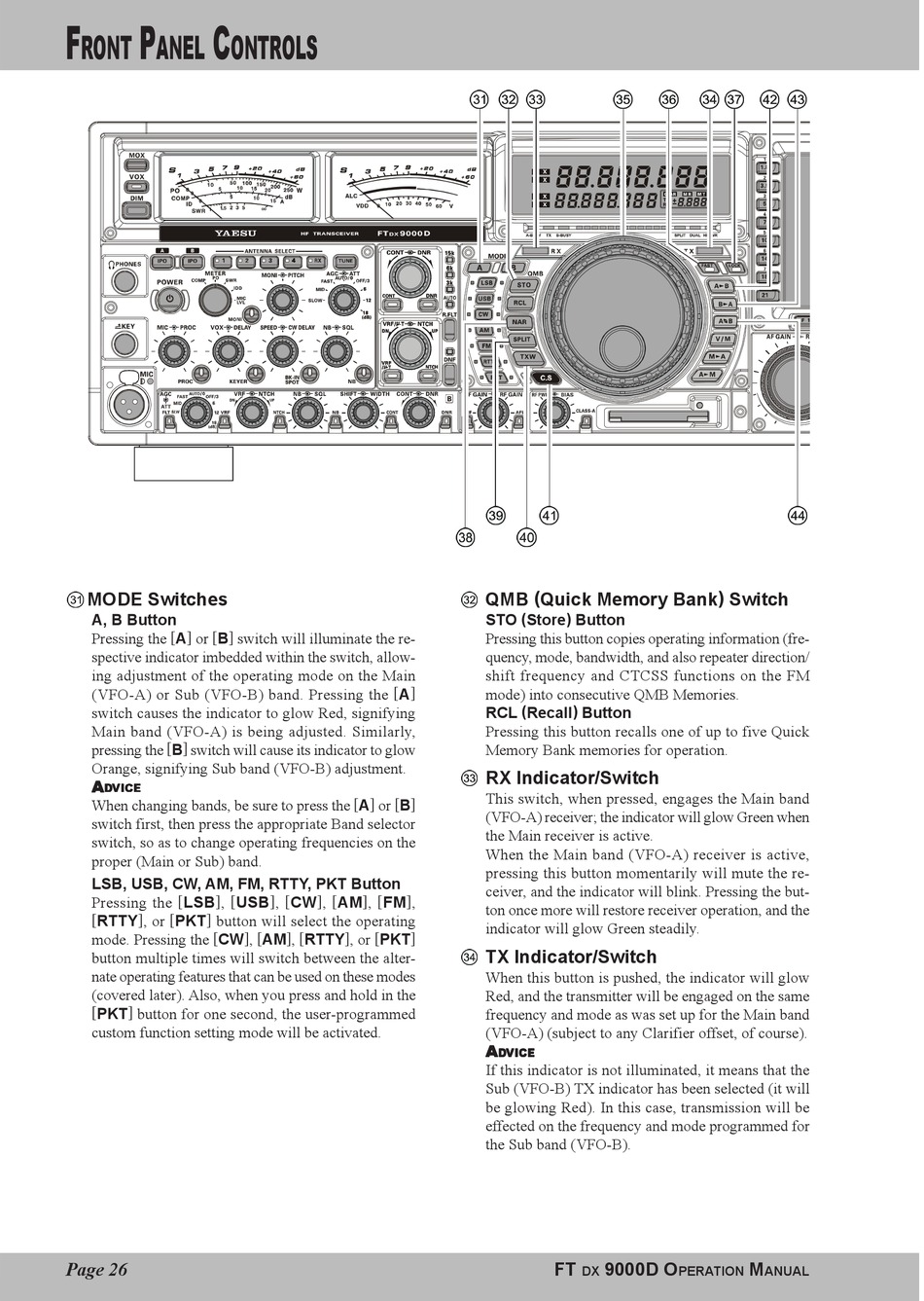

MODE Switches
A, B Button
Pressing the [ A ] or [ B ] switch will illuminate the re-
spective indicator imbedded within the switch, allow-
ing adjustment of the operating mode on the Main
(VFO-A) or Sub (VFO-B) band. Pressing the [ A ]
switch causes the indicator to glow Red, signifying
Main band (VFO-A) is being adjusted. Similarly,
pressing the [ B ] switch will cause its indicator to glow
Orange, signifying Sub band (VFO-B) adjustment.
A A A A A
D D D D D VICE VICE VICE VICE VICE
When changing bands, be sure to press the [ A ] or [ B ]
switch first, then press the appropriate Band selector
switch, so as to change operating frequencies on the
proper (Main or Sub) band.
LSB, USB, CW, AM, FM, RTTY, PKT Button
Pressing the [ LSB ] , [ USB ] , [ CW ] , [ AM ] , [ FM ] ,
[ RTTY ] , or [ PKT ] button will select the operating
mode. Pressing the [ CW ] , [ AM ] , [ RTTY ] , or [ PKT ]
button multiple times will switch between the alter-
nate operating features that can be used on these modes
(covered later). Also, when you press and hold in the
[ PKT ] button for one second, the user-programmed
custom function setting mode will be activated.
Page 26
QMB ( Quick Memory Bank ) Switch
STO ( Store ) Button
Pressing this button copies operating information (fre-
quency, mode, bandwidth, and also repeater direction/
shift frequency and CTCSS functions on the FM
mode) into consecutive QMB Memories.
RCL ( Recall ) Button
Pressing this button recalls one of up to five Quick
Memory Bank memories for operation.
RX Indicator/Switch
This switch, when pressed, engages the Main band
(VFO-A) receiver; the indicator will glow Green when
the Main receiver is active.
When the Main band (VFO-A) receiver is active,
pressing this button momentarily will mute the re-
ceiver, and the indicator will blink. Pressing the but-
ton once more will restore receiver operation, and the
indicator will glow Green steadily.
TX Indicator/Switch
When this button is pushed, the indicator will glow
Red, and the transmitter will be engaged on the same
frequency and mode as was set up for the Main band
(VFO-A) (subject to any Clarifier offset, of course).
A A A A A
D D D D D VICE VICE VICE VICE
VICE
If this indicator is not illuminated, it means that the
Sub (VFO-B) TX indicator has been selected (it will
be glowing Red). In this case, transmission will be
effected on the frequency and mode programmed for
the Sub band (VFO-B).
