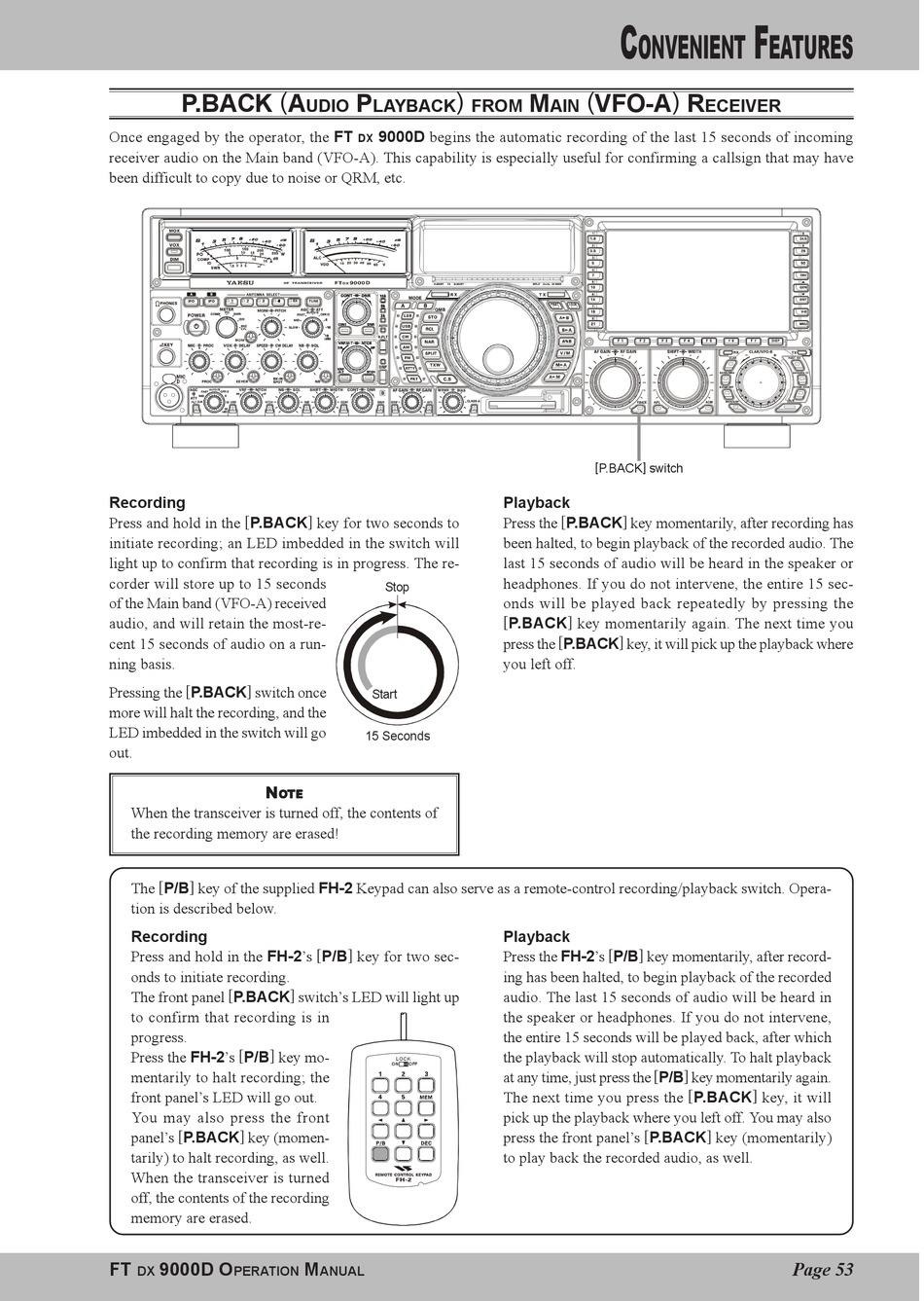

P.back (Audio Playback) From Main (Vfo-A) Receiver - Yaesu FTDX9000D - DATA MANAGEMENT Operation Manual

P.BACK ( A
Once engaged by the operator, the FT
receiver audio on the Main band (VFO-A). This capability is especially useful for confirming a callsign that may have
been difficult to copy due to noise or QRM, etc.
Recording
Press and hold in the [ P.BACK ] key for two seconds to
initiate recording; an LED imbedded in the switch will
light up to confirm that recording is in progress. The re-
corder will store up to 15 seconds
of the Main band (VFO-A) received
audio, and will retain the most-re-
cent 15 seconds of audio on a run-
ning basis.
Pressing the [ P.BACK ] switch once
more will halt the recording, and the
LED imbedded in the switch will go
out.
N N N N N
O O O O O TE
When the transceiver is turned off, the contents of
the recording memory are erased!
The [ P/B ] key of the supplied FH-2 Keypad can also serve as a remote-control recording/playback switch. Opera-
tion is described below.
Recording
Press and hold in the FH-2's [ P/B ] key for two sec-
onds to initiate recording.
The front panel [ P.BACK ] switch's LED will light up
to confirm that recording is in
progress.
Press the FH-2's [ P/B ] key mo-
mentarily to halt recording; the
front panel's LED will go out.
You may also press the front
panel's [ P.BACK ] key (momen-
tarily) to halt recording, as well.
When the transceiver is turned
off, the contents of the recording
memory are erased.
FT 9000D O
DX PERATION
)
P
UDIO LAYBACK
9000D begins the automatic recording of the last 15 seconds of incoming
DX
Stop
Start
15 Seconds
TE TE TE TE
LOCK
ON OFF
M
ANUAL
C
ONVENIENT
( VFO-A ) R
M
FROM AIN
[ P.BACK ] switch
Playback
Press the [ P.BACK ] key momentarily, after recording has
been halted, to begin playback of the recorded audio. The
last 15 seconds of audio will be heard in the speaker or
headphones. If you do not intervene, the entire 15 sec-
onds will be played back repeatedly by pressing the
[ P.BACK ] key momentarily again. The next time you
press the [ P.BACK ] key, it will pick up the playback where
you left off.
Playback
Press the FH-2's [ P/B ] key momentarily, after record-
ing has been halted, to begin playback of the recorded
audio. The last 15 seconds of audio will be heard in
the speaker or headphones. If you do not intervene,
the entire 15 seconds will be played back, after which
the playback will stop automatically. To halt playback
at any time, just press the [ P/B ] key momentarily again.
The next time you press the [ P.BACK ] key, it will
pick up the playback where you left off. You may also
press the front panel's [ P.BACK ] key (momentarily)
to play back the recorded audio, as well.
F
EATURES
ECEIVER
Page 53
