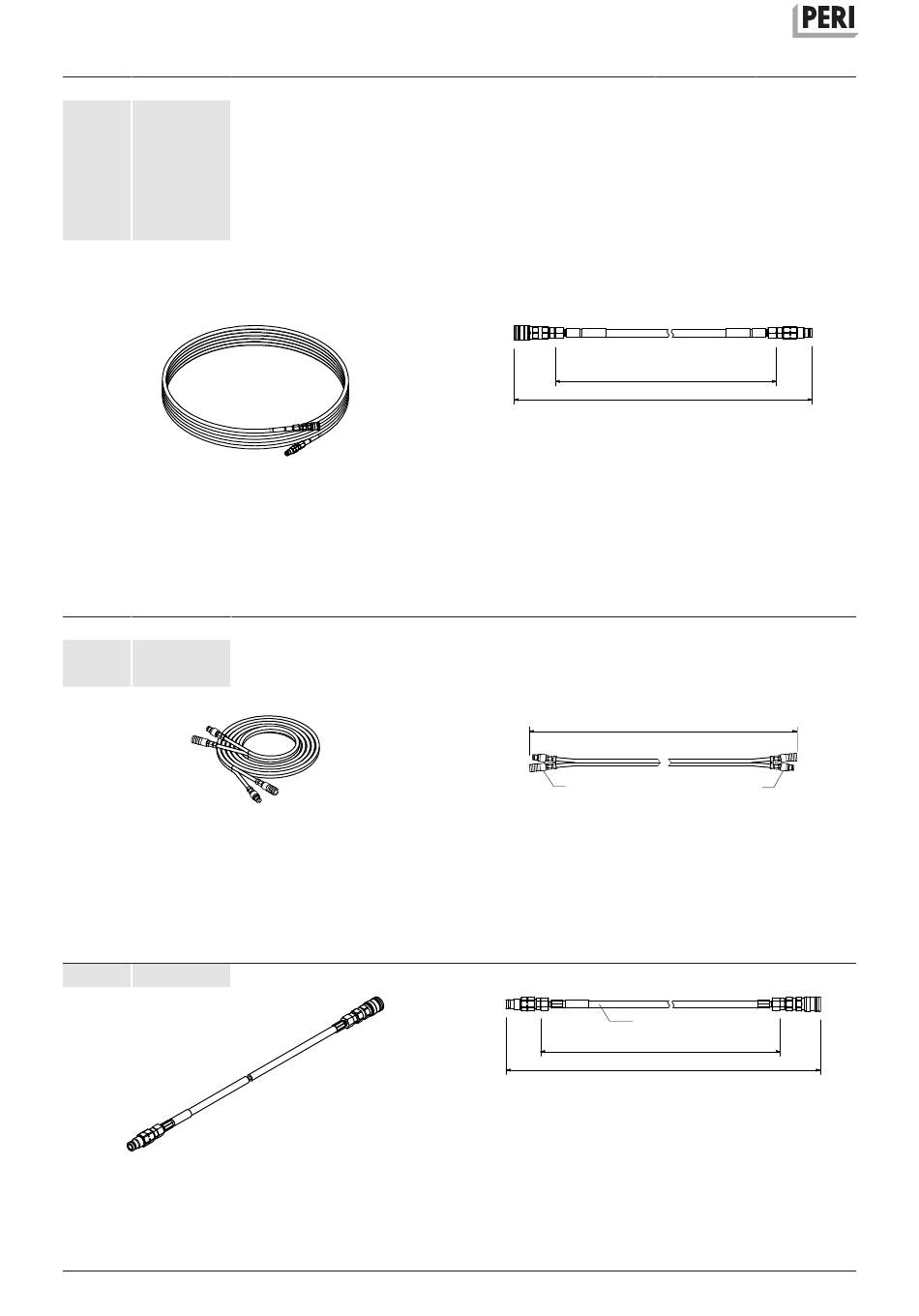

Hydraulics VBC
Art no. Weight [kg]
129035 0.996 Hydr.Hose 853-2SN-DN08-FF 1m
129036 1.430 Hydr.Hose 853-2SN-DN08-FF 2m
129419 2.690 Hydr.Hose 853-2SN-DN08-FF 5m
129420 4.900 Hydr.Hose 853-2SN-DN08-FF 10m
129421 7 .120 Hydr.Hose 853-2SN-DN08-FF 15m
129422 9.330 Hydr.Hose 853-2SN-DN08-FF 20m
Hydraulic hoses with quick couplings and nominal diameter 8mm.
Notes
Follow applicable Safety Regulations for the installation and maintenance of hydraulic lines!
Consists of
1 pc 128992 Pin ISO16028 DN10 R3/8IG
1 pc 128993 Sleeve ISO16028 DN10 R3/8IG
2 pc 051750 Male Stud Coupl. X-GE12PSR-ED
Art no. Weight [kg]
110069 8.500 Hydr.Twin Hose RCS 10m
110070 15.300 Hydr.Twin Hose RCS 20m
Two permanently connected hydraulic hoses for connecting hydraulic pumps with hydraulic climbing devices.
Consists of
2 pc 128992 Pin ISO16028 DN10 R3/8IG
2 pc 128993 Sleeve ISO16028 DN10 R3/8IG
4 pc 051750 Male Stud Coupl. X-GE12PSR-ED
Art no. Weight [kg]
126646 0.651 Bypass Hose RCS
68
Hydr.Hoses 853-2SN-DN08-FF
Hydr.Twin Hoses RCS
L [mm]
1169
2169
5170
10170
15170
20170
X
L
10m / 20m
110822
110823
Ø15
600
764
X [mm]
1000
2000
5000
10000
15000
20000
