B5 Rear carriage
Step 2
1. Extend the rear main cylinder (4)
approx. 50 mm.
→ The rear cylinder head (27) is
pressed upwards and pulls the roll-
er blocks (36) against the rail (8).
→ The rear carriage tube (25) is
pressed downwards with the rear
carriage rocker (26) against the lift-
ing force.
→ Cantilever frame moves upwards
accordingly.
→ The rear carriage is in a load-trans-
fer state.
→ Clearance is created on the domed
nuts (62).
2 Screw down the auxiliary tie nuts
(61) until they rest against the main
frame chord (23).
→ The rear carriage rocker is secured
in the bottom position.
(Fig. B5.02)

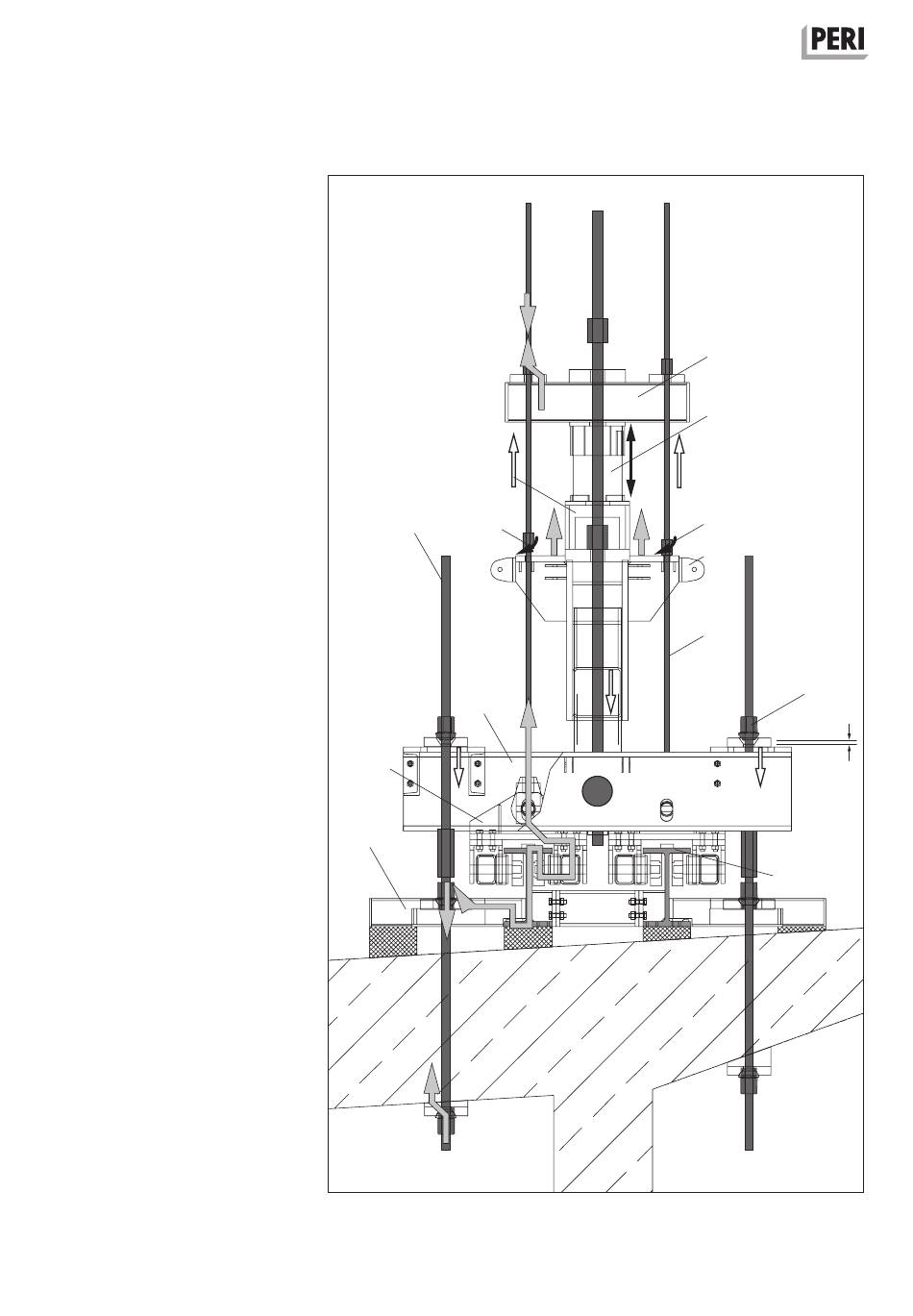

Force progression in a load-transfer
state
The lifting force from the main frame
chord is transferred to the rail (8) via
auxiliary tie rods (51) and roller blocks
(36).
The hold-down brackets (28) carry the
force to the anchor tie rods (52) which
then transfer the force into the
structure.
(Fig. B5.02)
46
25
52
61
26
36
28
Fig. B5.02
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
27
4
61
23
51
62
8
