B4 Front carriage

Activating front carriage

→ Carriage is in a supported position
= operational mode.
→ Brake is activated.

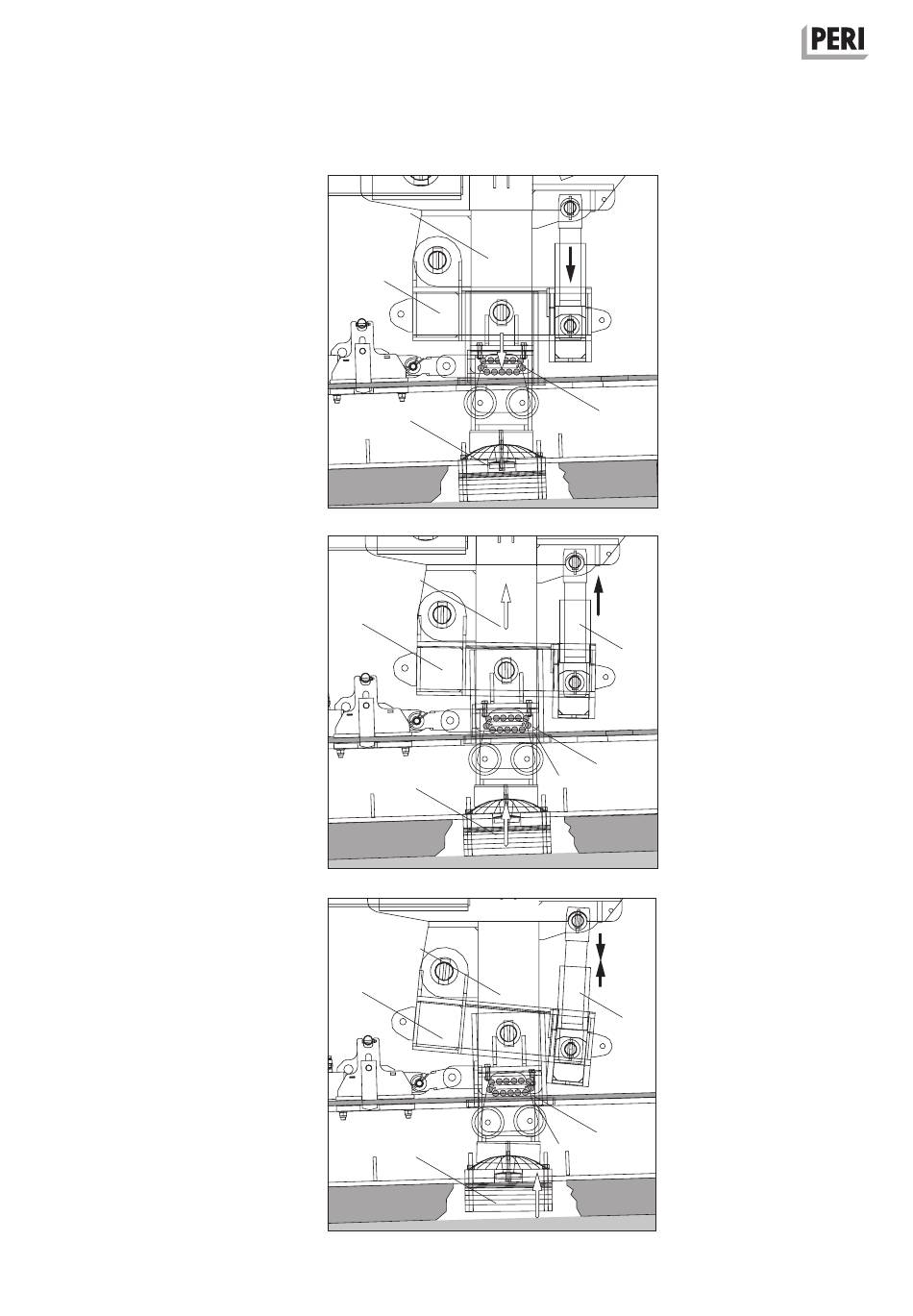

1. Extend the front main cylinder (2).
→ Front carriage (31) moves down-
wards until the roller bearing (31.1) is
positioned on the rail (8). (Fig. B4.03)
→ Front main cylinder raises the main
frame post (24) with post base (30)
when extended further. (Fig. B4.04)
→ Cantilever frame moves upwards
accordingly.
→ Front carriage is in drive mode.
(Fig. B4.05)
