C1 Drive mode
Moving the balanced cantile-
ver equipment forward
Requirements
■
Driving cylinder is retracted.
■
Locking plates of both drive catch
heads are engaged in a section of
the rail.
■
The entire unit has been put into
drive mode:
– All formwork elements have been
released,
– All loose objects have been re-
moved or secured,
– The front and rear chassis are
activated.
(Fig. C1.02)
Drive mode

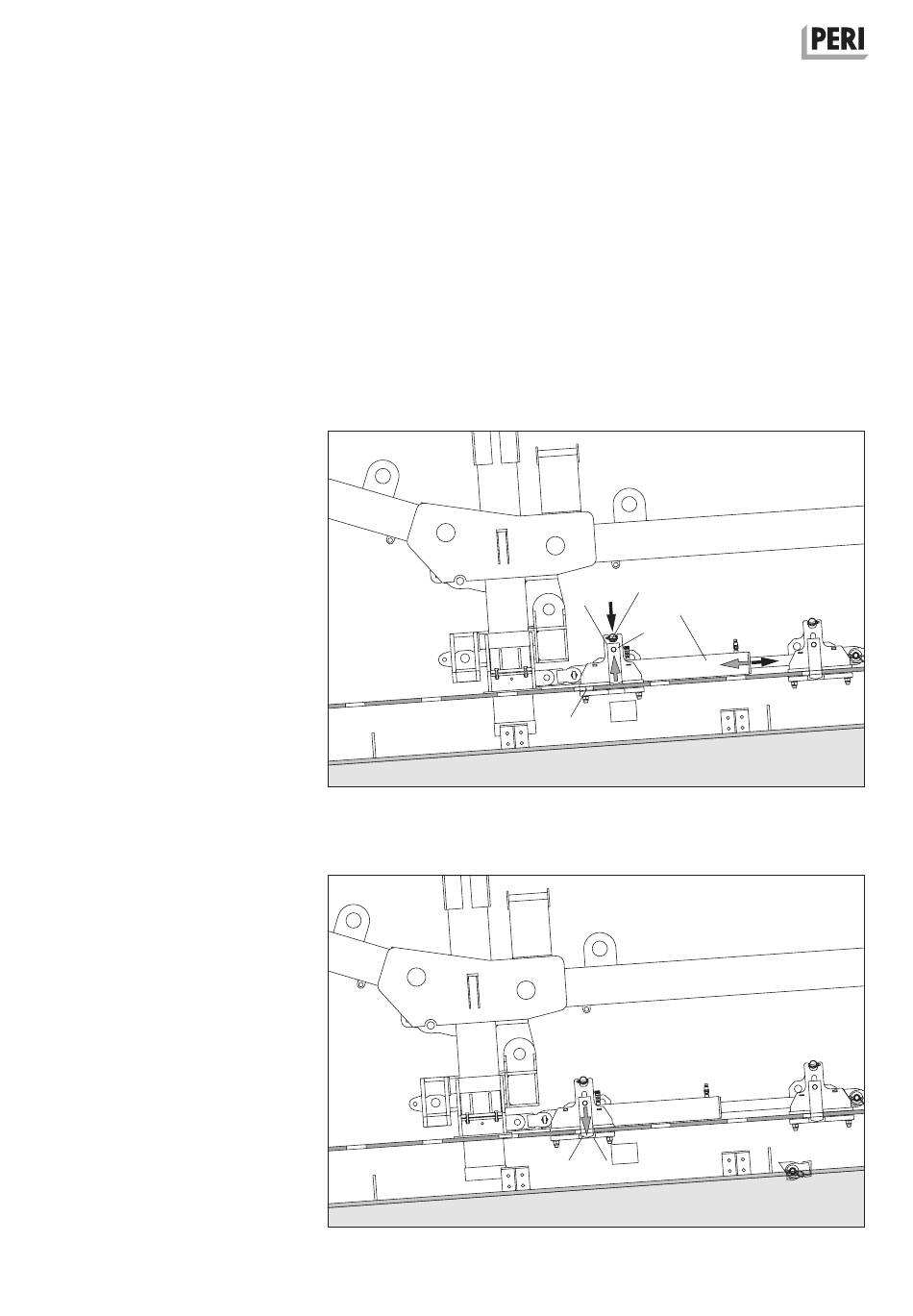

1. Press the release lever (21.2) of drive
catch head (21B) downwards, there-
by lifting the locking plate (21.1).
2. Extend the drive cylinder (3) until the
next section of rail (8.1). After leaving
the previous section of rail, the re-
lease lever can then be released.
→ The balanced cantilever equipment
and drive catch head (21B) are
moved forward. (Fig. C1.03)
→ The locking plate (21.1) of drive
catch head (21B) drops into the
next section (8.1) of the rail.
(Fig. C1.04)
3. Stop the drive cylinder from extend-
ing any further.
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
Assembly Instructions
Fig. C1.03
Fig. C1.04
21.2
21B
3
21.1
8.1
21.1 8.1
