Peri VARIOKIT VBC Assembly Instructions Manual page 47

Balanced cantilever hydraulic system, hydraulic system and standard cycle

B5 Rear carriage

Step 3

1. Release the upper domed nuts (62).

2. Screw out the upper anchor tie rods

(52) from the hexagonal coupler (64)

and lay to one side.

3. Remove the hexagonal coupler and

lay to one side.

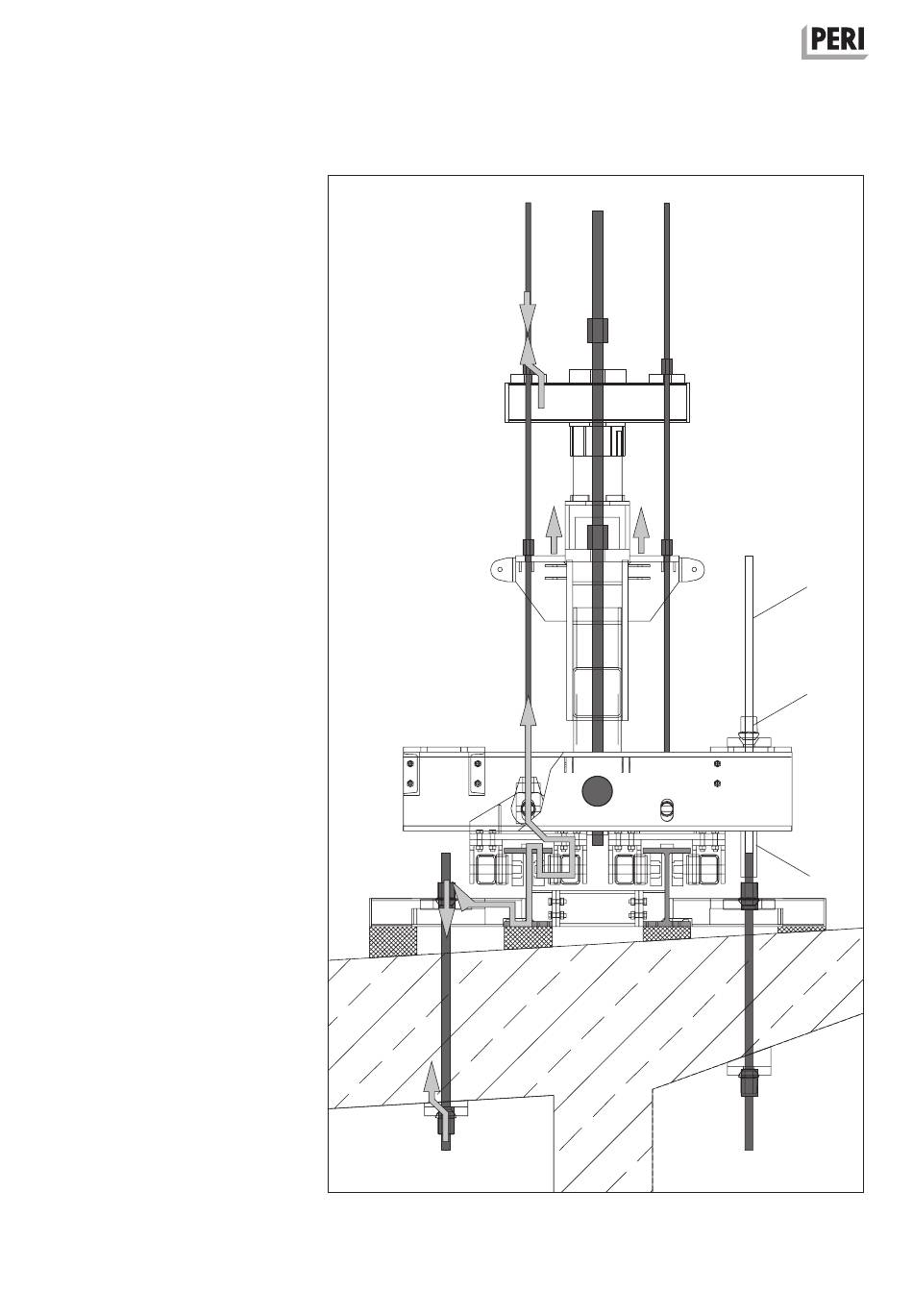

(Fig. B5.03)

VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle

Assembly Instructions

Fig. B5.03
