C1 Drive mode

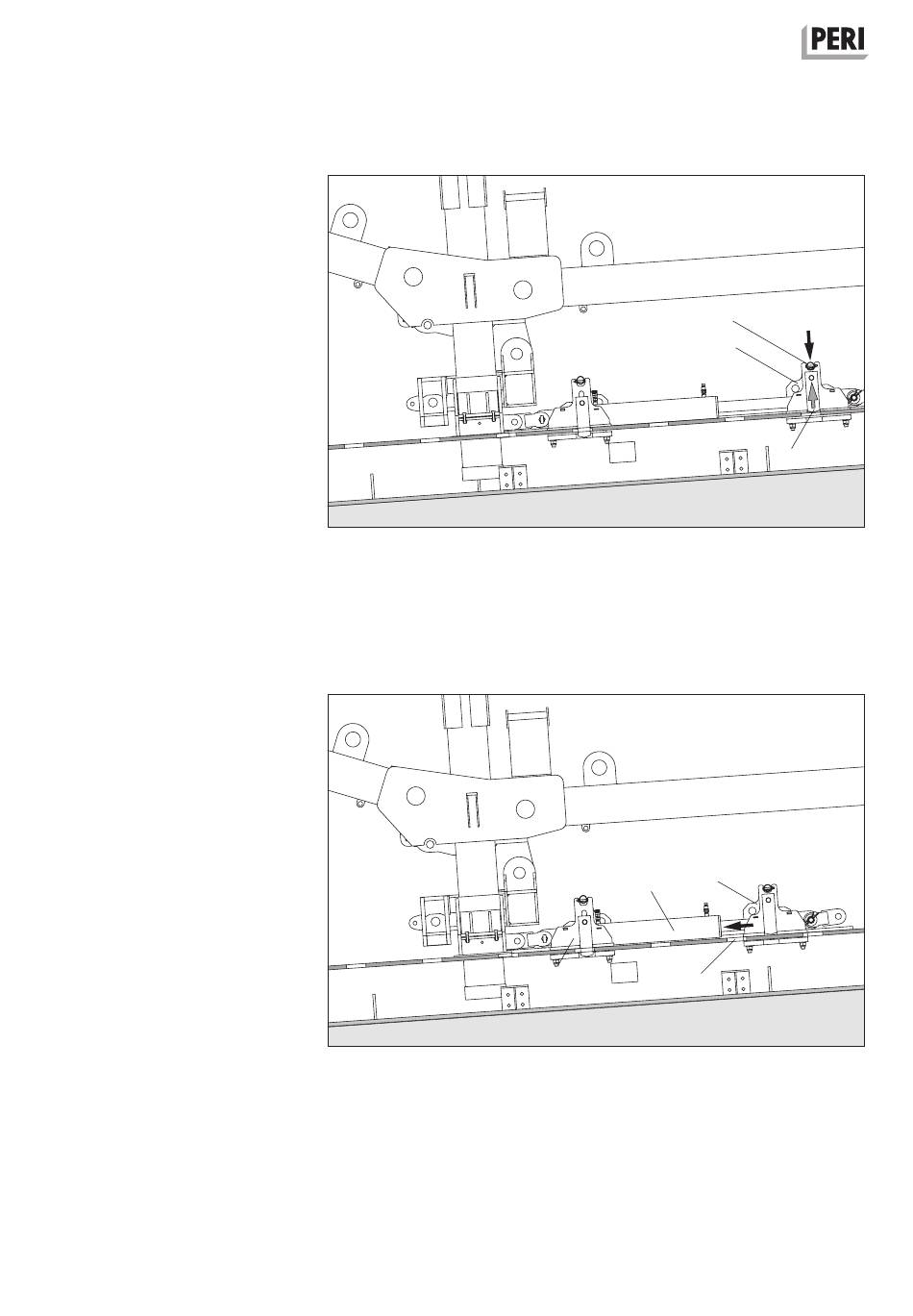

4. Press the release lever (21.2) of the
drive catch head (21A) downwards,
thereby lifting the locking plate (21.1).
(Fig. C1.05)
5. Retract the drive cylinder (3) to the
next section of rail (8.1). After leaving
the previous section of rail, the re-
lease lever can then be released.
→ The balanced cantilever equipment
is held securely by the drive catch
head (21B).
→ The drive catch head (21A) is
pulled forward. (Fig. C1.06)
54
Fig. C1.05
Fig. C1.06
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
