C1 Drive mode

General
Components:
3 Driving cylinder
8 Rail VBC
21 Drive Catch Head-2 VBC
The balanced cantilever equipment is
always moved or locked in a controlled
manner by two independent drive catch
heads (21).
The two drive catch heads are identical
in construction and function.
The drive catch head (21B) is mounted
to the main frame column with the cou-
pling rod (21.3).
The drive catch head (21A) is connect-
ed to drive catch head (21B) via the

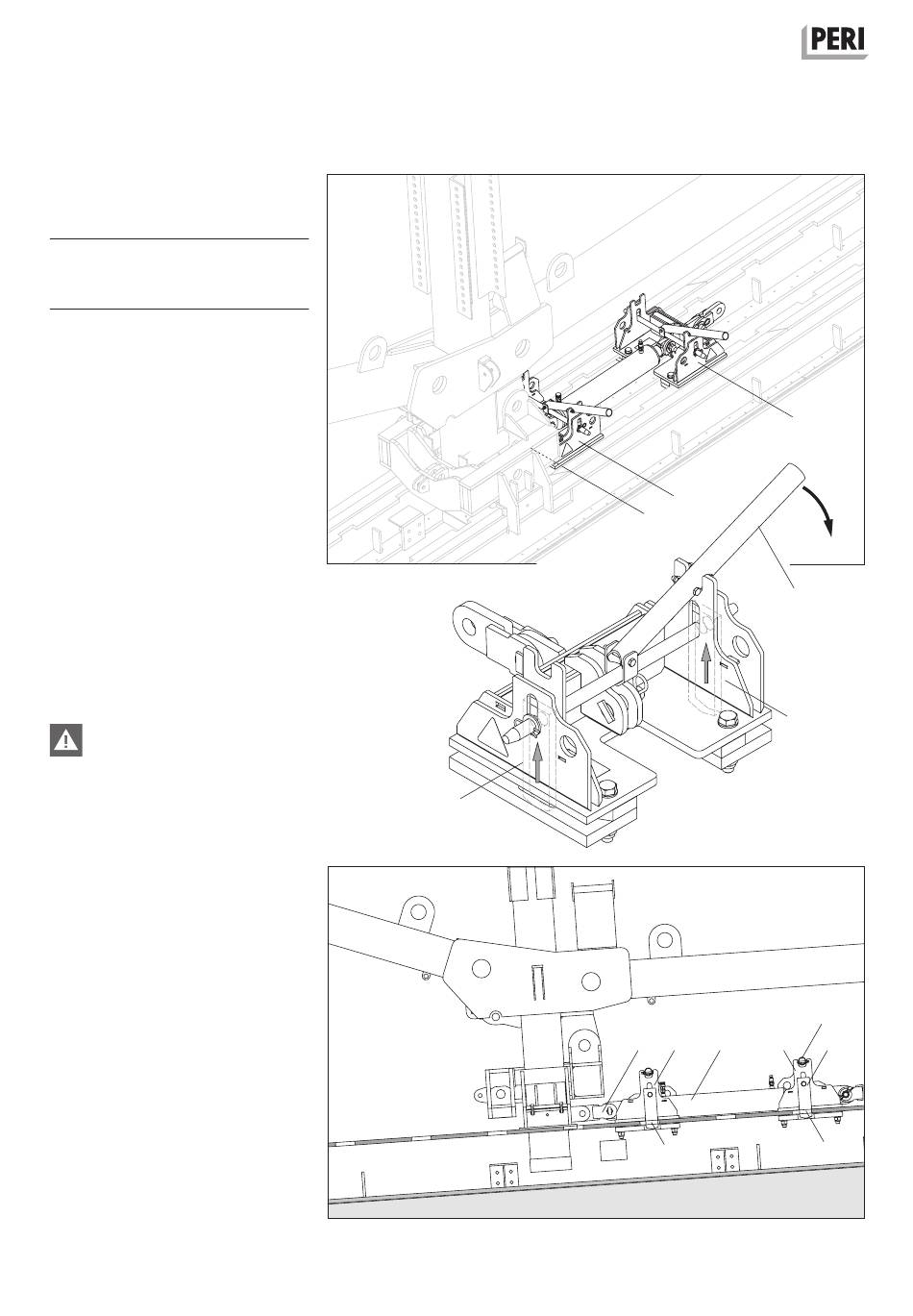

drive cylinder (3). (Fig. C1.01 + C1.02)
The braking effect of the drive catch
heads is achieved by the locking plates
(21.1) locking into place in the rail.
With the release lever (21.2) the locking
plates are lifted out, thereby releasing
the brake. (Fig. C1.01a)
Warning
Incorrect operation or hydraulic damage
can cause unforeseen machine
movements.
As a result, body parts could become
trapped and crushed.
⇒ Keep clear of the machine when op-
erating the hydraulic cylinder and
only use the release lever.
⇒ Keep all body parts away from under
the rail.
⇒ Only operating personnel are allowed
to remain in the danger zone.
