B5 Rear carriage

Deactivating the rear carriage

→ The carriage is in drive mode.
→ The carriage is centred over the an-
choring and hold-down brackets.
Force progression in drive mode
See "Step 4" on page 48.
Step 1
1. Loosen the main tie nut (63) in order
to create space. In this position, the
main anchor tie nut (63) has no sup-
porting function.
2. Position the auxiliary tie nuts (61a) on
the rear cylinder head (27), do not
tighten.
(Fig. B5.05)
Step 2
1. Extend the rear main cylinder (4)
approx. 50 mm.
→ The rear carriage tube (25) is
pressed downwards with the rear
carriage rocker (26) against the lift-
ing force.
→ Cantilever frame moves upwards
accordingly.
→ The rear carriage is in a load-trans-
fer state.
2. Screw down the auxiliary anchor tie
nuts (61b) until they rest against the
main frame chord (23).
→ The rear carriage rocker (26) is se-
cured in the bottom position.
(Fig. B5.05)
Force progression in a load-transfer
state
See "Step 2" on page 46.
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
Assembly Instructions
25
26

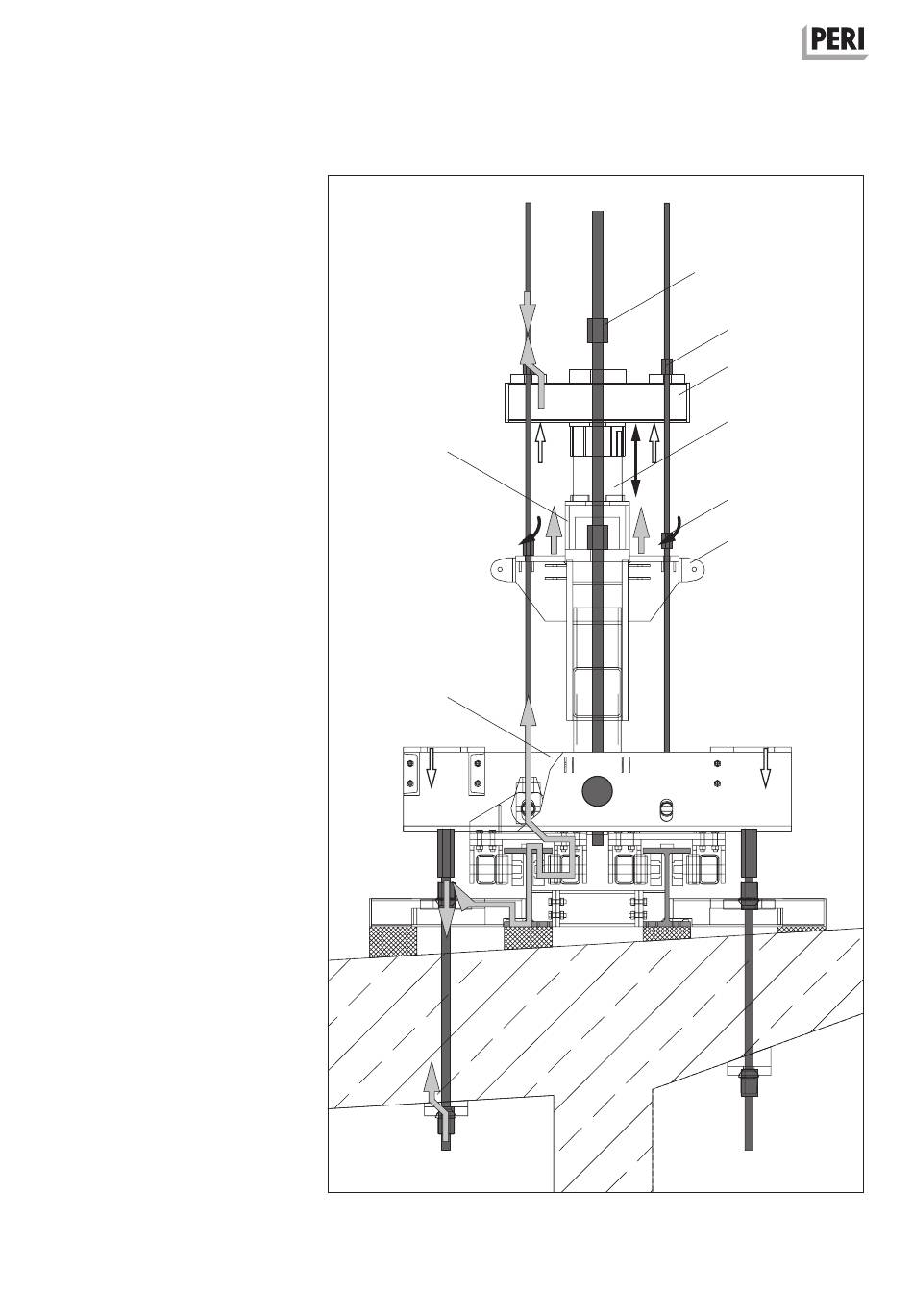

Fig. B5.05
63
61a
27
4
61b
23
