C2 Pushing the rail forward
→ The locking plate (21.1) of the drive
catch head (21B) drops into the
next section (8.1) of the rail.
6. Stop the drive cylinder from retract-
ing any further.
(Fig. C2.08)
7 . Repeat steps 1 and 6 until the rail
has reached its designated position.
End position and anchoring points are
found in the project-specific planning.

Subsequent work

1. Lower the front carriage until the rail
rests on the structure, see Section
"B4 Front carriage" on page 40.
2. Lower the rear main cylinder carriage
until the rail rests on the structure,
see Section "B5 Rear carriage" on
page 44.
3. Align the rails parallel to each other.
4. Turn the rear hold-down bracket to
the rail and tighten the domed nut.
5. Turn the front hold-down bracket to
the rail and tighten with the domed
nut on the anchor tie rod.
→ The rail is anchored.
60

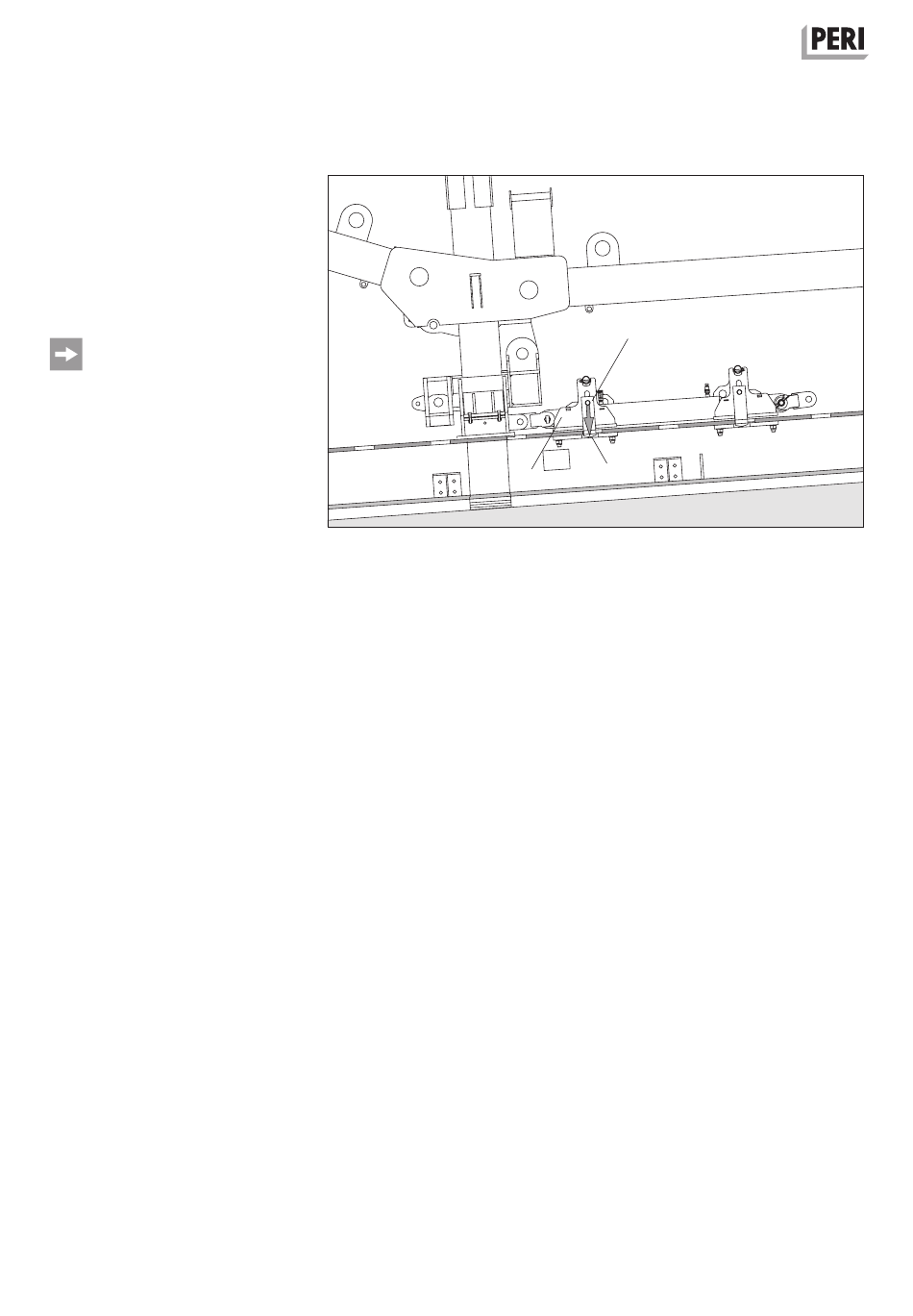

Fig. C2.08
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
21.1
8.1
21B
