B5 Rear carriage
Step 3
1. Screw the hexagonal coupler (64)
onto the bottom anchor tie rods (52a)
up to the middle of the coupler.
2. Insert top anchor tie rods (52b)
through the rear carriage rocker (26)
and screw firmly into the hexagonal
coupler.
■
The tie rod must be screwed in up to
the middle of the coupler.
■
Take markings for the screw-in depth
into consideration!
3. Tighten the top domed nuts (62) on
the top anchor tie rod until the
domed nuts rest against the rear car-
riage rocker (26).
(Fig. B5.06)
50

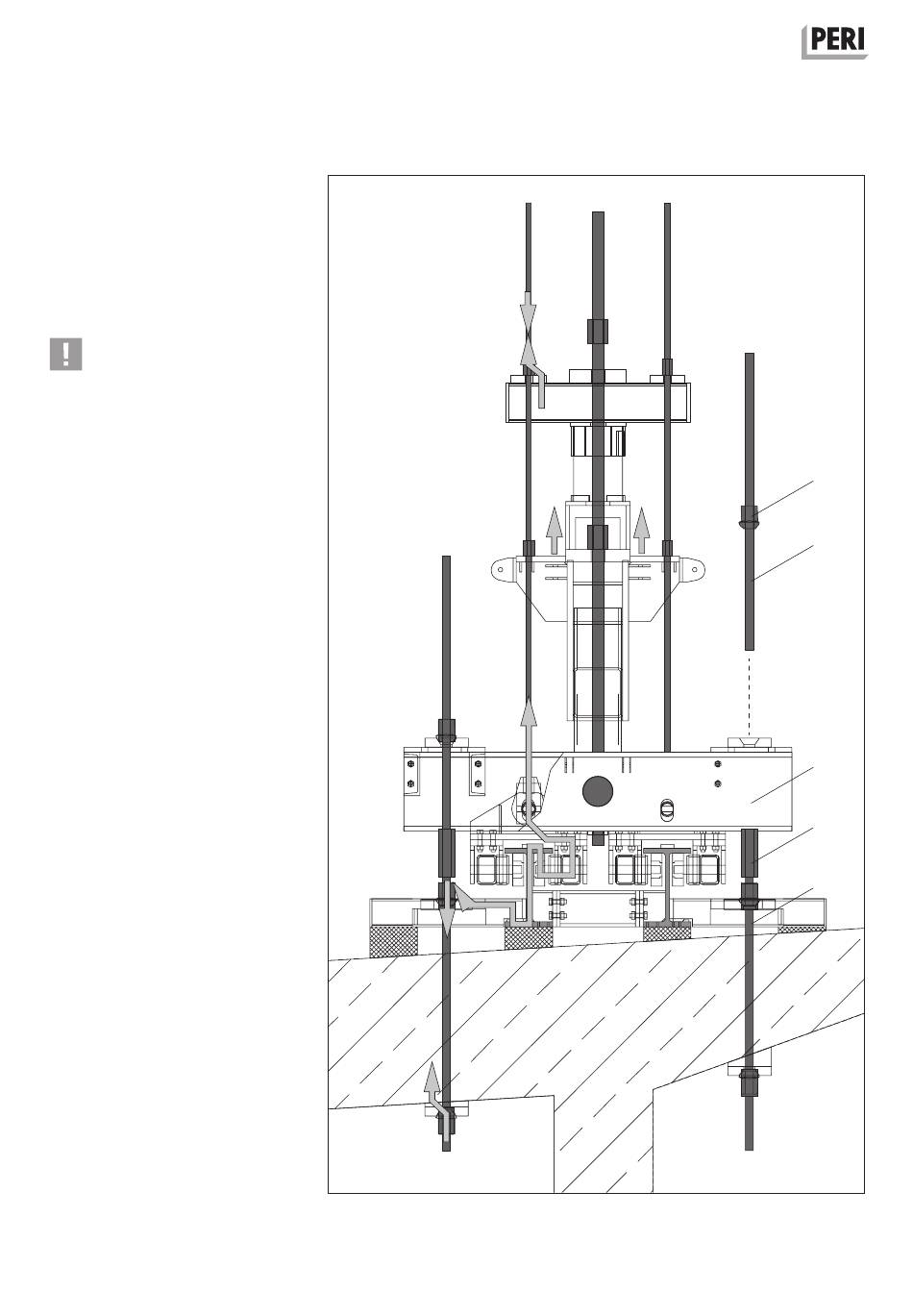

Fig. B5.06
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
62
52b
26
64
52a
