C2 Pushing the rail forward
3. On the front carriage, release the
hold-down bracket from the rail. For
this, loosen the domed nut on the
anchor tie rod and turn the hold-
down bracket to the side.
4. Raise the front carriage. To do this,
retract the front main cylinder (2),
thereby pulling the shoe side guide
(37) of the front carriage (31) up
against the rail from below.
→ The rail is raised.
→ The rail is now in feed mode.

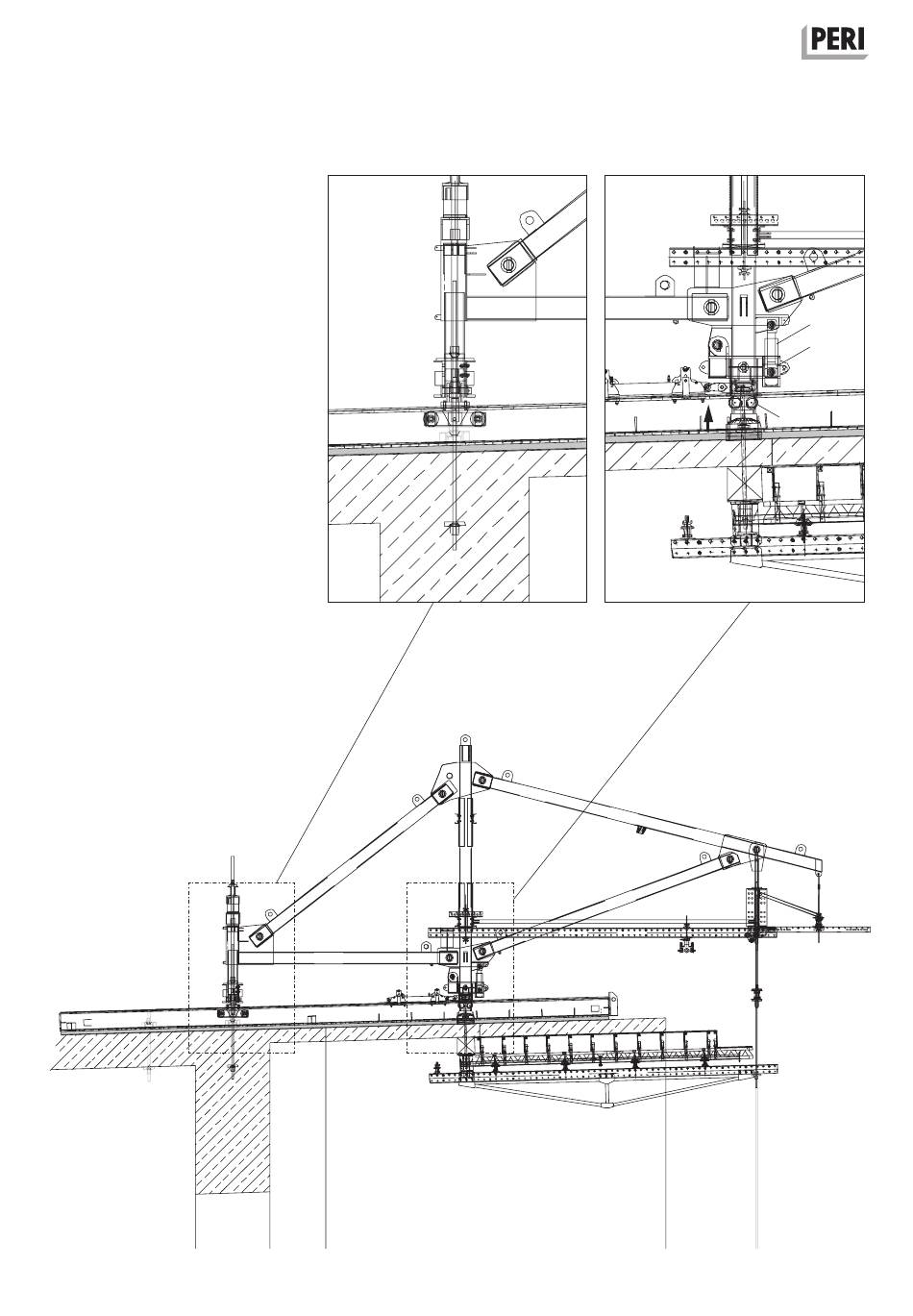

(Fig. C2.02)
Fig. C2.03
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
Assembly Instructions
Fig. C2.01 Fig. C2.02
2
31
37
57
