B3 Bottom slab formwork

General information

Warning
Incorrect operation or hydraulic damage
can cause unforeseen movements of
the components.
As a result, body parts could become
trapped and crushed.
⇒ While the tie nut is being screwed
in, no other work is to be carried out
on the machine.
⇒ Do not change the switch status of
the hydraulic system.
⇒ Do not place hands between clamp-
ing points.
For the lifting and lowering procedure,
one person is required per lifting and
lowering cylinder.
Lowering the bottom slab
formwork
Components
5 Lifting and Lowering Cylinder VBC 2
80
10 Cylinder Table VBC
33 Lifting Shim VBC 20
34 Lifting Jack Bracket VBC
35 Lifting Counterplate VBC
61 Tie nut straight
Undoing anchoring
Release the anchoring for the bottom
slab formwork according to project-spe-
cific documentation.

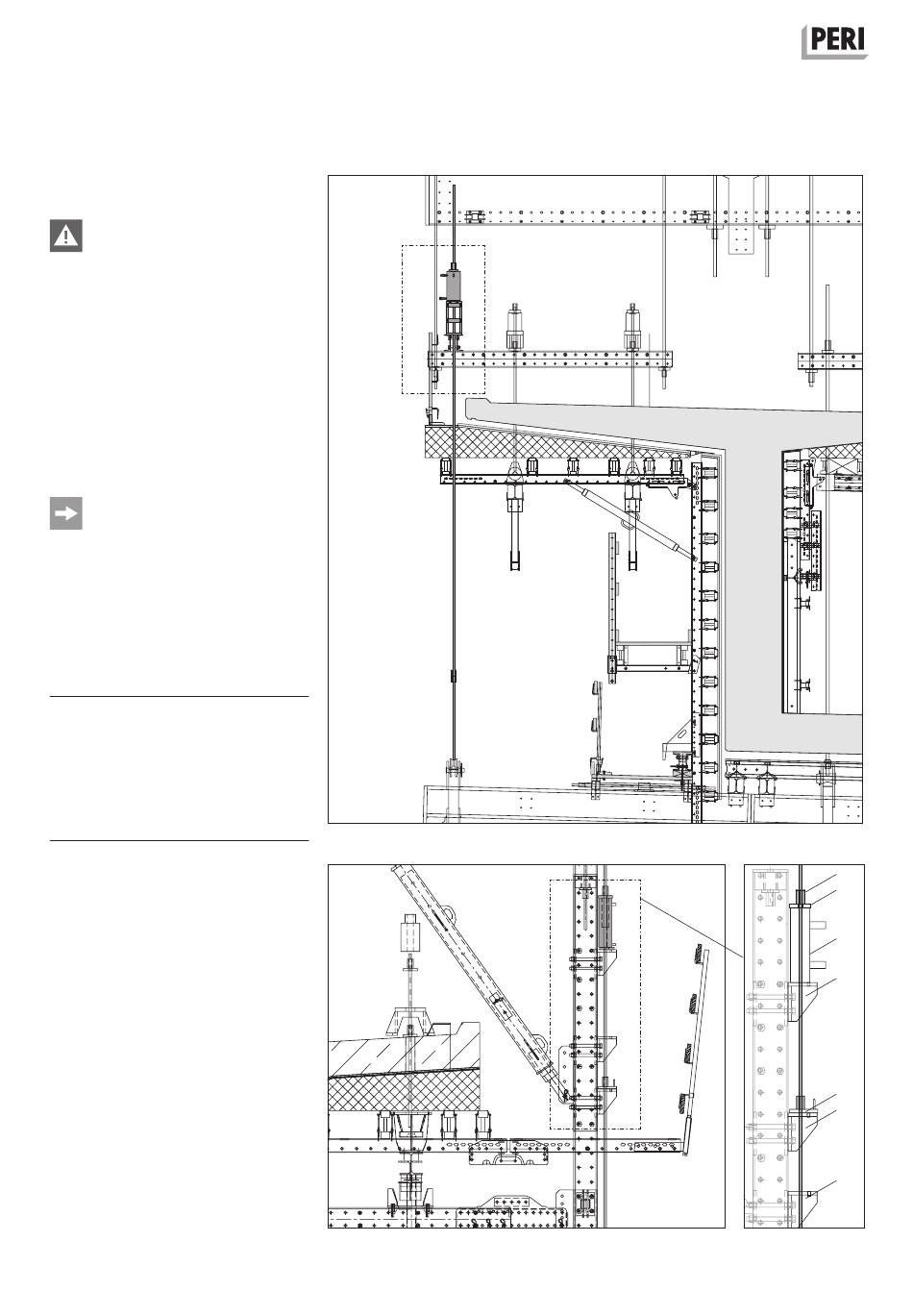

The position of the lifting and lowering
cylinder can differ from project to proj-
ect. However, the lifting and lowering
procedure is carried out in the same
way. (Fig. B3.01 + B3.02)
36
Fig. B3.01
Fig. B3.02
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
61
35
5
34
33
34
34
Assembly Instructions
