B3 Bottom slab formwork
Raising the bottom slab
formwork
Components
5 Lifting and Lowering Cylinder
VBC 280
10 Cylinder Table VBC
35 Lifting Counterplate VBC
61 Tie nut straight
■
Carry out the lifting procedure on all
4 suspensions at the same time.
■
Maintain constant contact with the
operator of the hydraulic unit during
the lifting process.
Lifting process
1. Completely extend the lifting and
lowering cylinder (5).
→ The suspension unit is raised.
2. Completely lower the bottom tie nut
(61b) onto the lifting counterplate
(35b).
3. Completely retract the lifting and
lowering cylinder (5).
4. Completely screw down the top tie
nut (61a) onto the lifting counterplate
(35a).
5. Repeat steps 1 to 4 until the required
lowering dimension is reached.
(Fig. B3.03)
Mounting anchoring
Mount the anchoring for the bottom
slab formwork according to project-spe-
cific documentation.
38

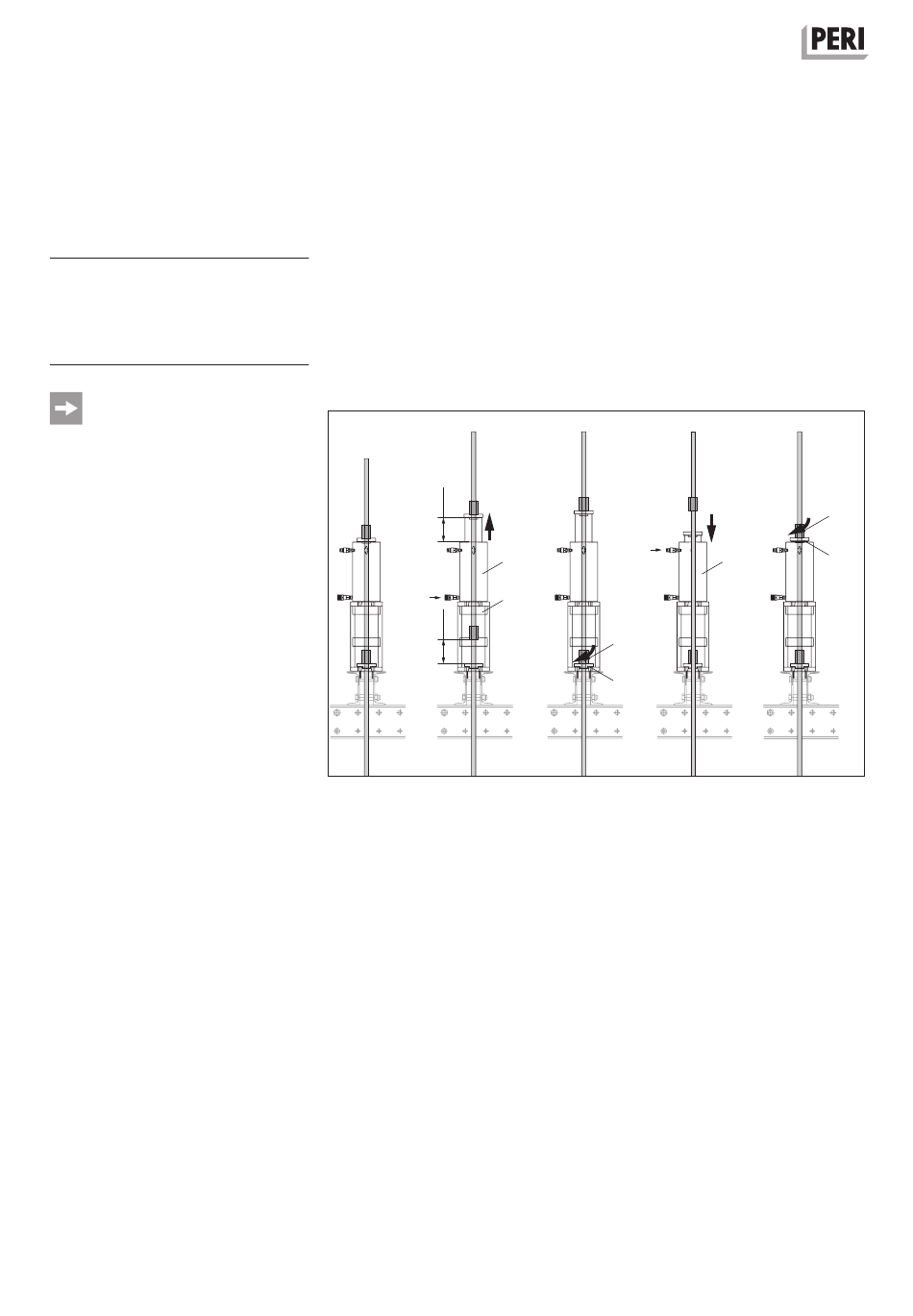

Fig. B3.03
VBC Balanced Cantilever Hydraulic System – Hydraulic System and Standard Cycle
